System Diagram

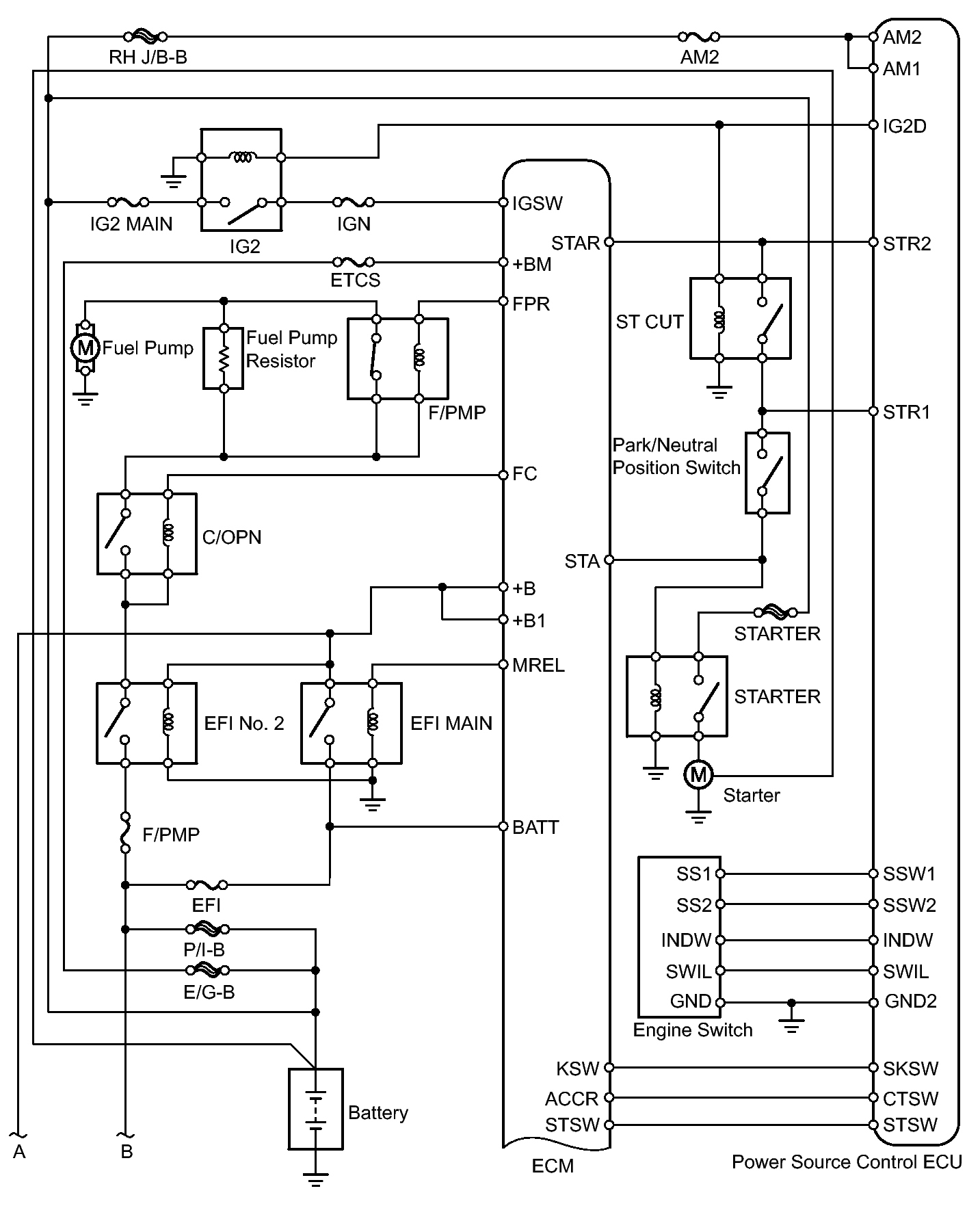

Fig 1: Identifying SFI System Diagram (1 Of 6)
GTY276422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

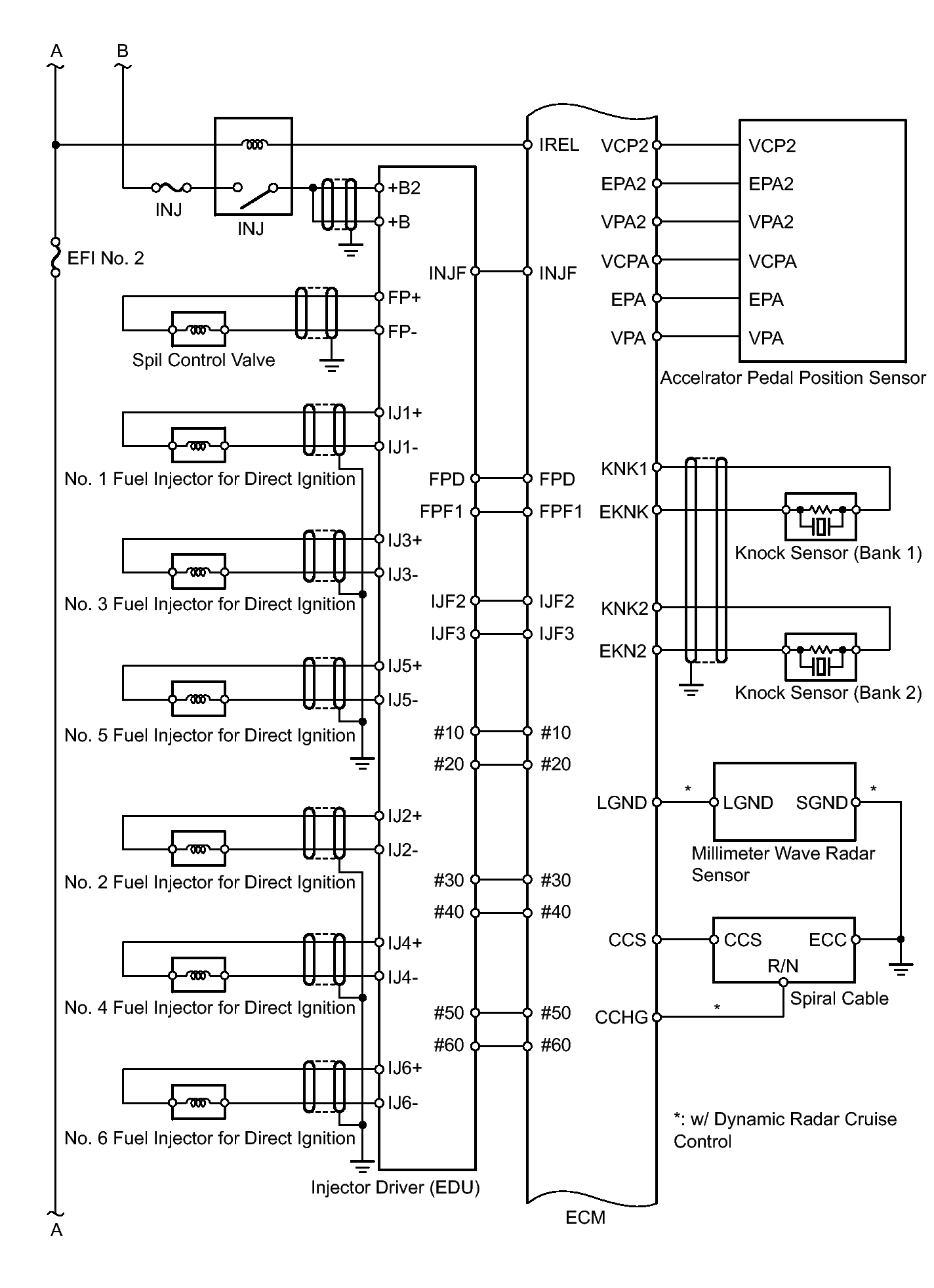

Fig 2: Identifying SFI System Diagram (2 Of 6)
GTY257267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

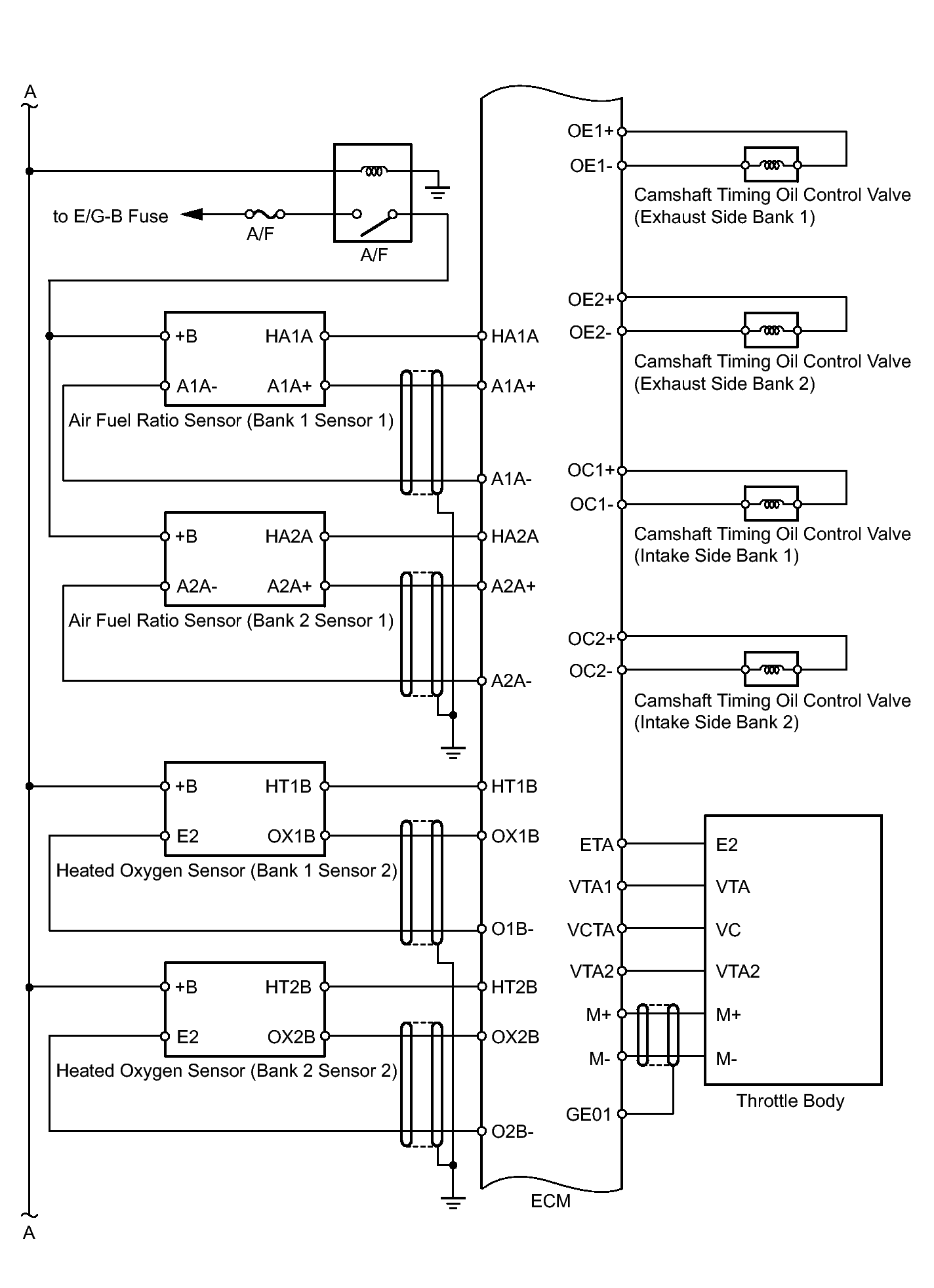

Fig 3: Identifying SFI System Diagram (3 Of 6)
GTY266915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

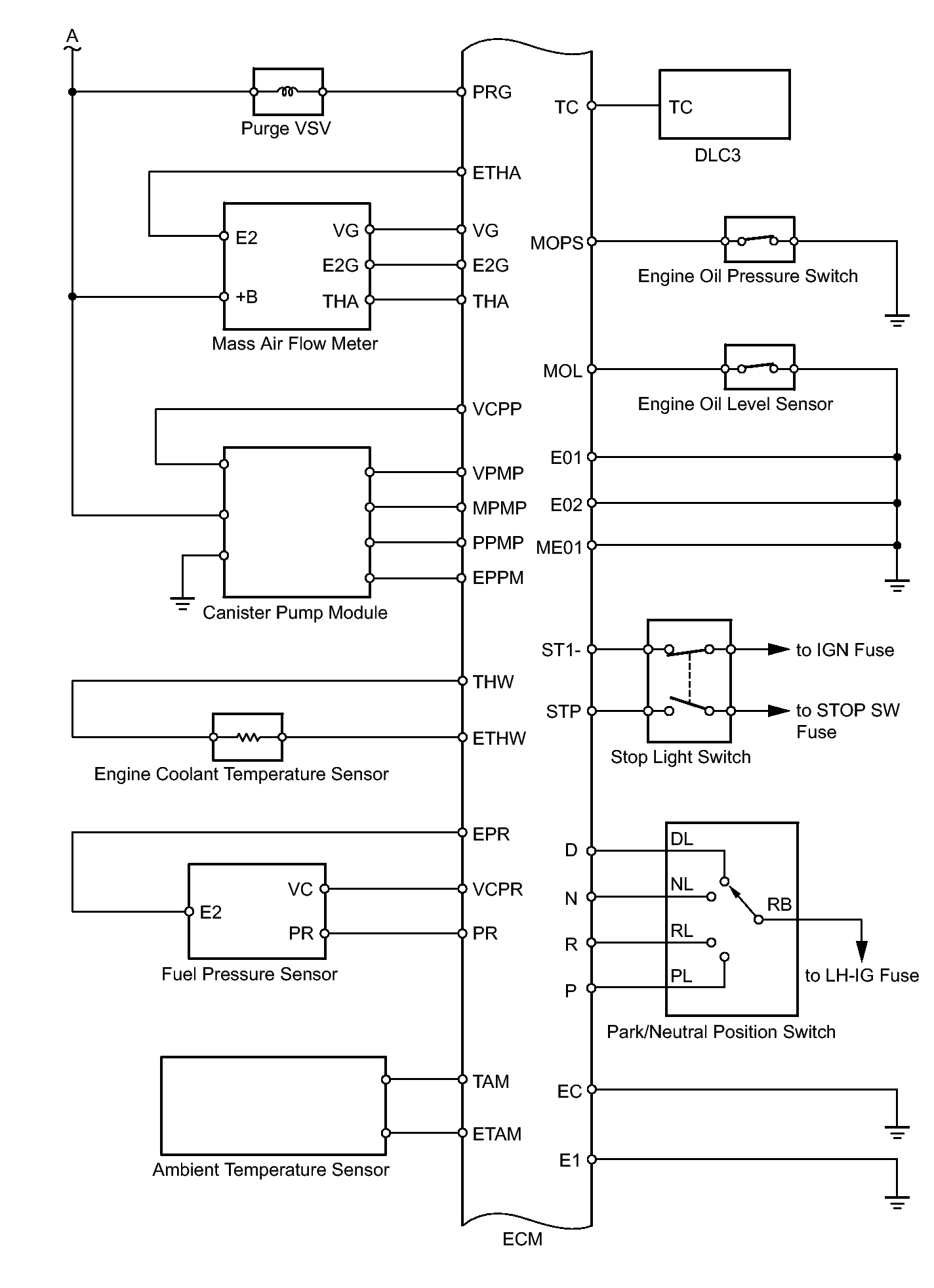

Fig 4: Identifying SFI System Diagram (4 Of 6)
GTY274177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

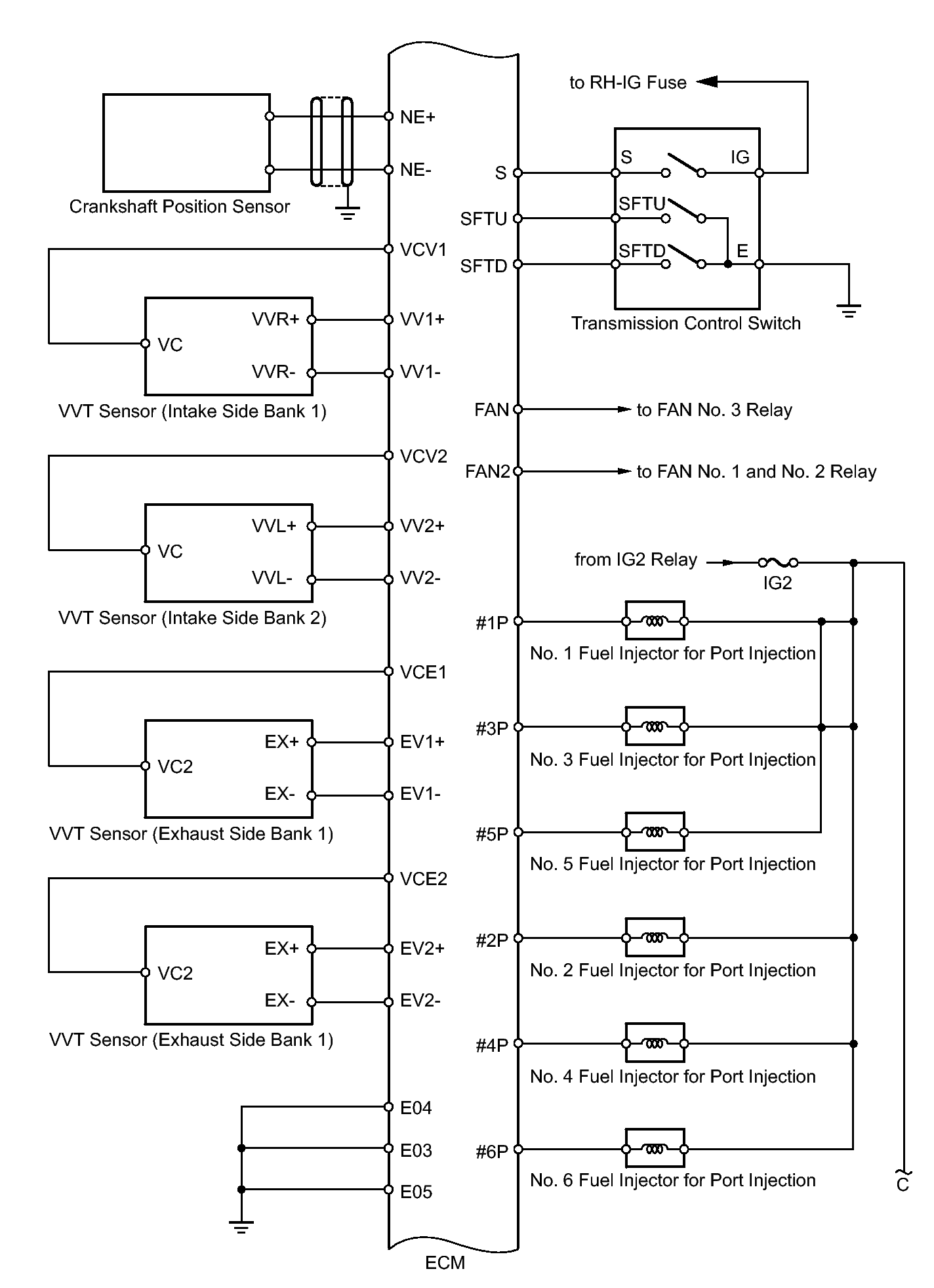

Fig 5: Identifying SFI System Diagram (5 Of 6)
GTY287856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

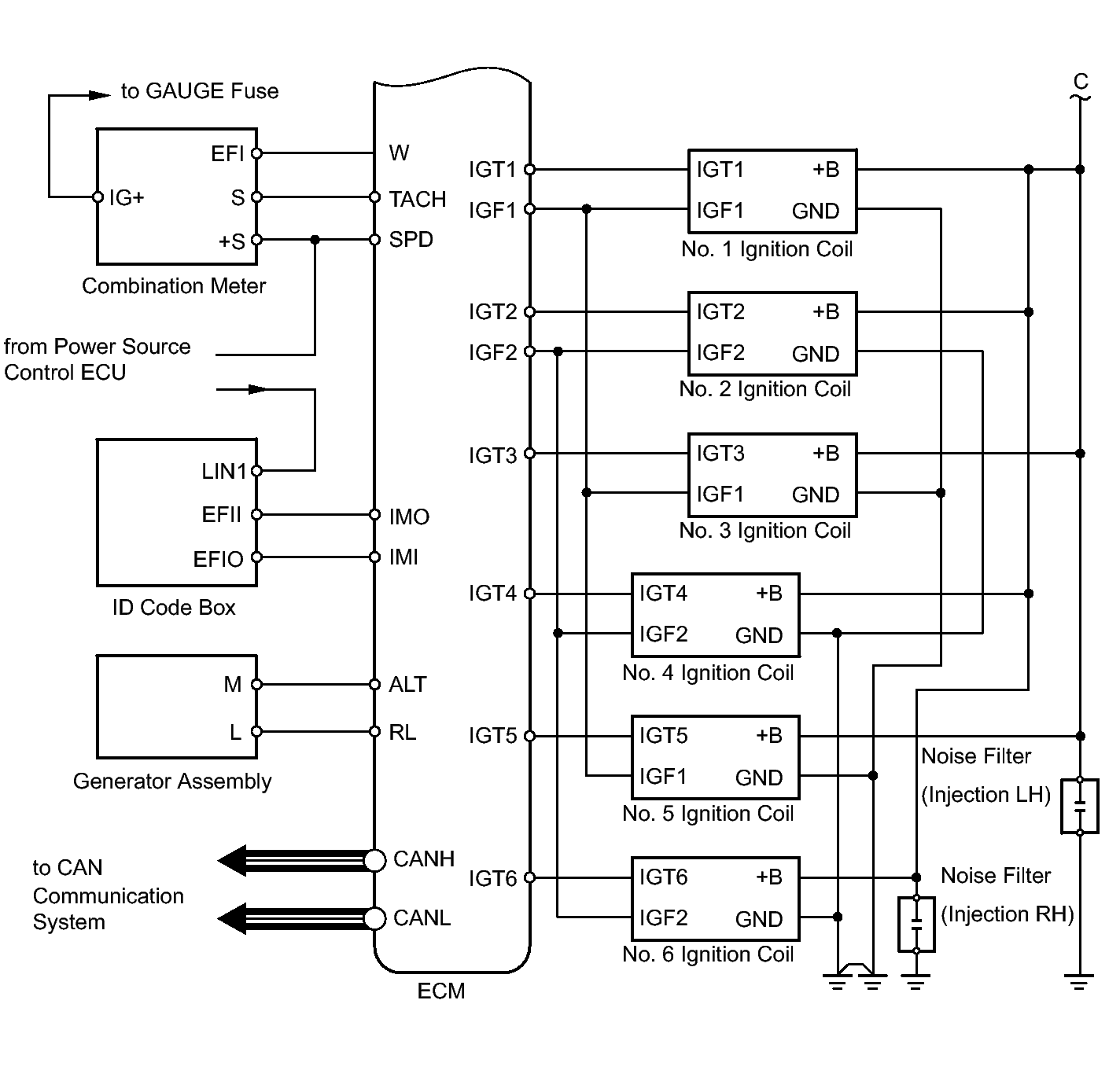

Fig 6: Identifying SFI System Diagram (6 Of 6)
GTY275162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
