Accelerator Pedal: Removal: Removal

WARNING: This page is about a different car, the 2010 Lexus GS 350. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE ACCELERATOR PEDAL

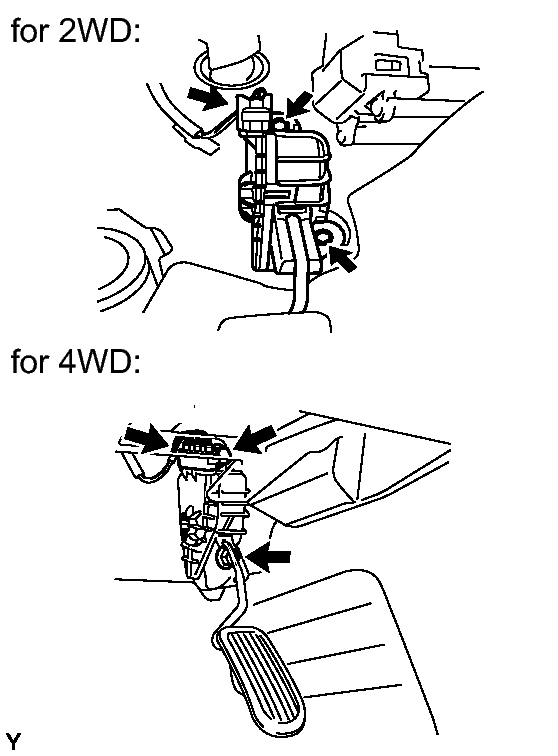

Fig 1: Identifying Accelerator Pedal Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the accelerator pedal position sensor connector.
2. Remove the 2 bolts and accelerator pedal.
  NOTE:
  - Avoid physical shock to the accelerator pedal.
  - Do not disassemble the accelerator pedal assembly.
