Front Power Seat Control (Diagnostics)
›
Front Power Seat Control System
›
Driver Side Seat Memory Switch Circuit
›
Wiring Diagram
Driver Side Seat Memory Switch Circuit: Wiring Diagram

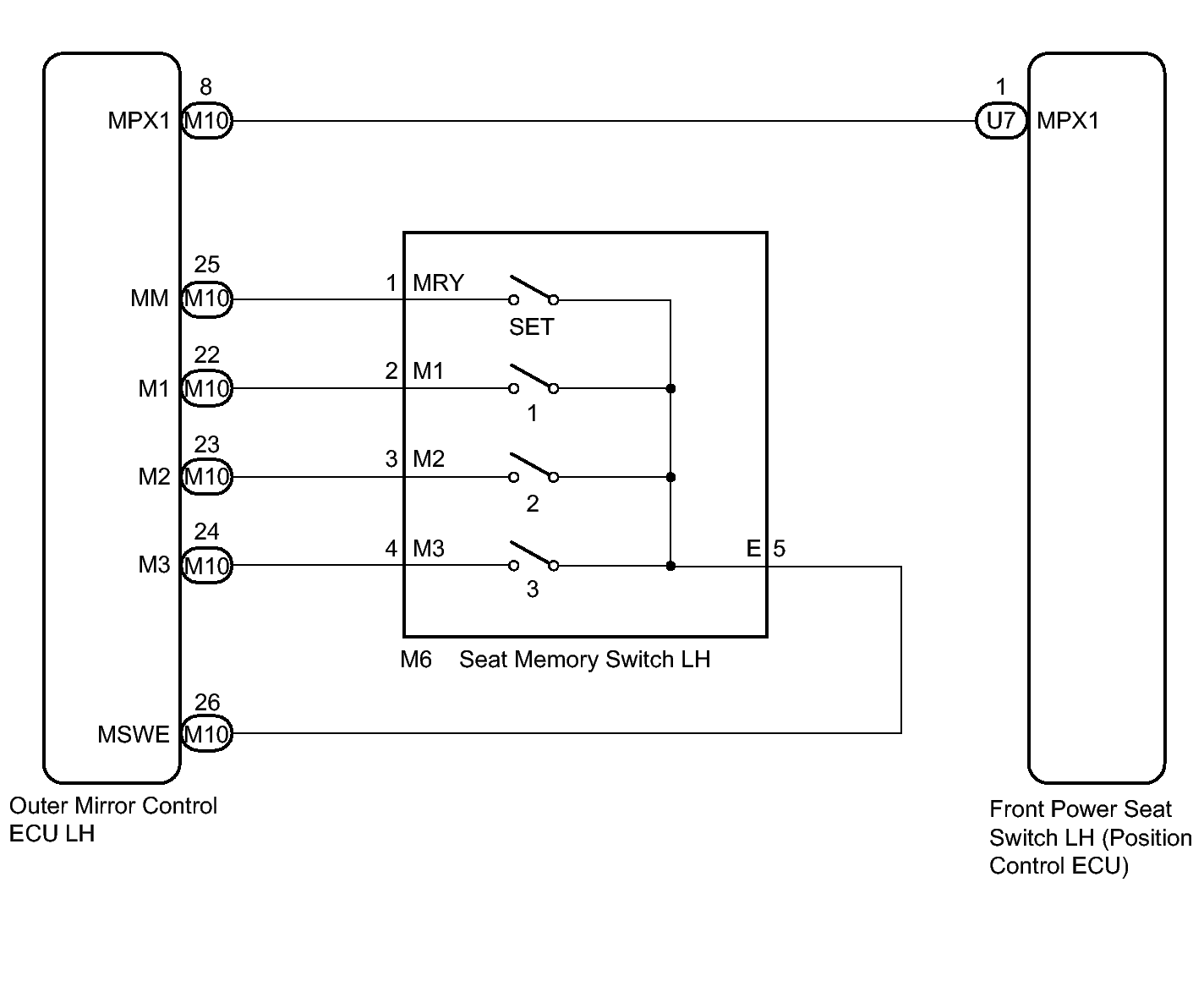

Fig 1: Driver Side Seat Memory Switch Wiring Diagram
