Front Power Seat Control (Diagnostics)
›
Front Power Seat Control System
›
Front Passenger Side ECU Power Source Circuit
›
Wiring Diagram
Front Passenger Side ECU Power Source Circuit: Wiring Diagram

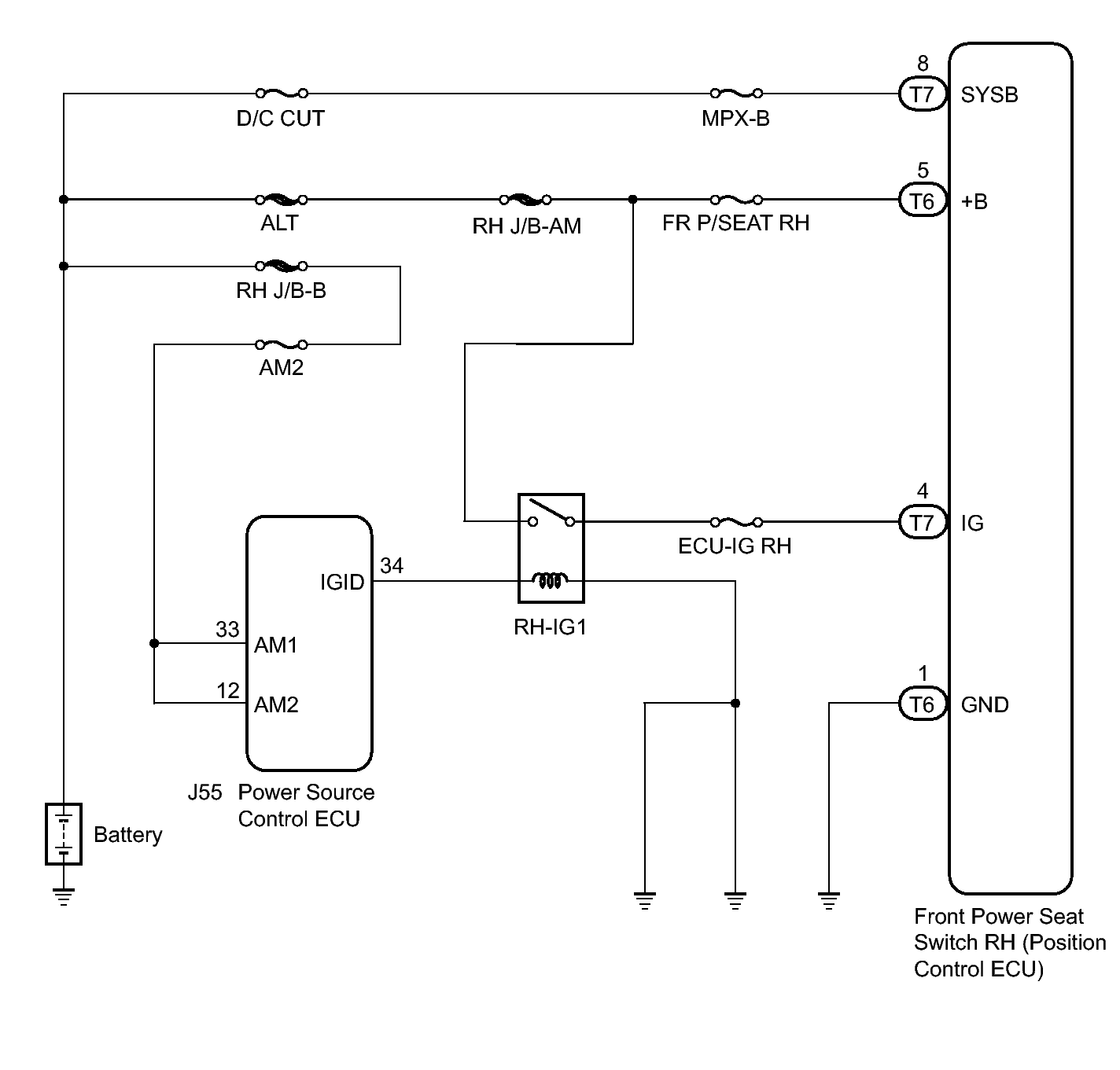

Fig 1: Front Passenger Side ECU Power Source Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
