Vehicle Stability Control System (Diagnostics - Introduction)
›
Vehicle Stability Control System
›
Parts Location
›
Illustration
Parts Location: Illustration
Fig 1: Identifying Vehicle Stability Control System Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

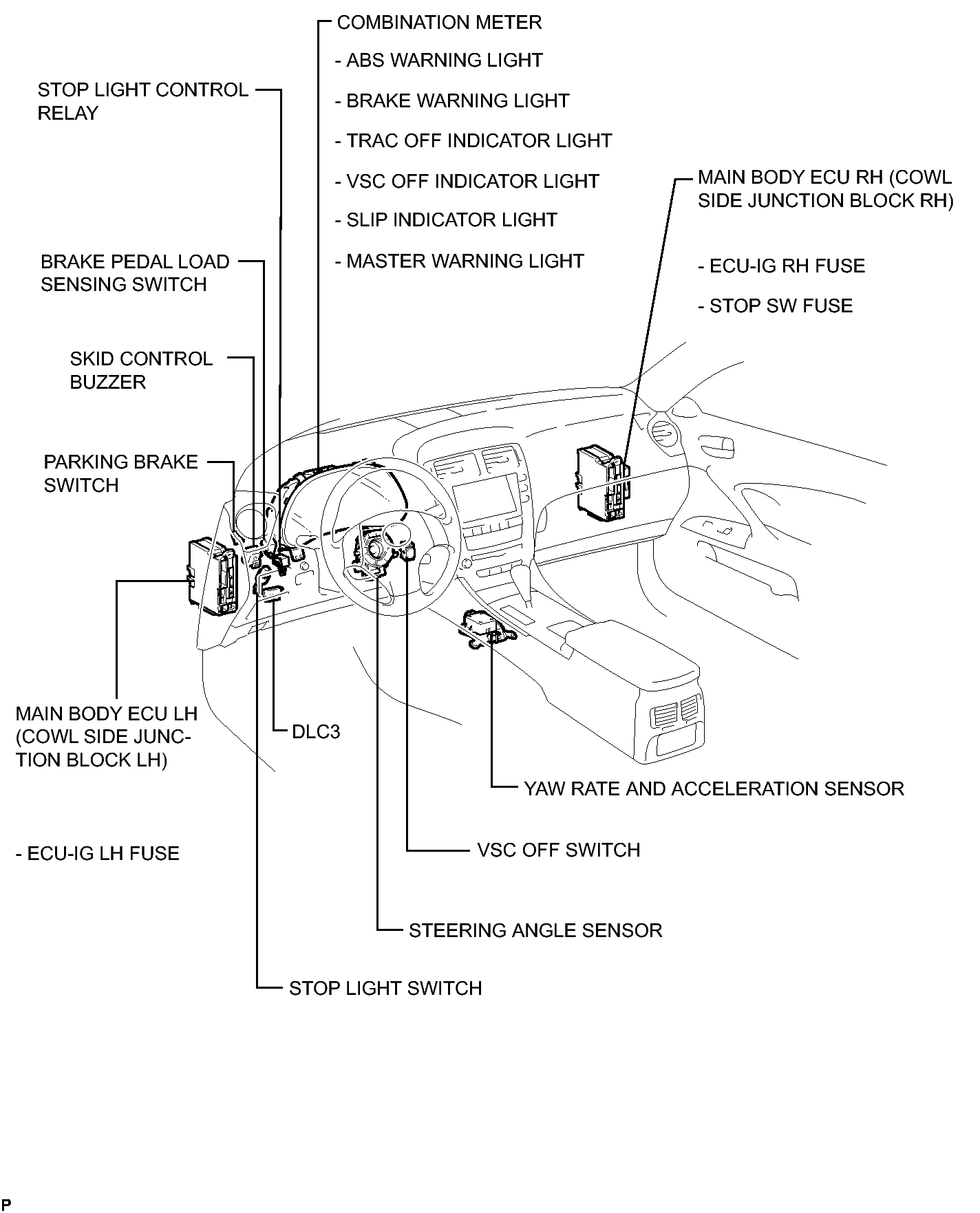

Fig 1: Identifying Vehicle Stability Control System Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
