Intake (Inspection)
›
Intake System
›
System Diagram
›
Wiring Diagram
System Diagram: Wiring Diagram

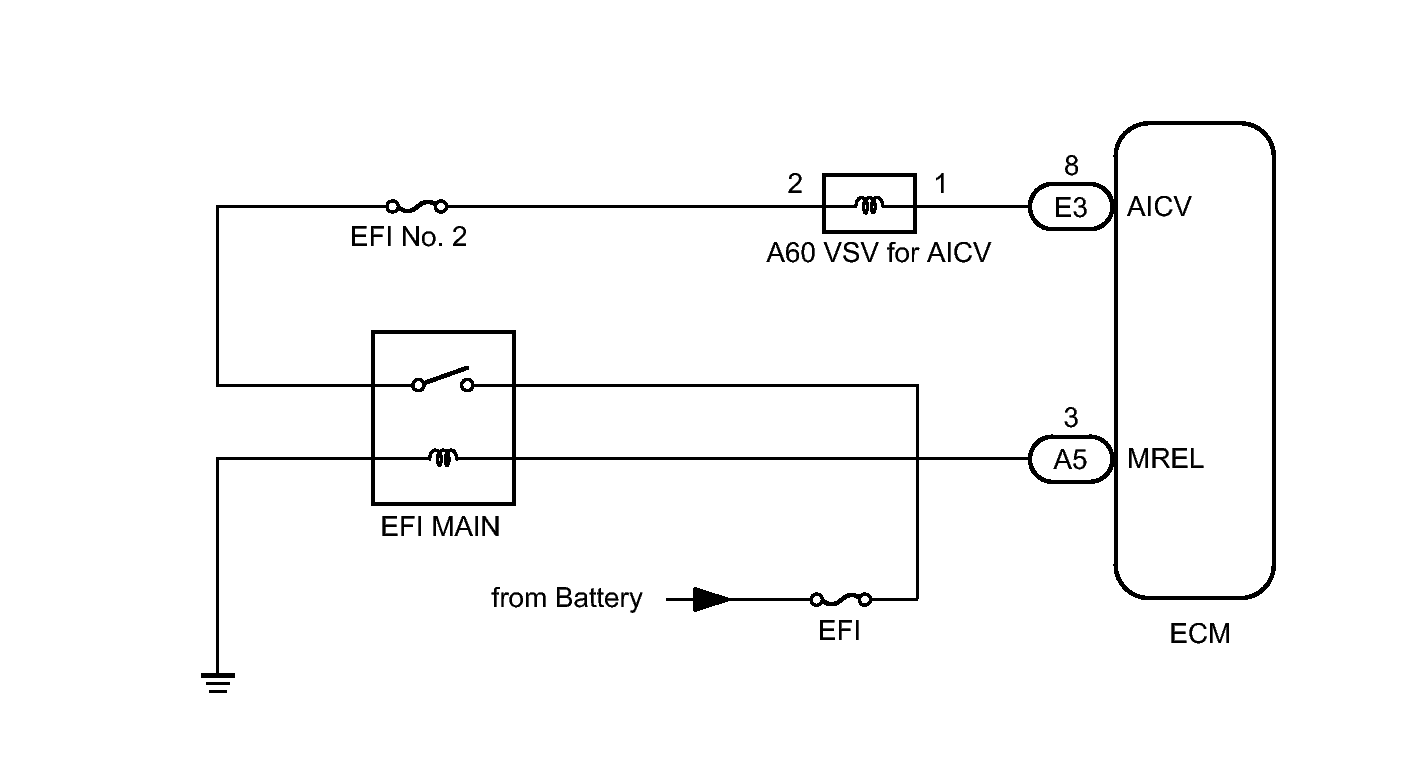

Fig 1: Intake System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
