Shift Lever: Disassembly: Disassembly

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE INDICATOR LIGHT WIRE SUB-ASSEMBLY
1. Remove the indicator light wire sub-assembly from the transmission floor shift assembly as shown in the illustration.

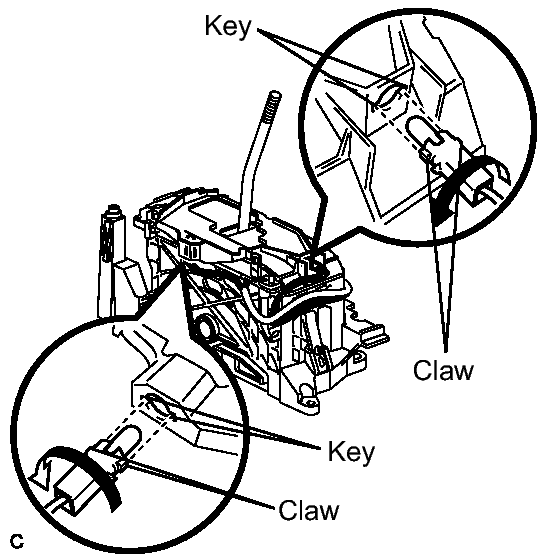

  Fig 1: Removing Indicator Light Wire Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the position indicator bulb from the indicator light wire.
3. Remove the position indicator bulb cap from the position indicator bulb.
4. Separate the transmission control switch connector.

  Fig 2: Locating Transmission Control Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Using a screwdriver, release the stopper.
  1. w/o Smart Key System

    Fig 3: Identifying Stopper (w/o Smart Key System)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/ Smart Key System

    Fig 4: Identifying Stopper (w/ Smart Key System)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Using a screwdriver, disengage the locking lug of terminals, and pull the terminals out from the rear.
  1. w/o Smart Key System

    Fig 5: Identifying Locking Lug Of Terminals (w/o Smart Key System)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/ Smart Key System

    Fig 6: Identifying Locking Lug Of Terminals (w/ Smart Key System)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LOCK CONTROL ECU SUB-ASSEMBLY
1. Disconnect the connector.

  Fig 7: Locating Shift Lock Control ECU Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, remove the shift lock control ECU sub-assembly.
