System Diagram

  1. MOST NETWORK COMMUNICATION LINE

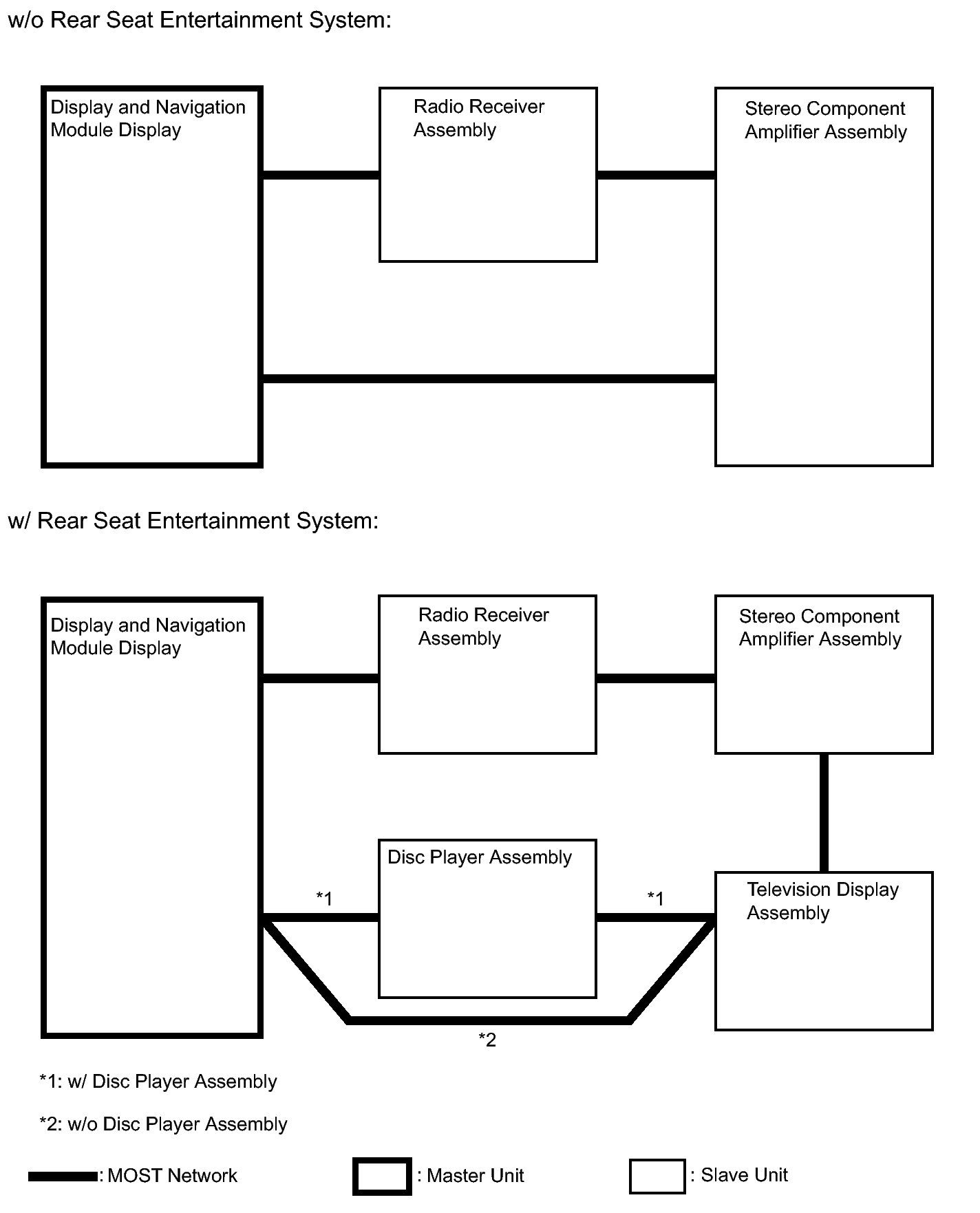

    Fig 1: Identifying Lexus Enform System Diagram (Most Network Communication Line)
    GTY277619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. OTHER

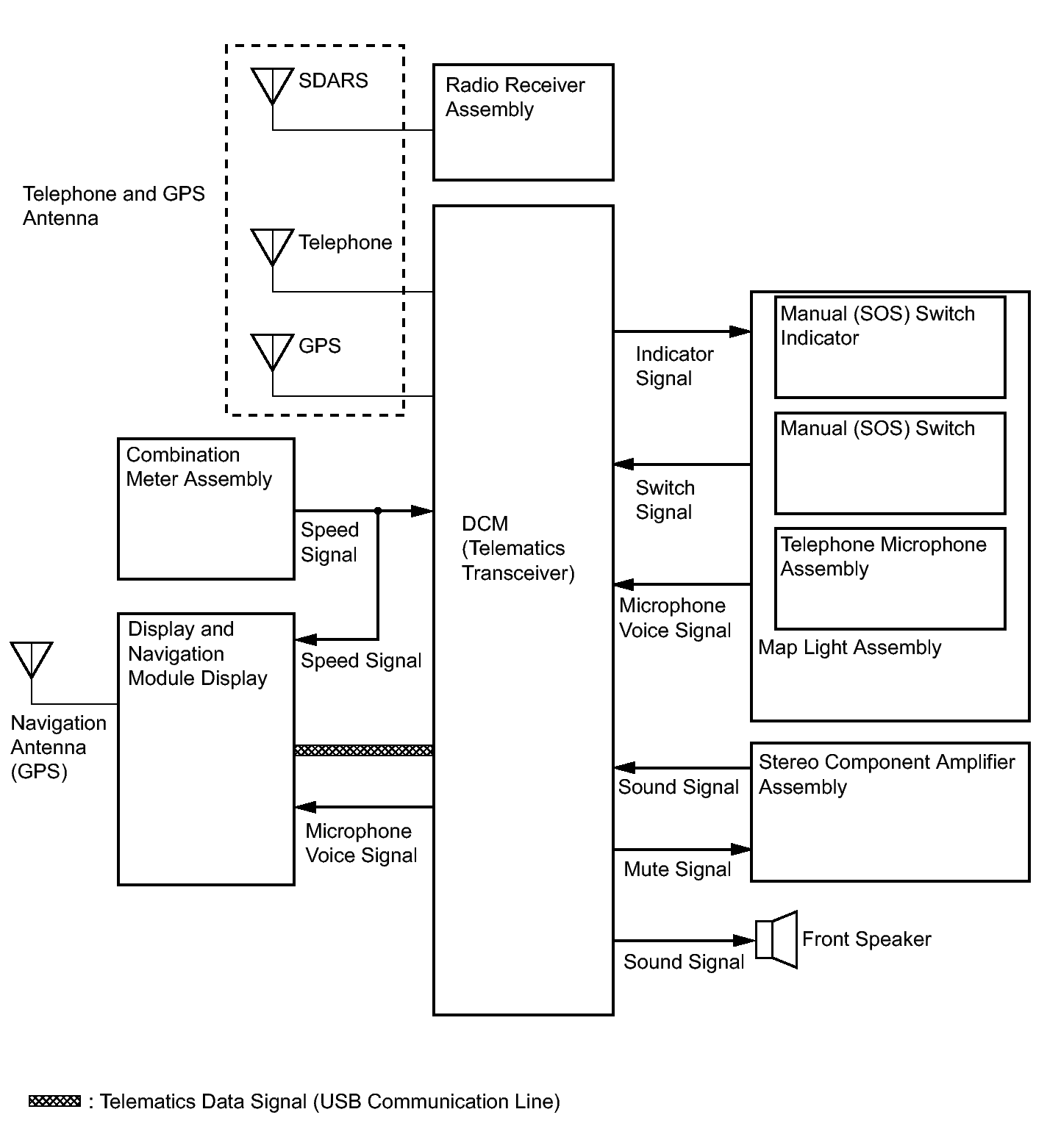

    Fig 2: Identifying Lexus Enform System Diagram (Other)
    GTY266822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
