Ground Point: Notes

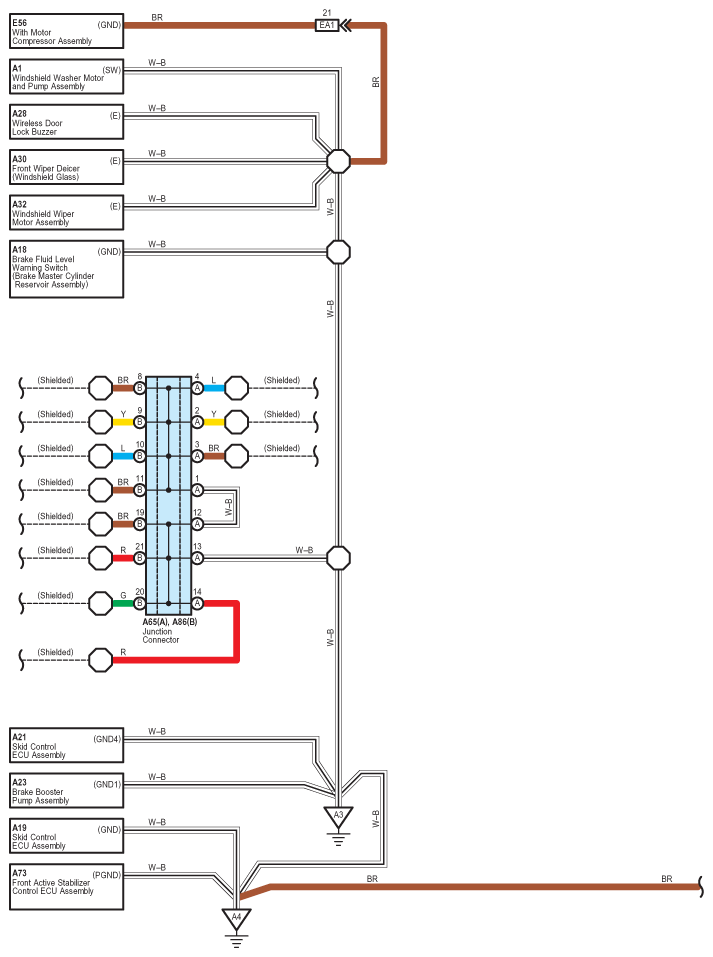

Fig 1: Ground Point - Circuit Diagram (1 Of 15)

G07569009

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

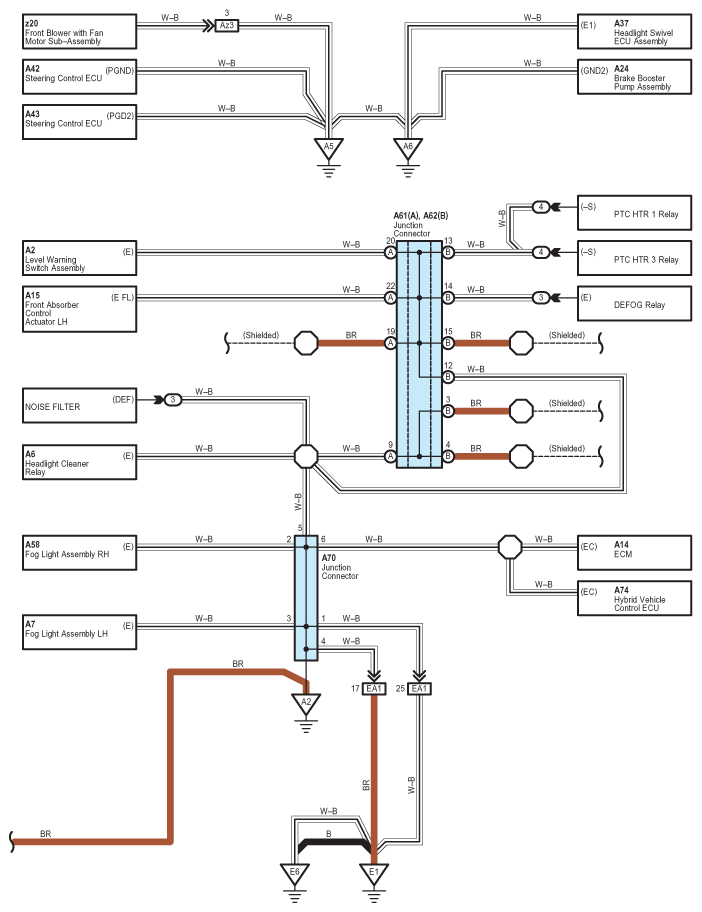

Fig 2: Ground Point - Circuit Diagram (2 Of 15)

G07569010

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

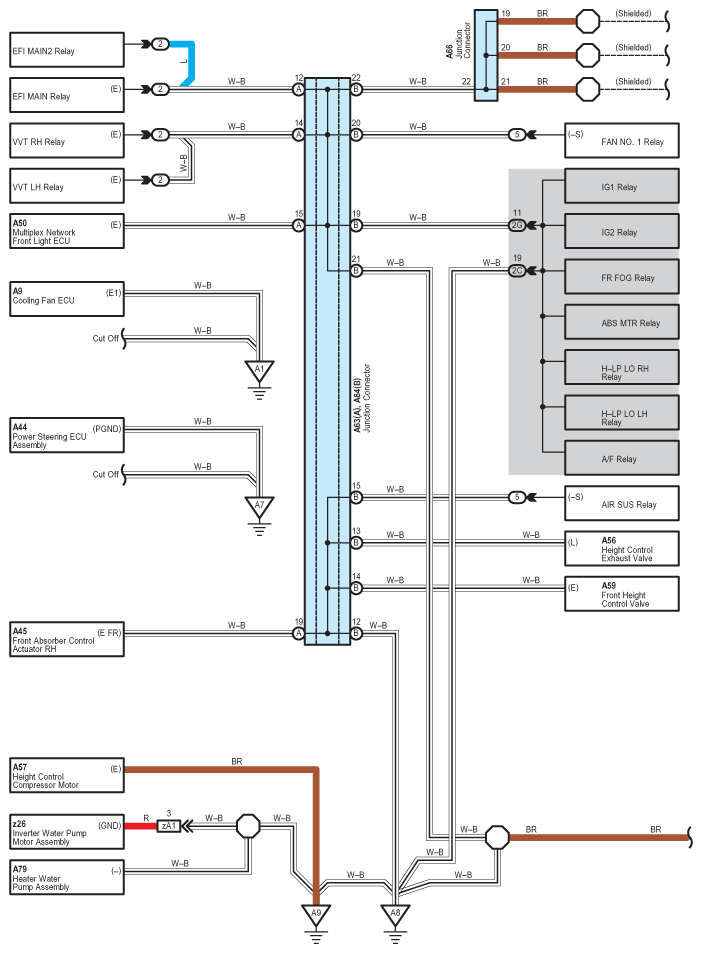

Fig 3: Ground Point - Circuit Diagram (3 Of 15)

G07569011

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

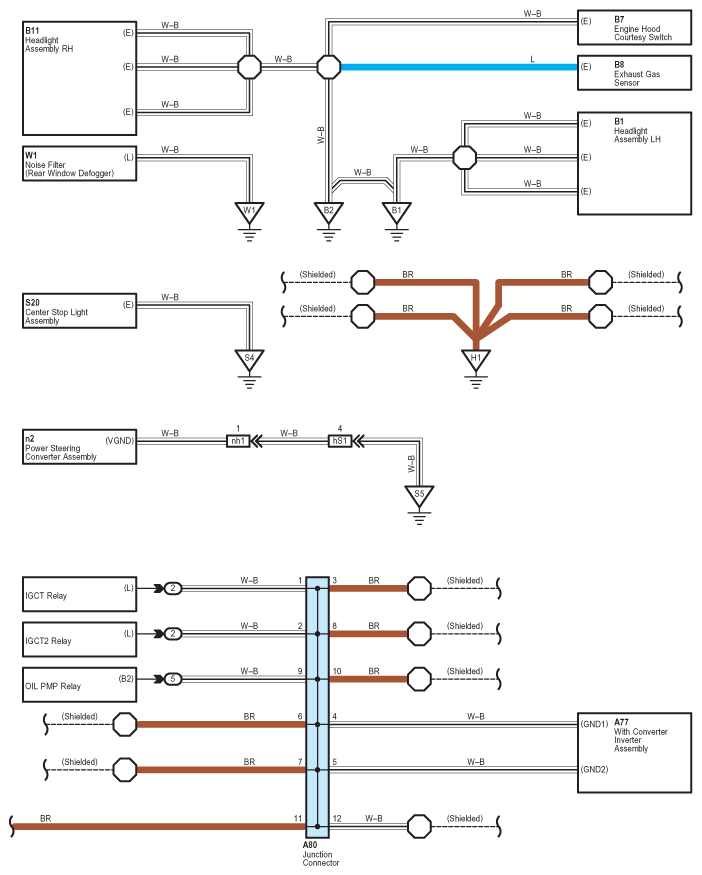

Fig 4: Ground Point - Circuit Diagram (4 Of 15)

G07569012

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

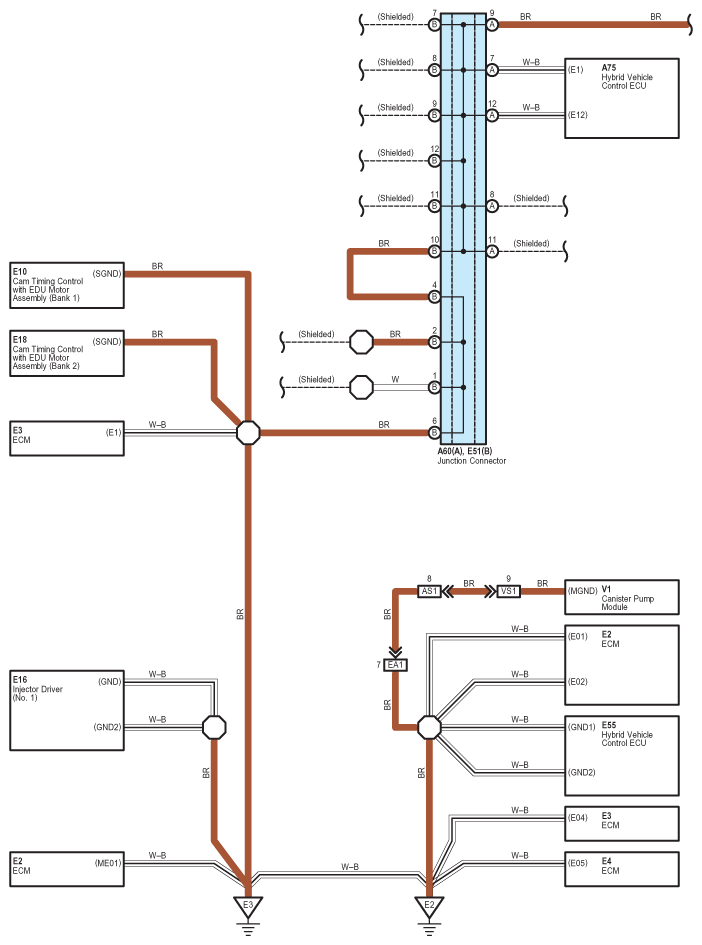

Fig 5: Ground Point - Circuit Diagram (5 Of 15)

G07569013

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

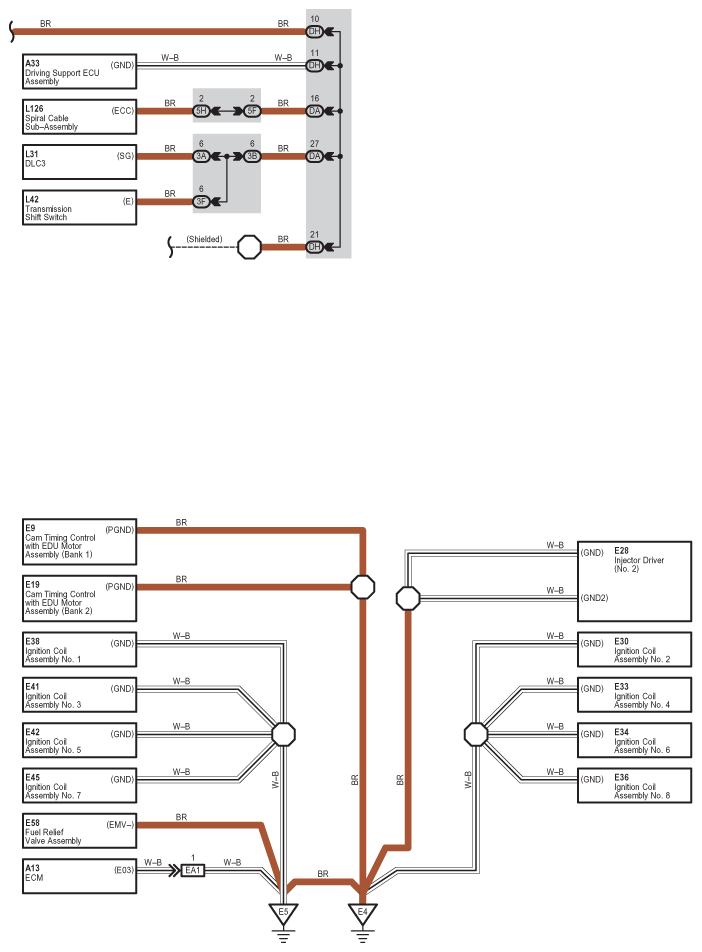

Fig 6: Ground Point - Circuit Diagram (6 Of 15)

G07569014

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

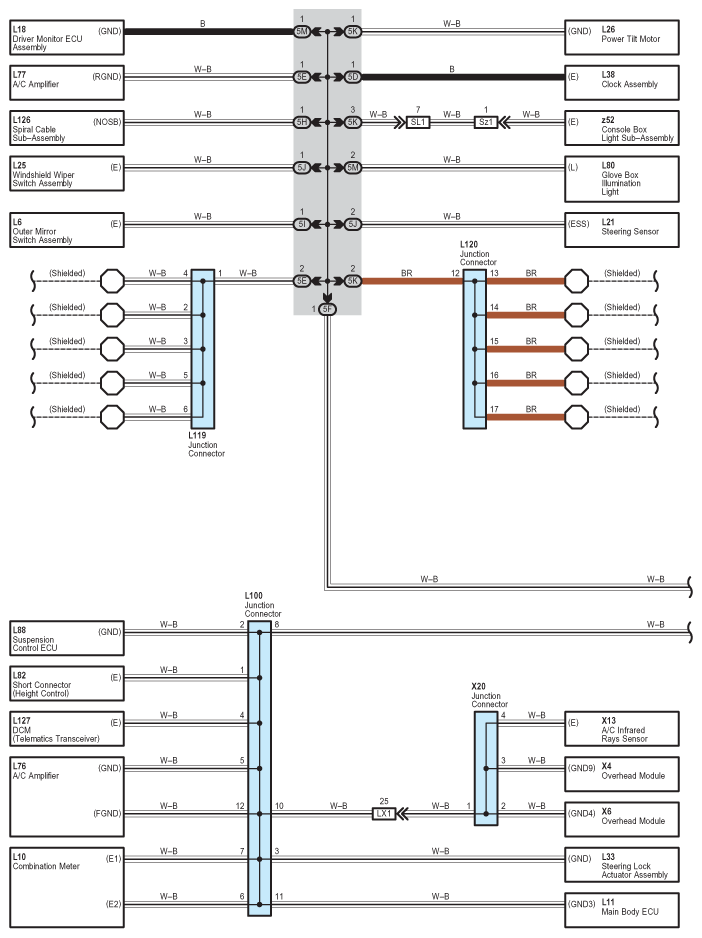

Fig 7: Ground Point - Circuit Diagram (7 Of 15)

G07569015

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

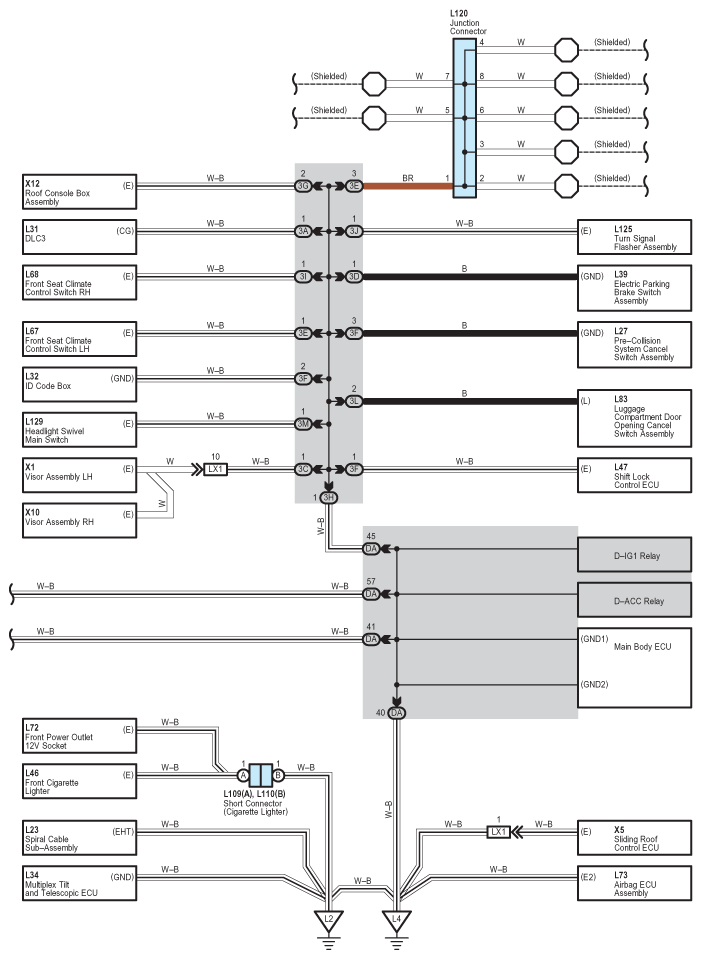

Fig 8: Ground Point - Circuit Diagram (8 Of 15)

G07569016

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

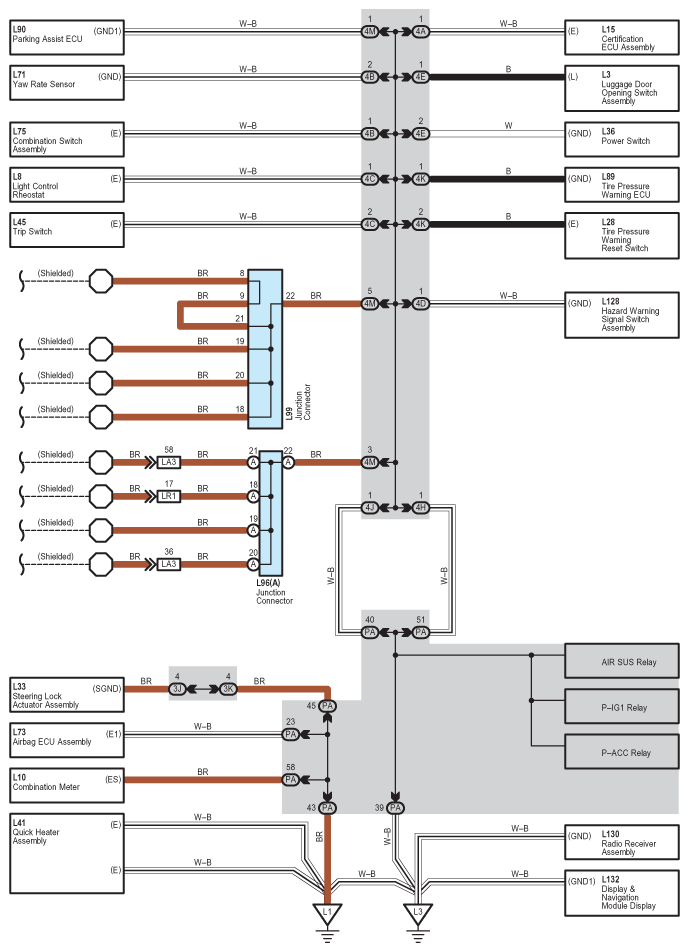

Fig 9: Ground Point - Circuit Diagram (9 Of 15)

G07569017

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

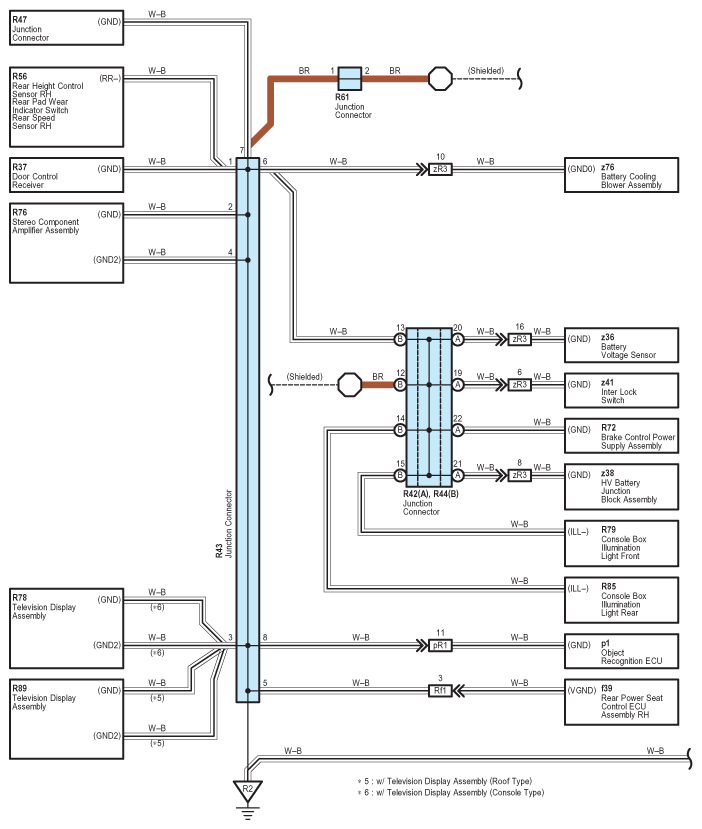

Fig 10: Ground Point - Circuit Diagram (10 Of 15)

G07569018

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

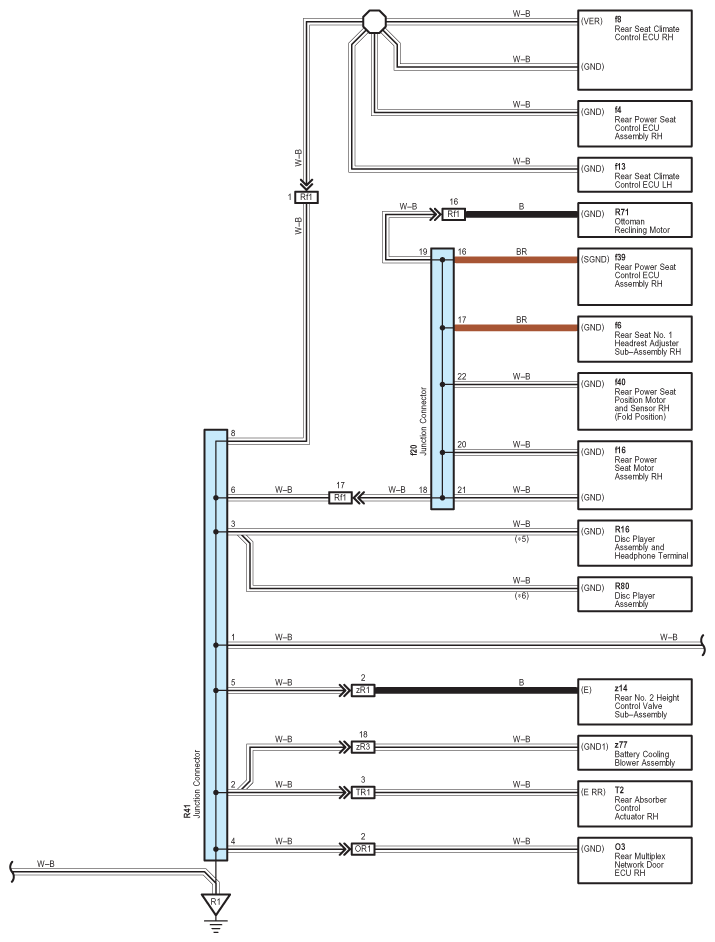

Fig 11: Ground Point - Circuit Diagram (11 Of 15)

G07569019

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

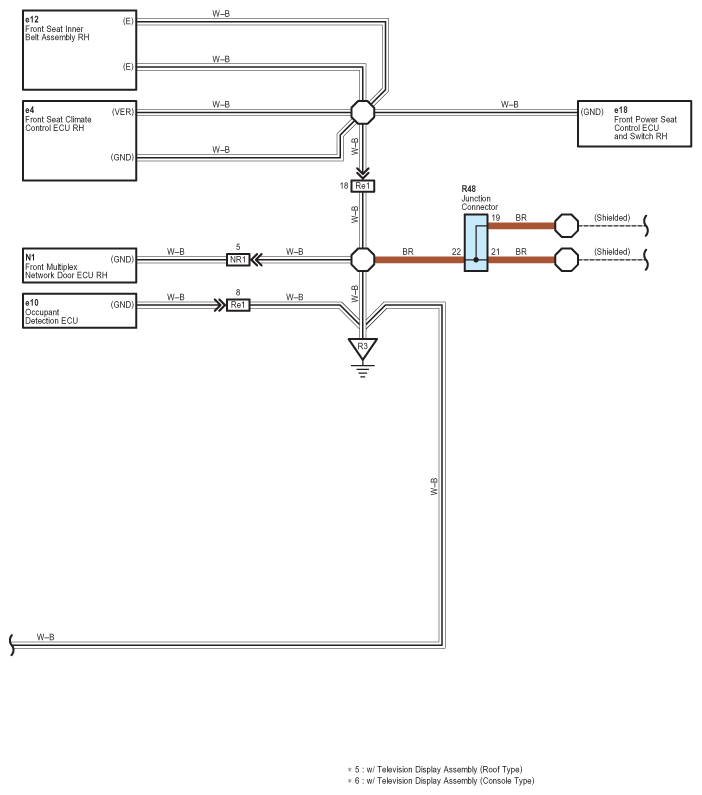

Fig 12: Ground Point - Circuit Diagram (12 Of 15)

G07569020

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

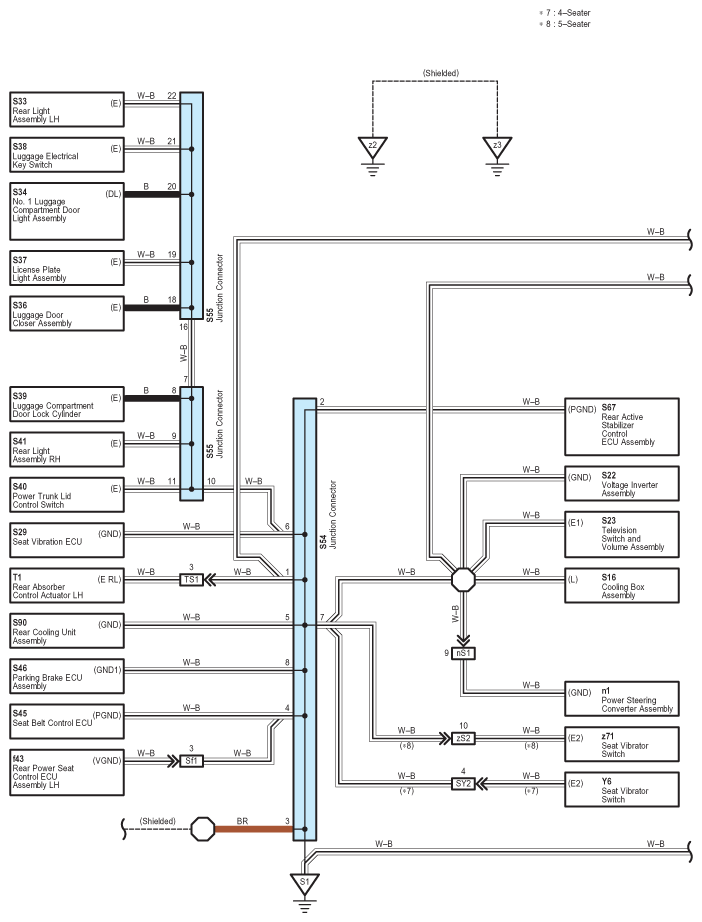

Fig 13: Ground Point - Circuit Diagram (13 Of 15)

G07569021

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

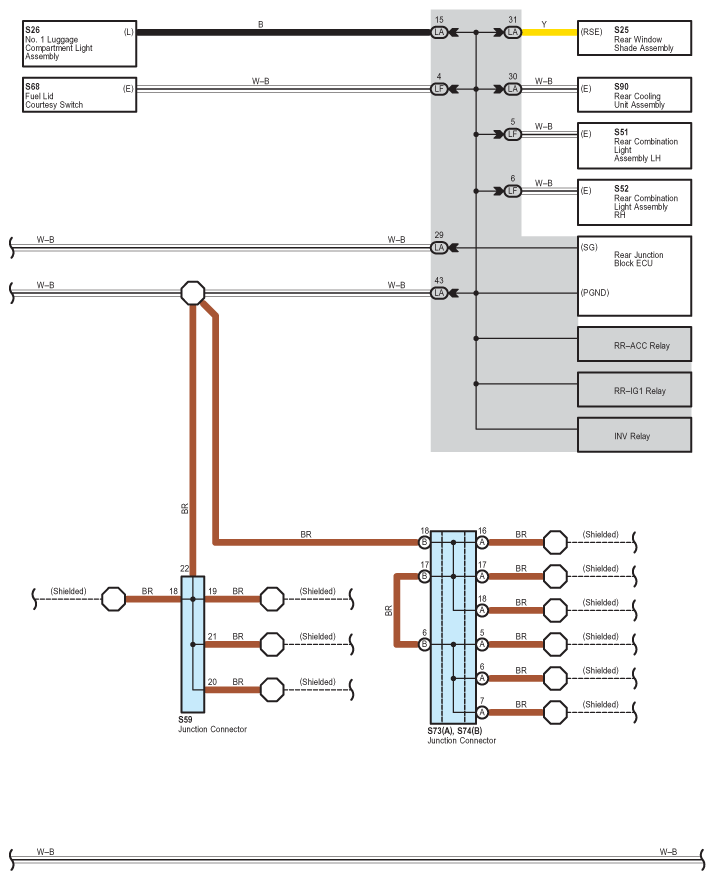

Fig 14: Ground Point - Circuit Diagram (14 Of 15)

G07569022

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

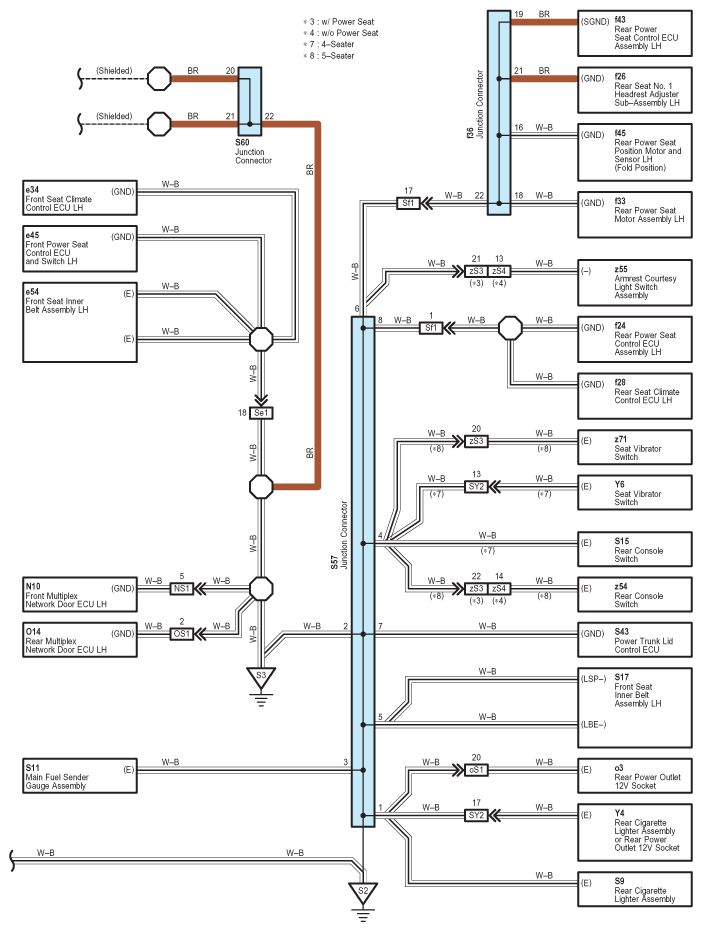

Fig 15: Ground Point - Circuit Diagram (15 Of 15)

G07569023

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
