Ground Point: Notes

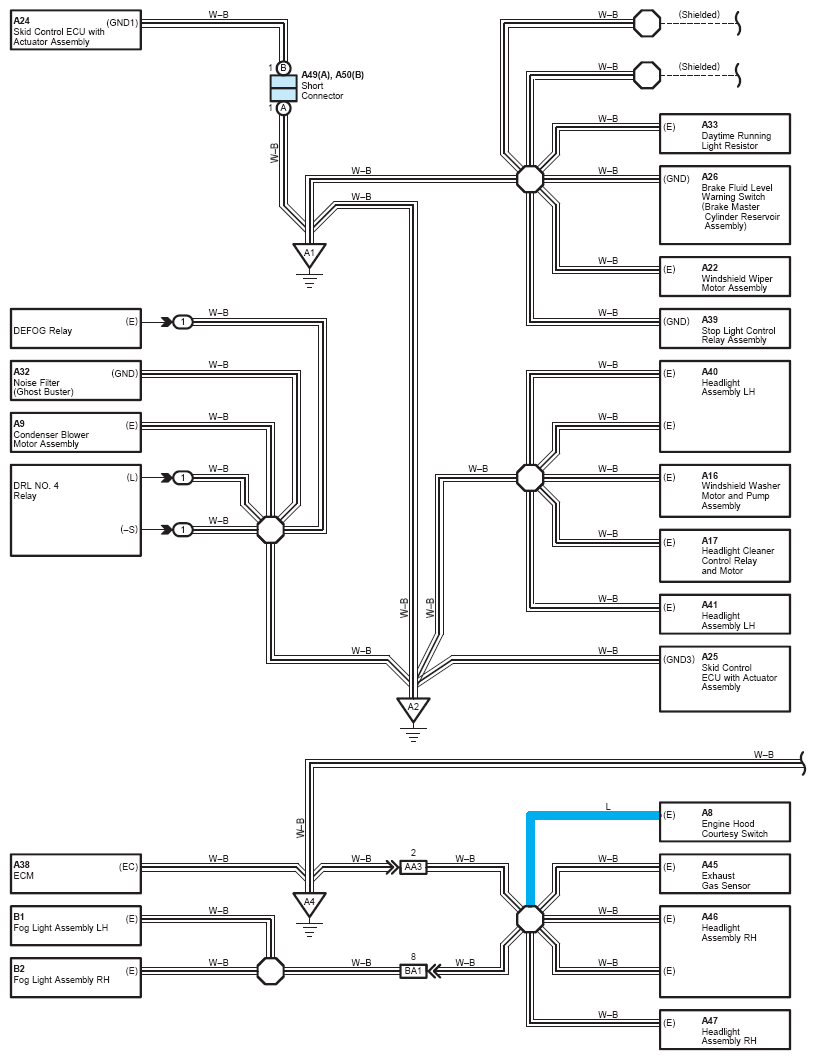

Fig 1: Ground Point - Wiring Diagram (1 Of 11)

G07562341

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

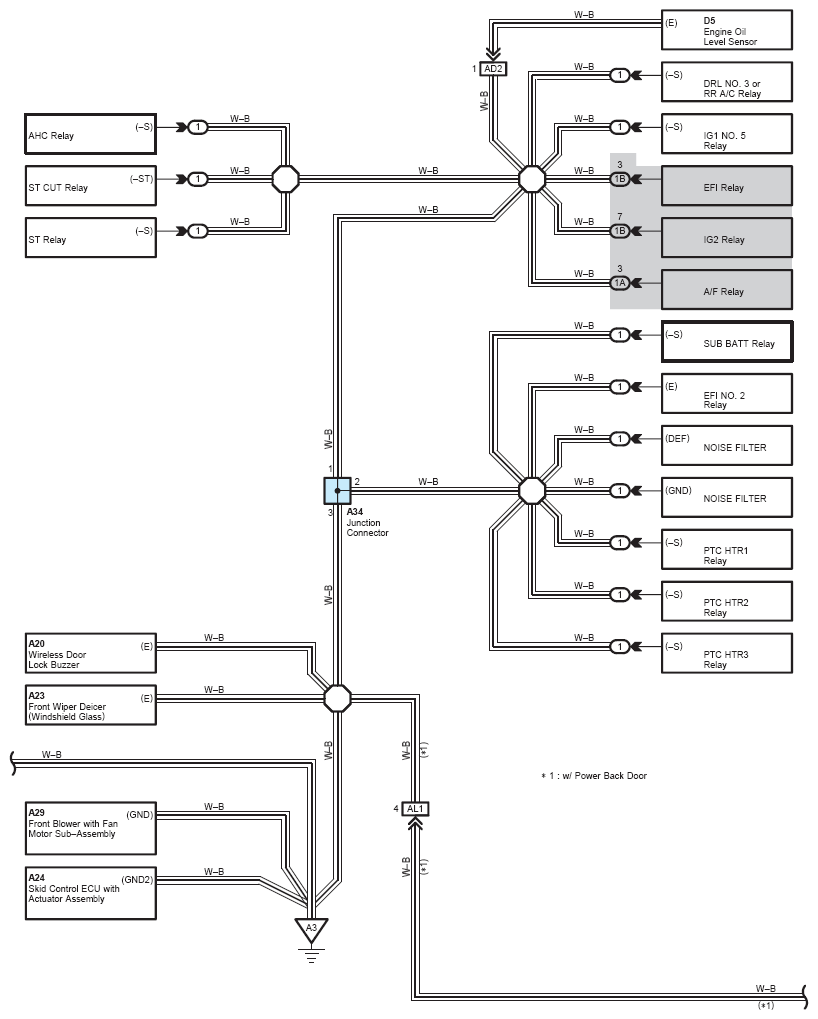

Fig 2: Ground Point - Wiring Diagram (2 Of 11)

G07562342

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

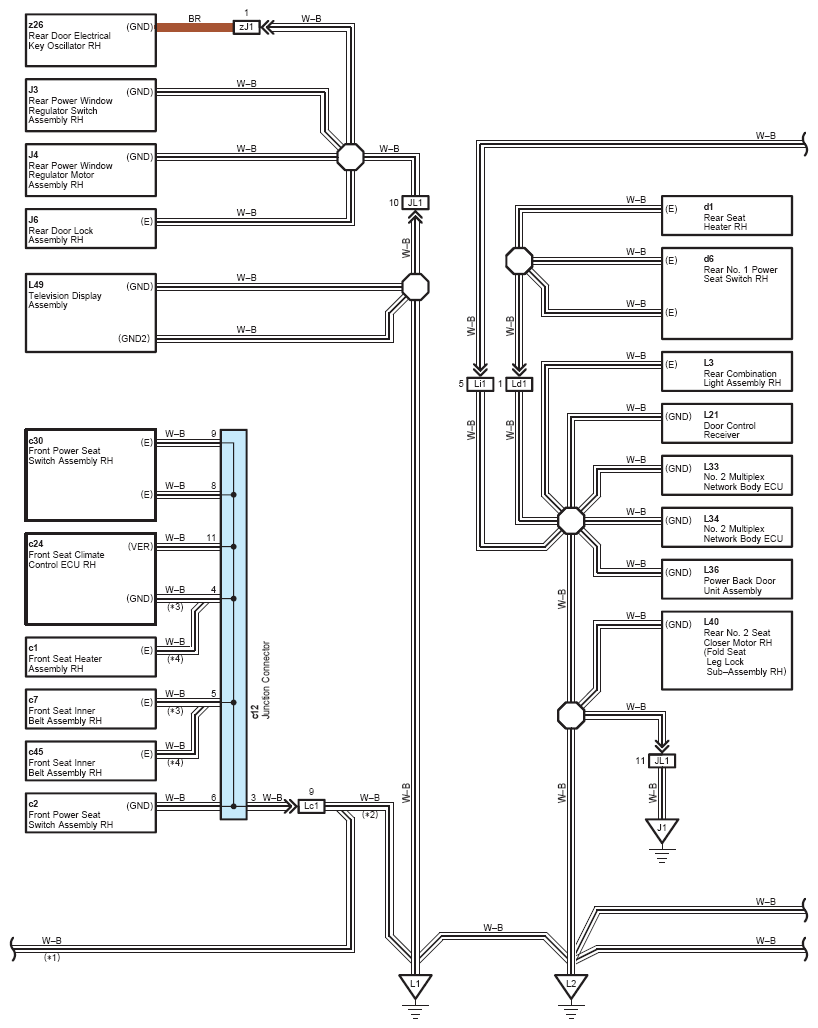

Fig 3: Ground Point - Wiring Diagram (3 Of 11)

G07562343

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

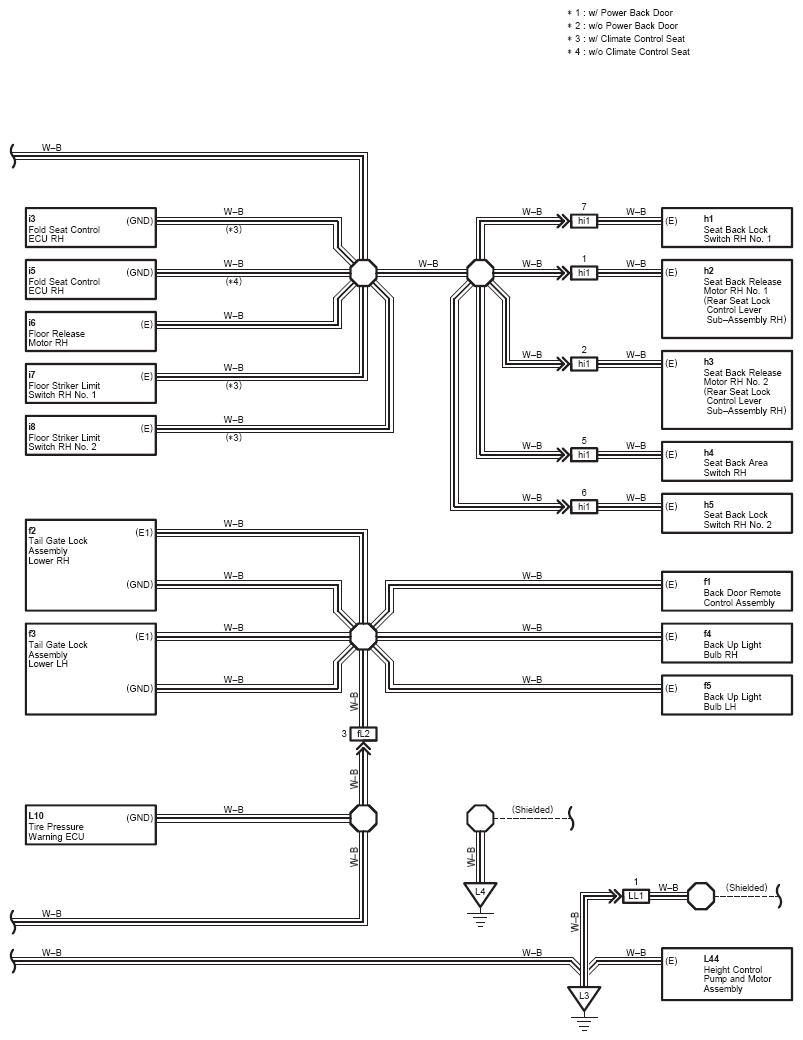

Fig 4: Ground Point - Wiring Diagram (4 Of 11)

G07562344

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

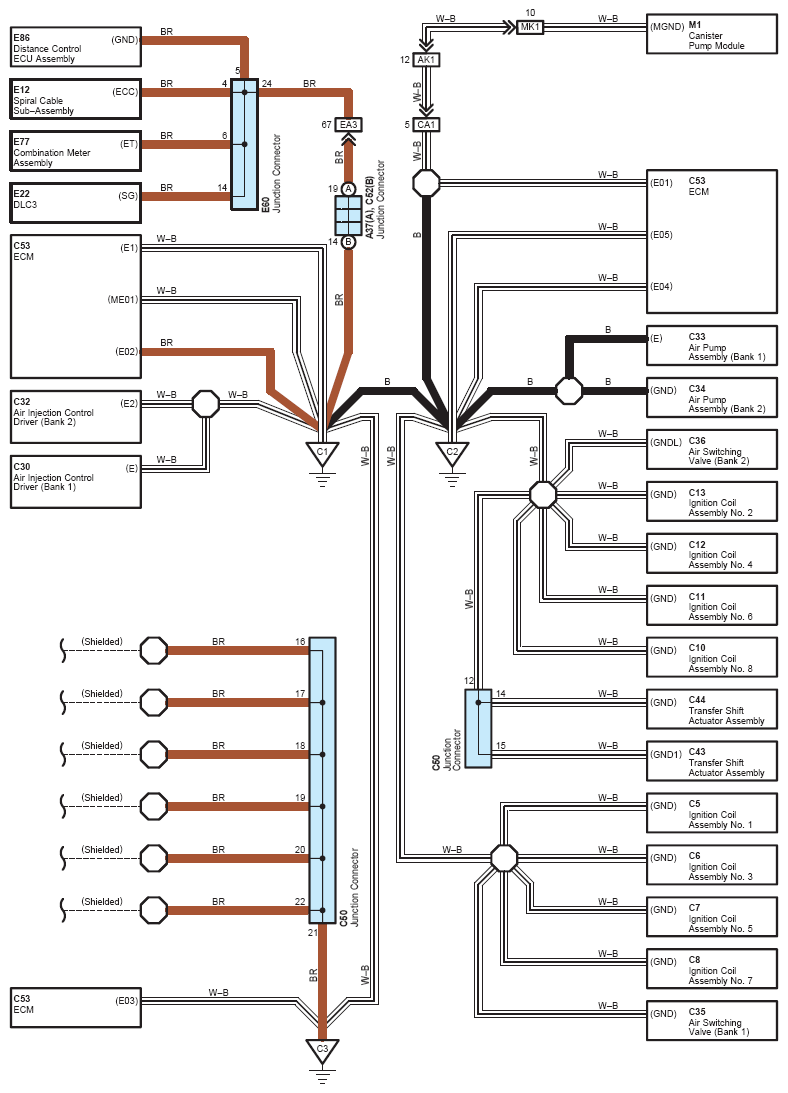

Fig 5: Ground Point - Wiring Diagram (5 Of 11)

G07562345

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

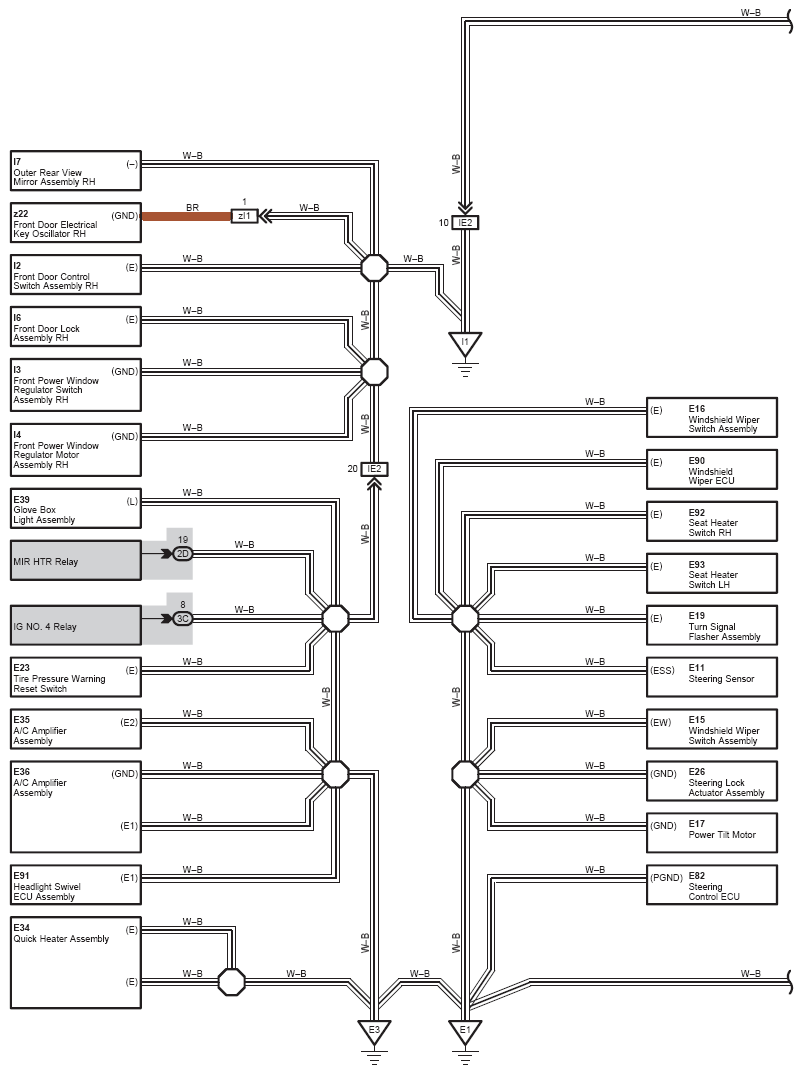

Fig 6: Ground Point - Wiring Diagram (6 Of 11)

G07562346

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

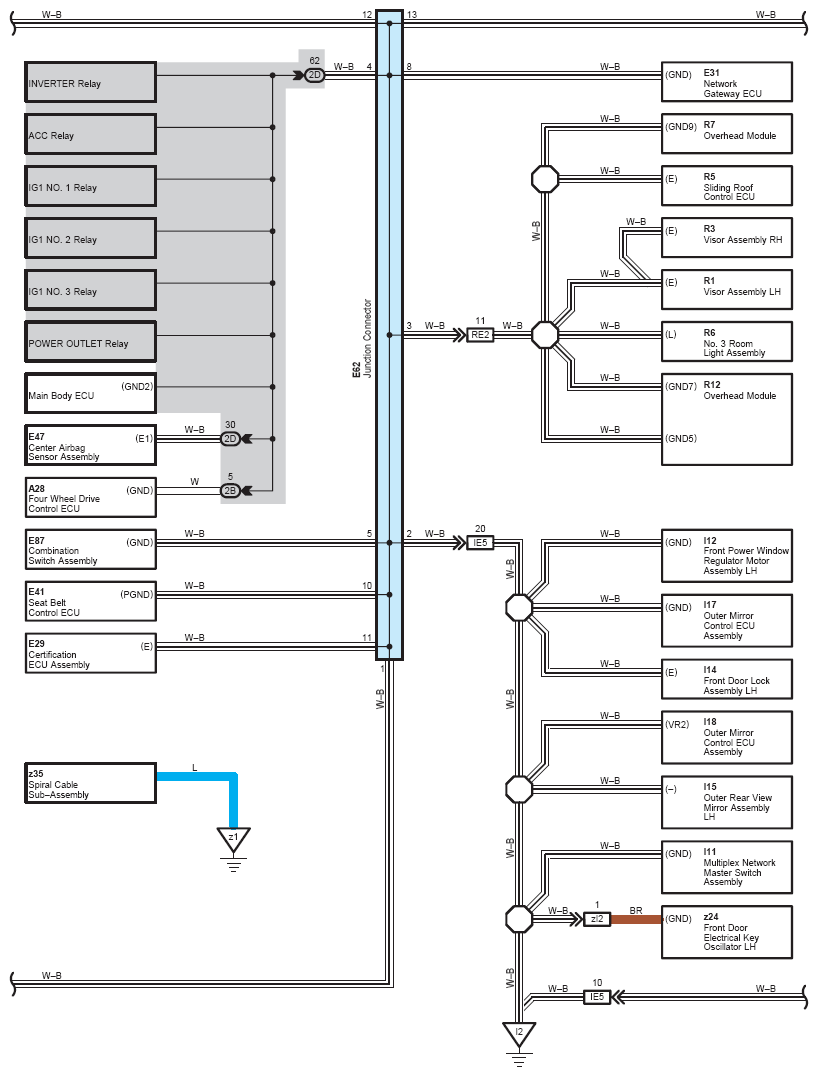

Fig 7: Ground Point - Wiring Diagram (7 Of 11)

G07562347

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

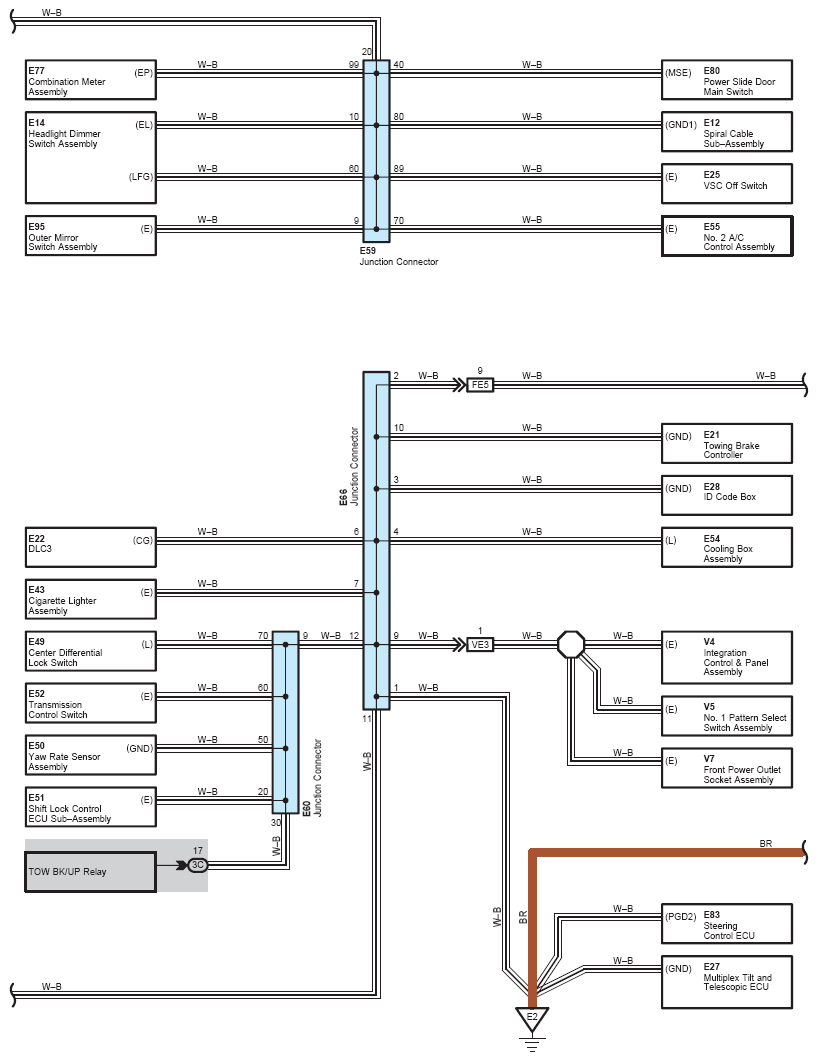

Fig 8: Ground Point - Wiring Diagram (8 Of 11)

G07562348

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

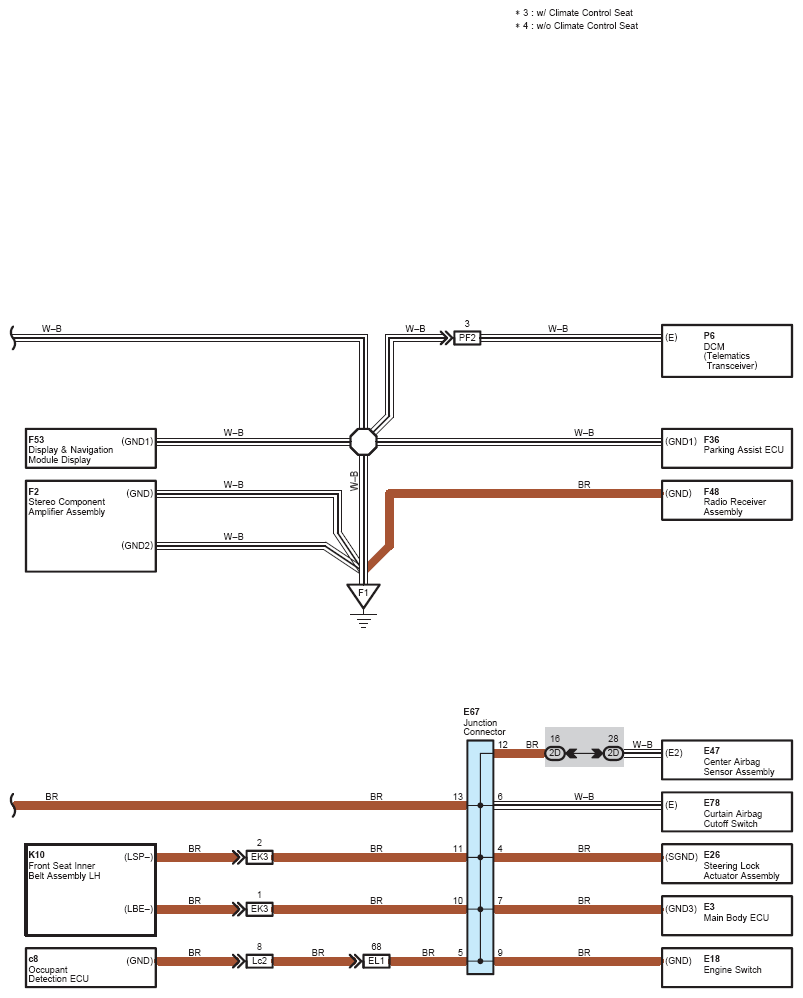

Fig 9: Ground Point - Wiring Diagram (9 Of 11)

G07562349

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

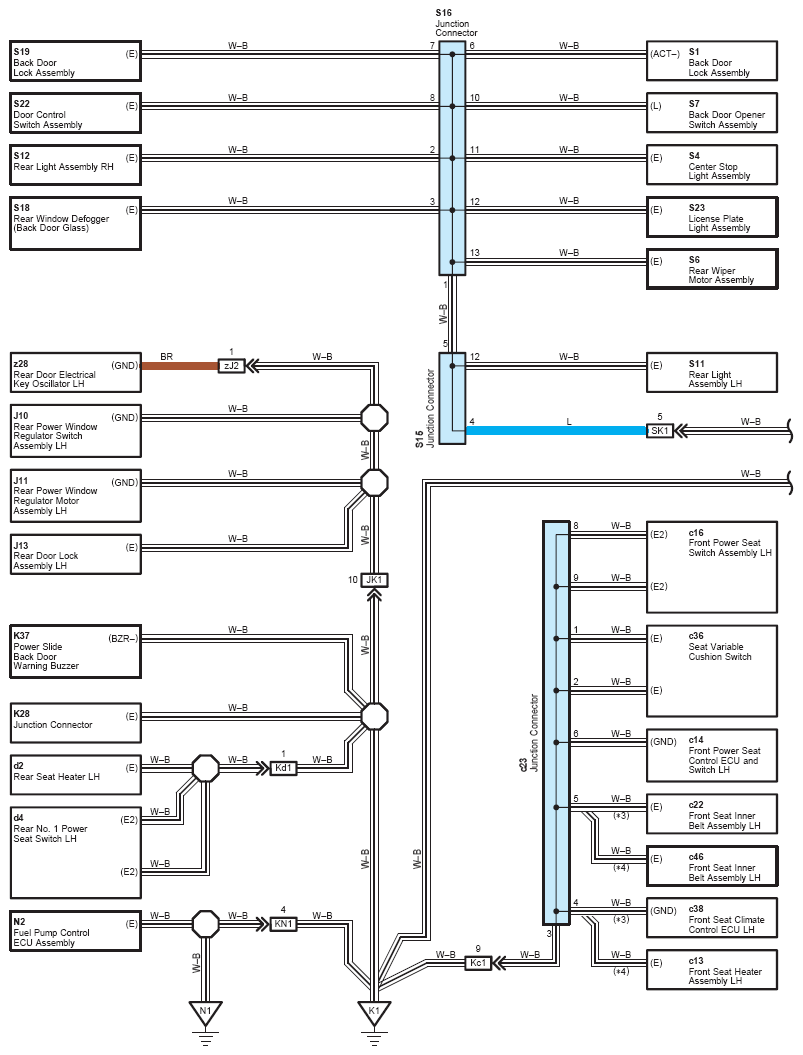

Fig 10: Ground Point - Wiring Diagram (10 Of 11)

G07562350

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

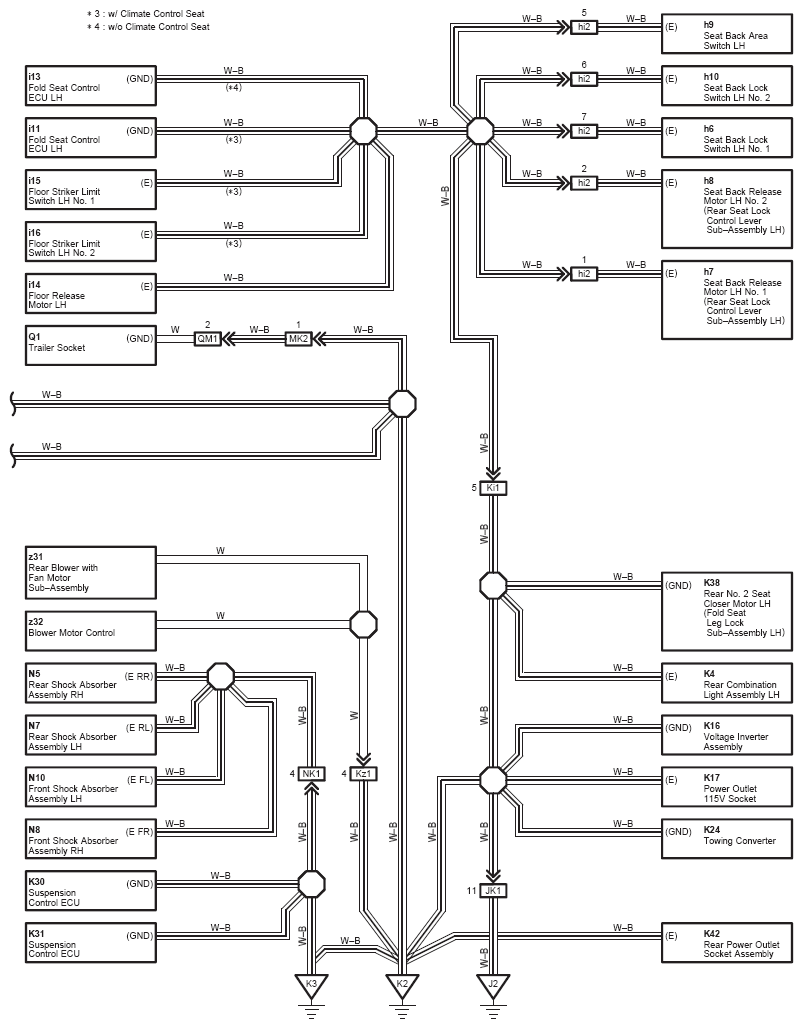

Fig 11: Ground Point - Wiring Diagram (11 Of 11)

G07562351

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
