Fuel Pressure Regulator: Installation: Installation

  1. INSTALL FUEL PRESSURE REGULATOR ASSEMBLY
    1. Apply a light coat of gasoline or spindle oil to a new O-ring, and install it to the pressure regulator.

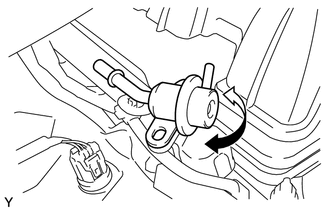

      Fig 1: Identifying Fuel Pressure Regulator
      GTY127092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Make sure that there are no scratches or foreign matter in or around the insertion hole of the delivery pipe.
      • When inserting the injector, be careful not to damage the O-ring.
    2. While turning the pressure regulator left and right, install it to the delivery pipe.
    3. Install the 2 bolts.
      Fig 2: Identifying Pressure Regulator And Bolts
      GTY141158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m (107 kgf*cm, 7 ft.*lbf)

    4. Connect the vacuum sensing hose to the pressure regulator.
      Fig 3: Identifying Vacuum Sensing Hose
      GTY147775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect the No. 2 fuel tube to the pressure regulator. Refer to PRECAUTION .
      Fig 4: Identifying No. 2 Fuel Tube
      GTY147774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL AIR CLEANER HOSE ASSEMBLY  . Refer to INSTALLATION - Step 10
  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL  See step  10
  4. INSPECT FOR FUEL LEAK  See step  11
  5. INSTALL V-BANK COVER SUB-ASSEMBLY  . Refer to INSTALLATION - Step 72
  6. INSTALL UPPER RADIATOR SUPPORT SEAL  . Refer to INSTALLATION - Step 2
  7. INSTALL ENGINE ROOM SIDE COVER LH  . Refer to INSTALLATION - Step 3
  8. INSTALL ENGINE ROOM SIDE COVER RH  . Refer to INSTALLATION - Step 4
