Parts Location: Illustration

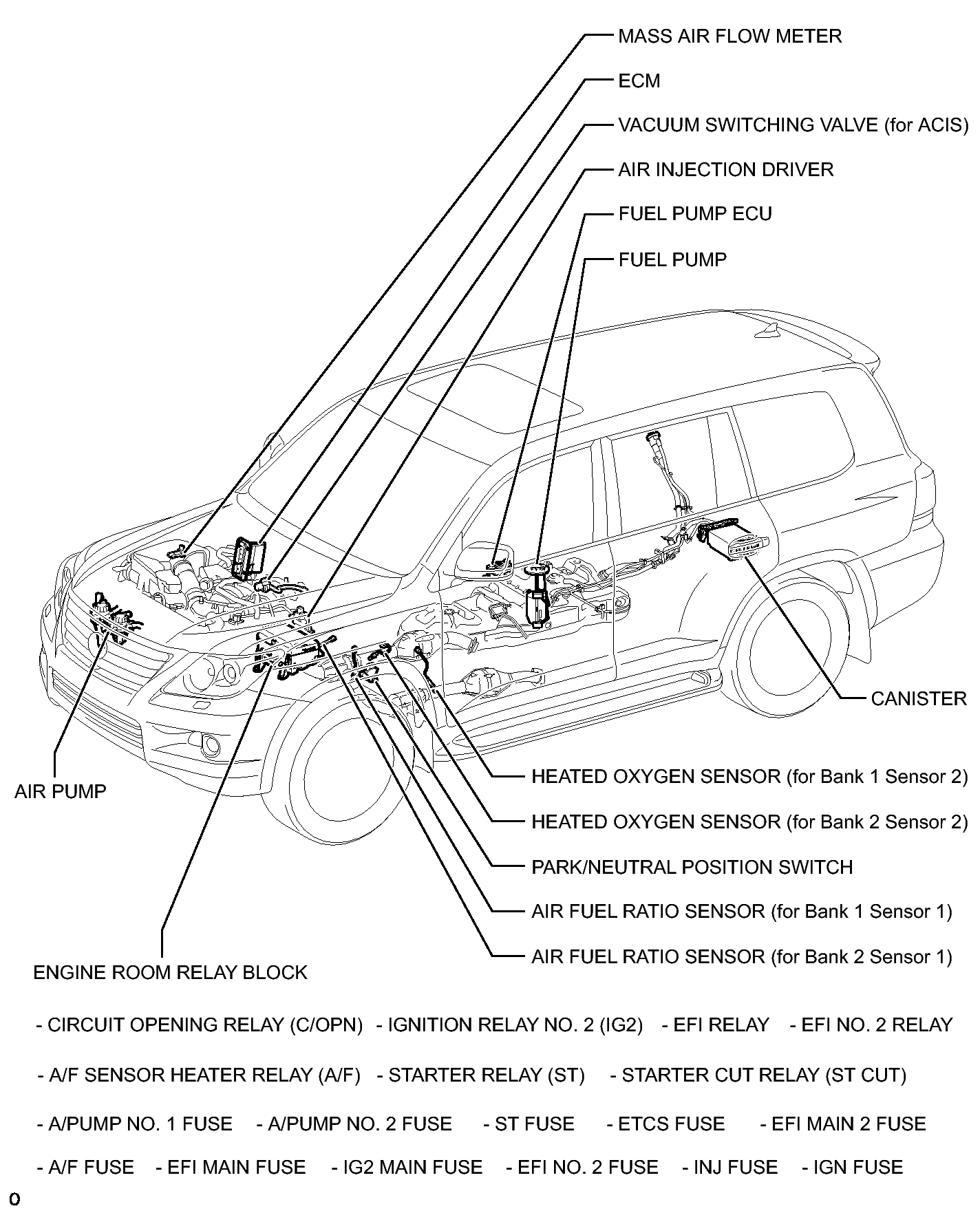

Fig 1: Identifying SFI System Parts Location (1 Of 5)
GTY137503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

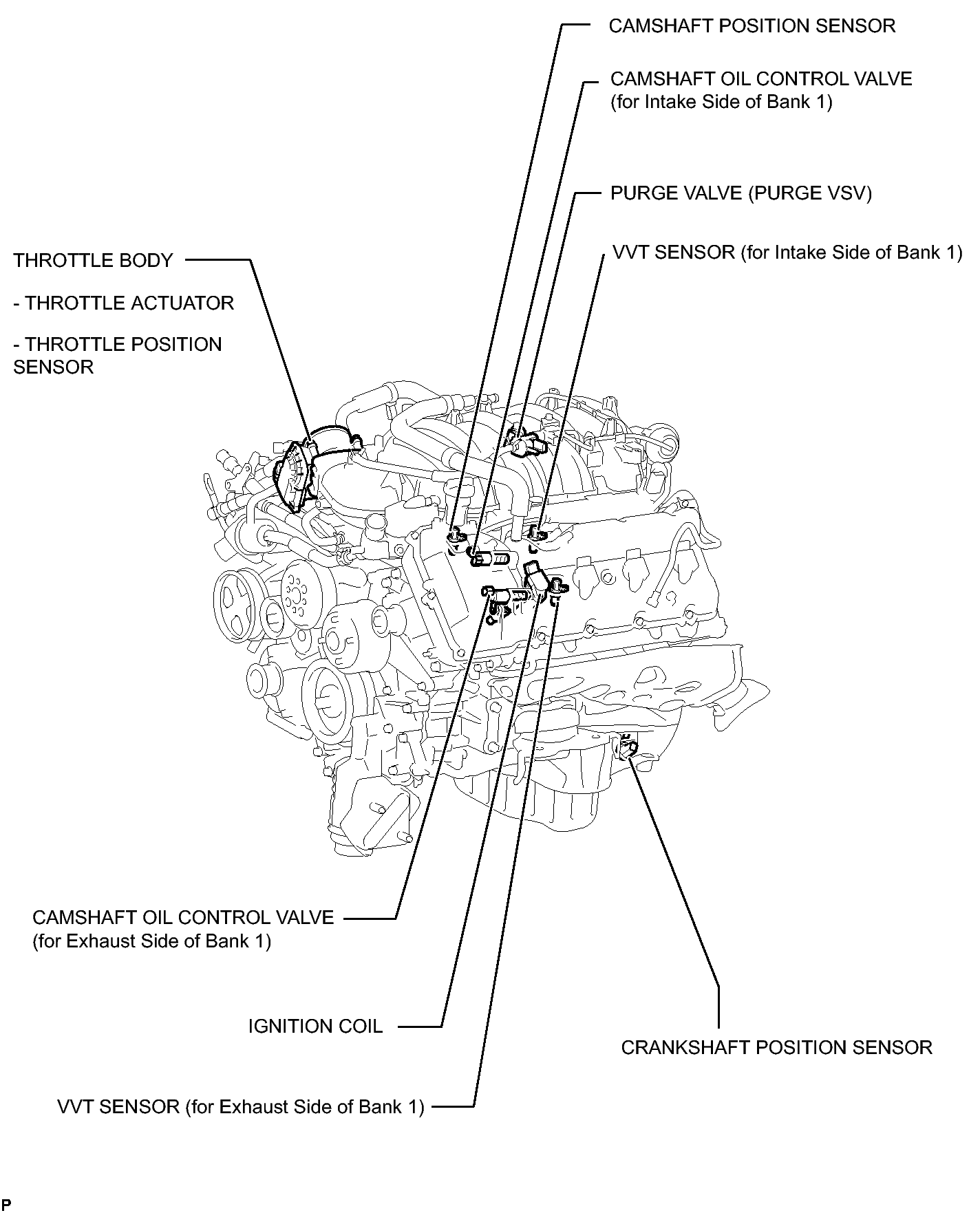

Fig 1: Identifying SFI System Parts Location (2 Of 5)
GTY130643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

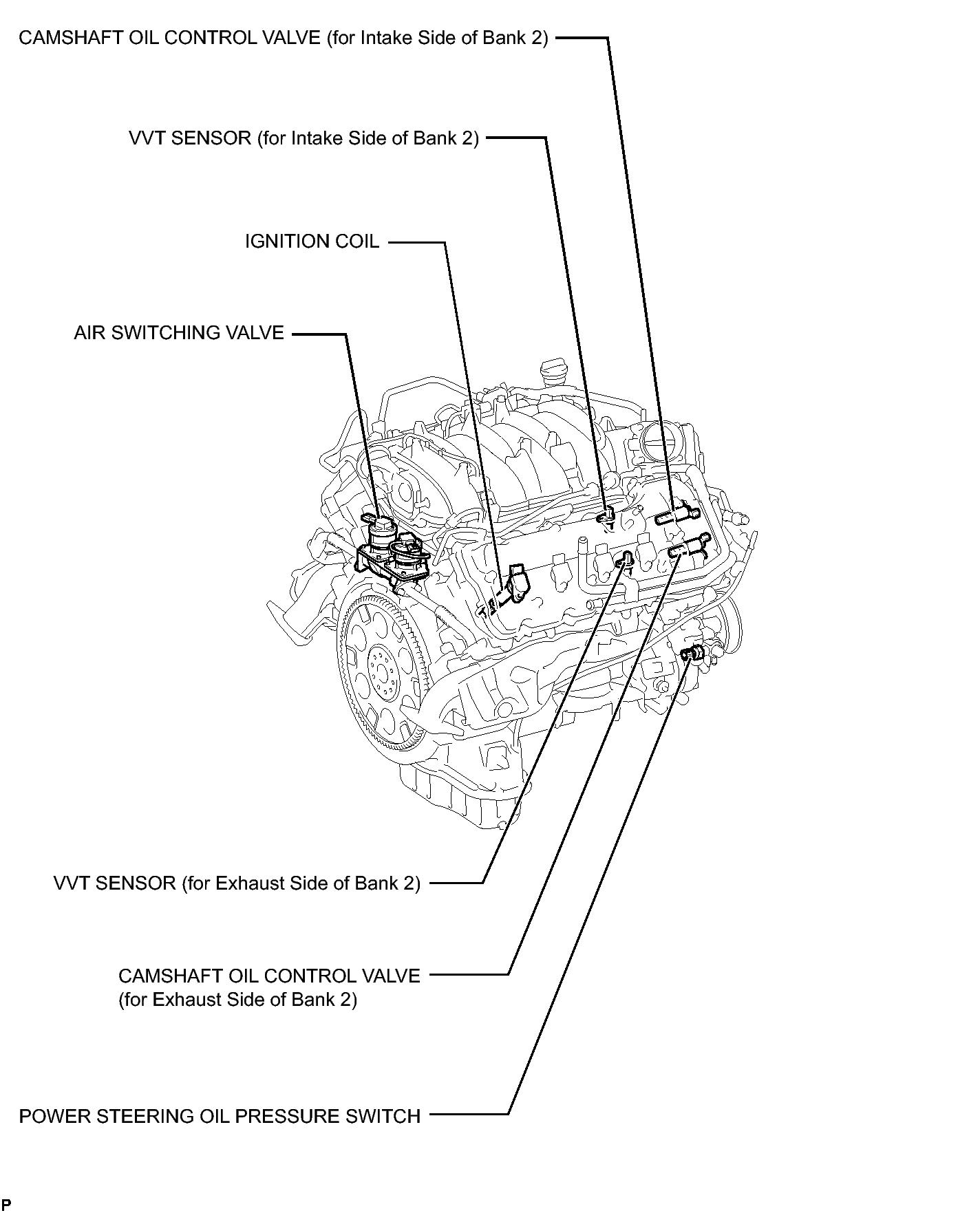

Fig 1: Identifying SFI System Parts Location (3 Of 5)
GTY138276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

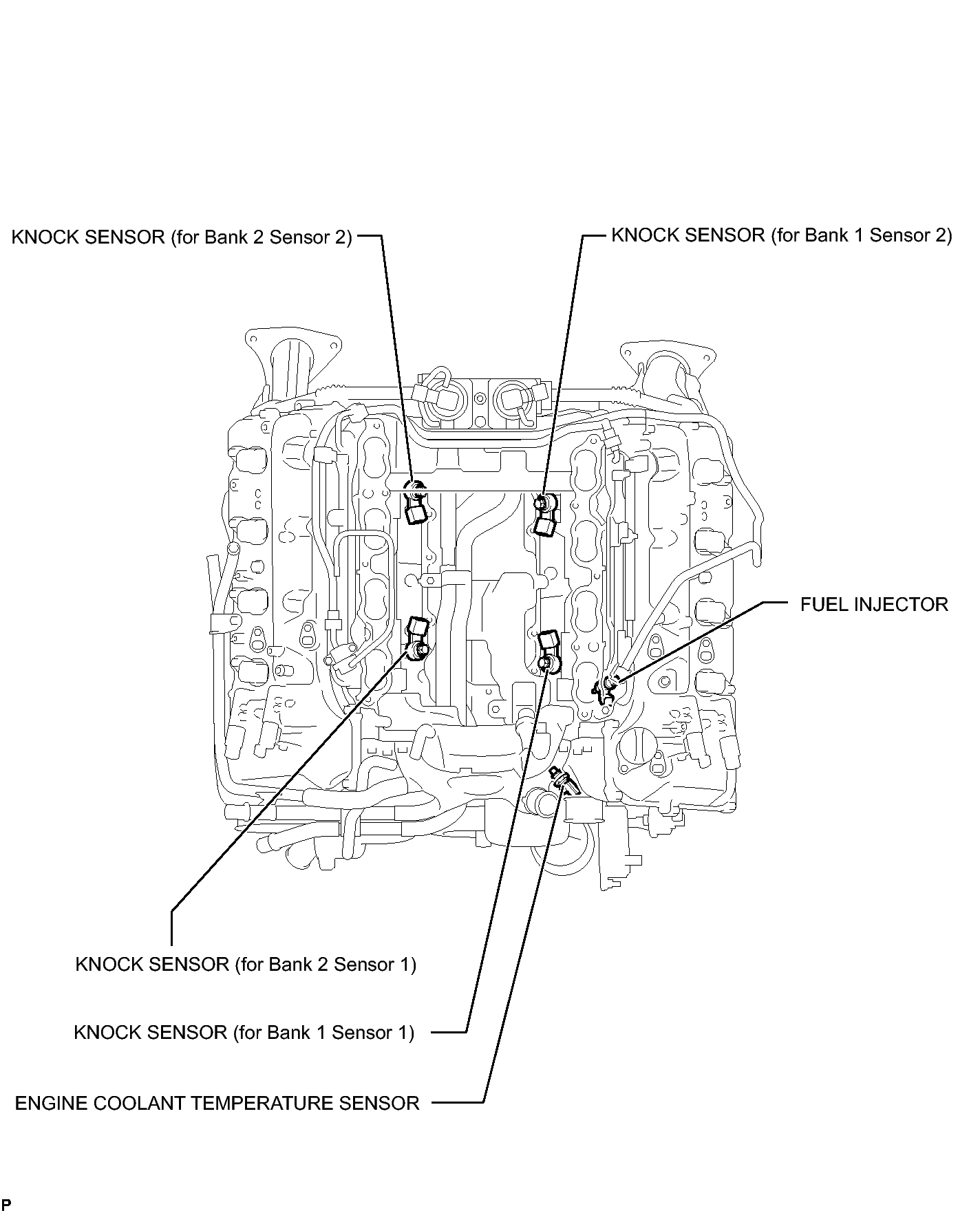

Fig 1: Identifying SFI System Parts Location (4 Of 5)
GTY148020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

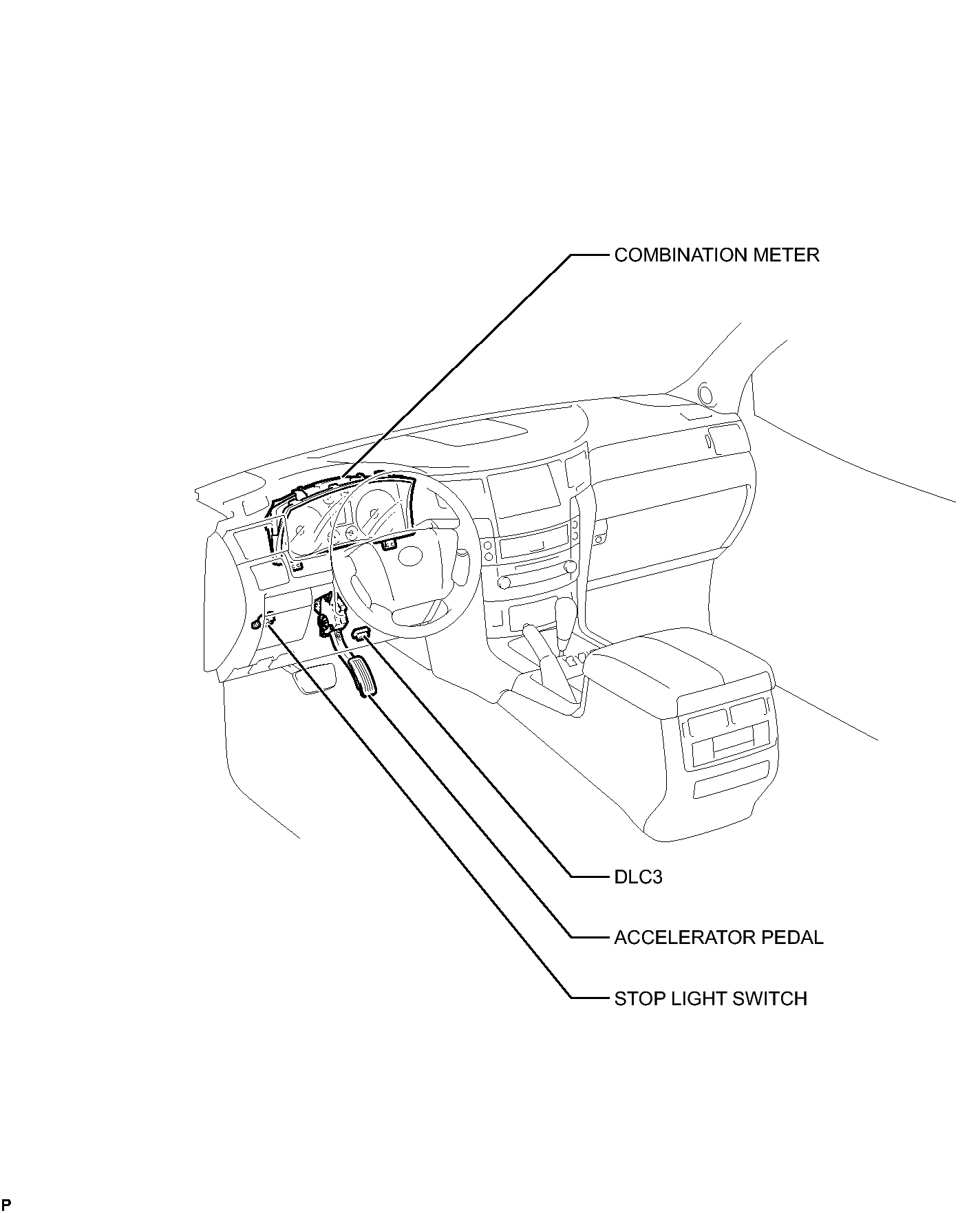

Fig 1: Identifying SFI System Parts Location (5 Of 5)
GTY148735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
