Front Passenger Side Power Window Switch: Installation: Installation

INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY
1. Engage the 2 claws to install the power window regulator switch assembly.

  Fig 1: Engage The 2 Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL
1. Connect the connector.

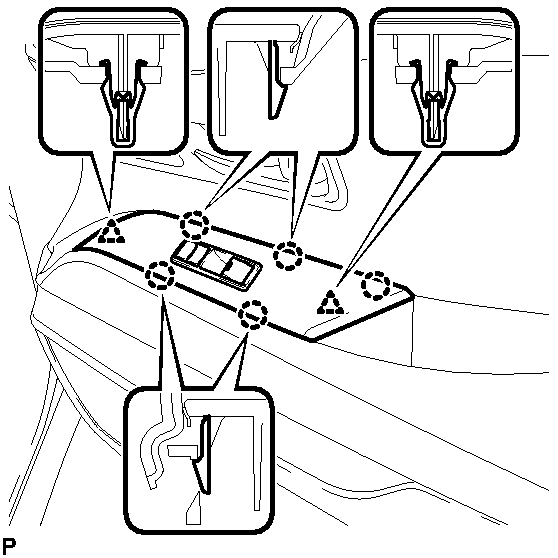

  Fig 2: Engage The 2 Clips And 5 Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 2 clips and 5 claws, and install the power window regulator switch assembly with front door armrest base panel.
