Parts Location: Illustration

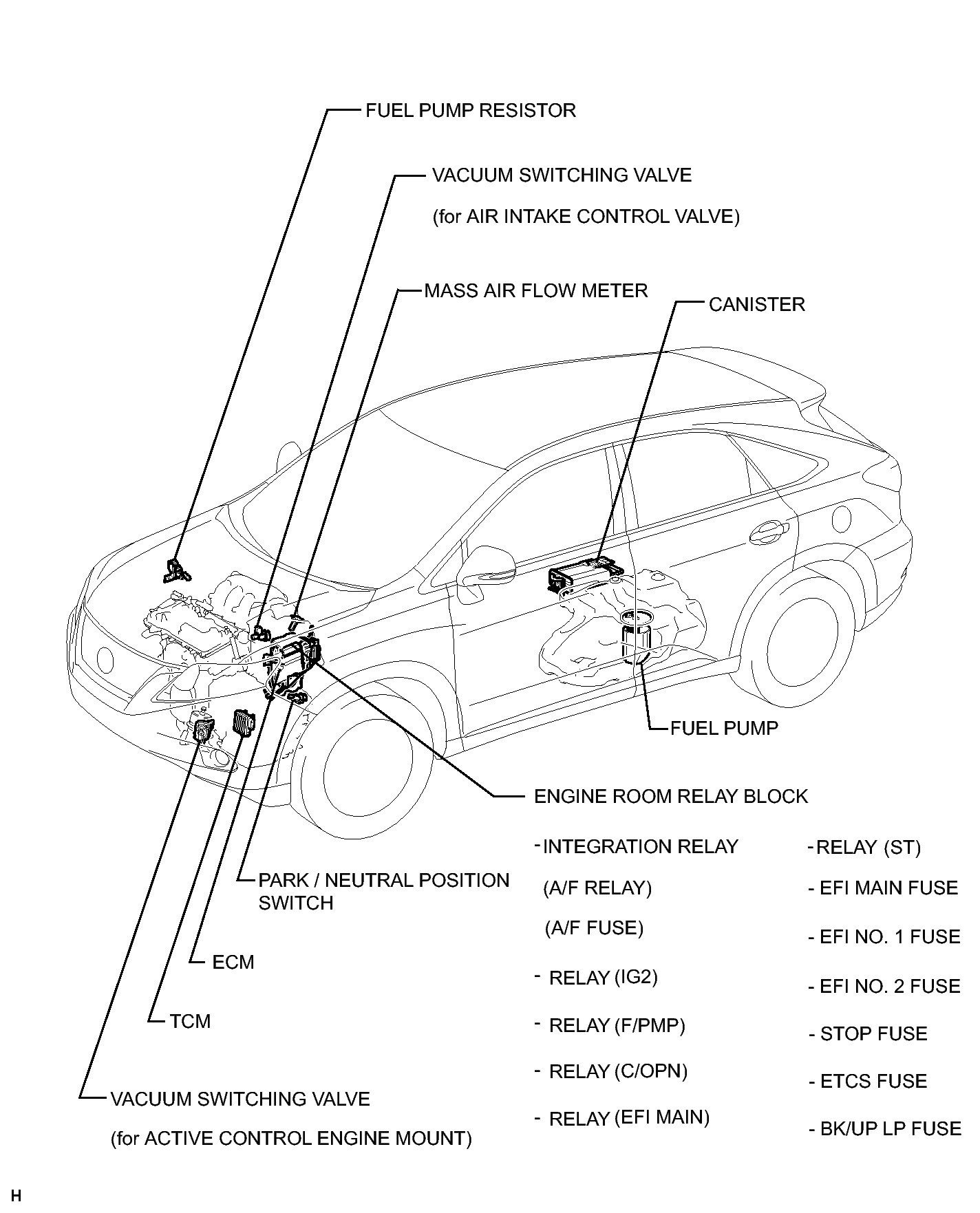

Fig 1: Identifying SFI System Components (1 Of 4)
GTY257850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

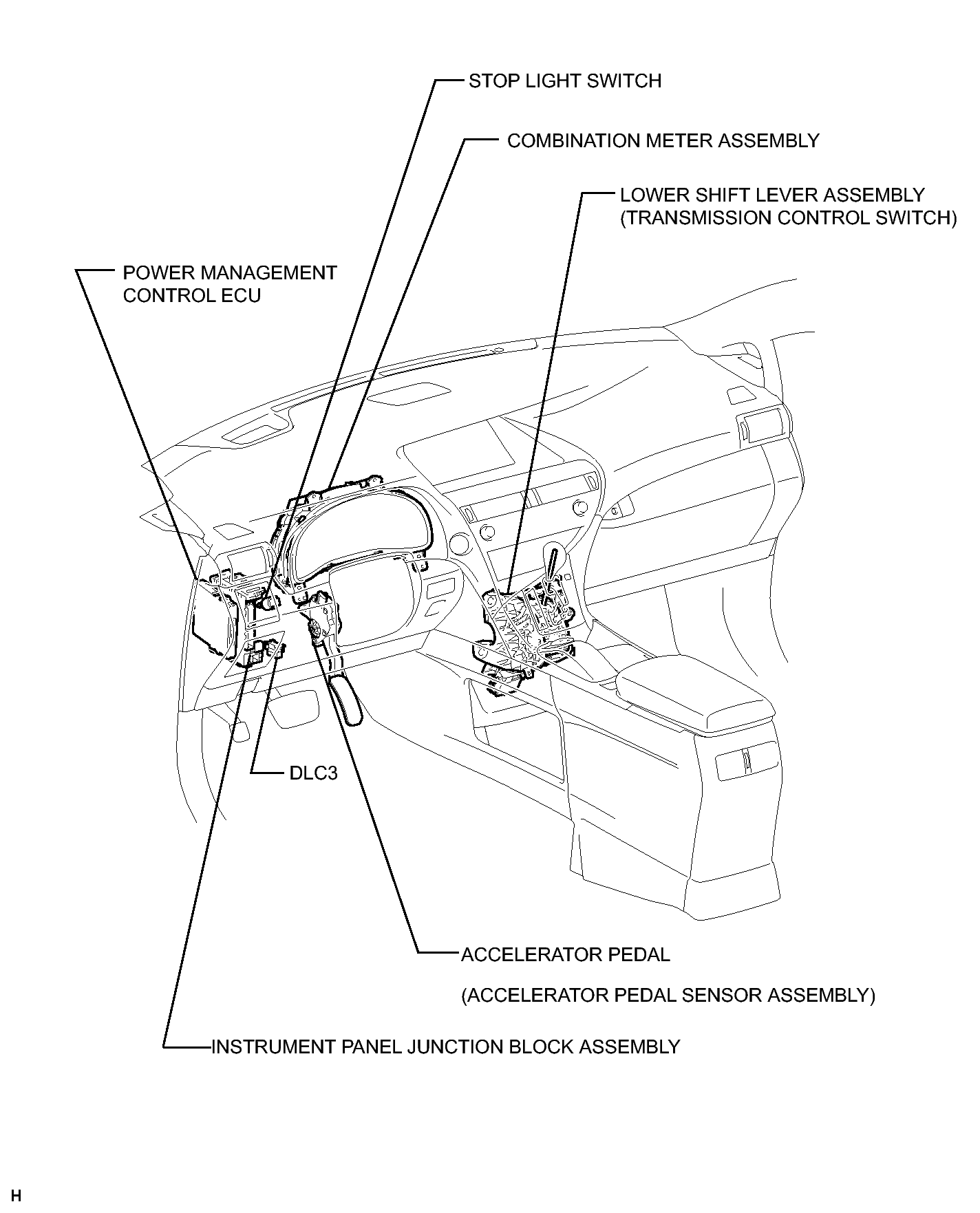

Fig 1: Identifying SFI System Components (2 Of 4)
GTY264245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

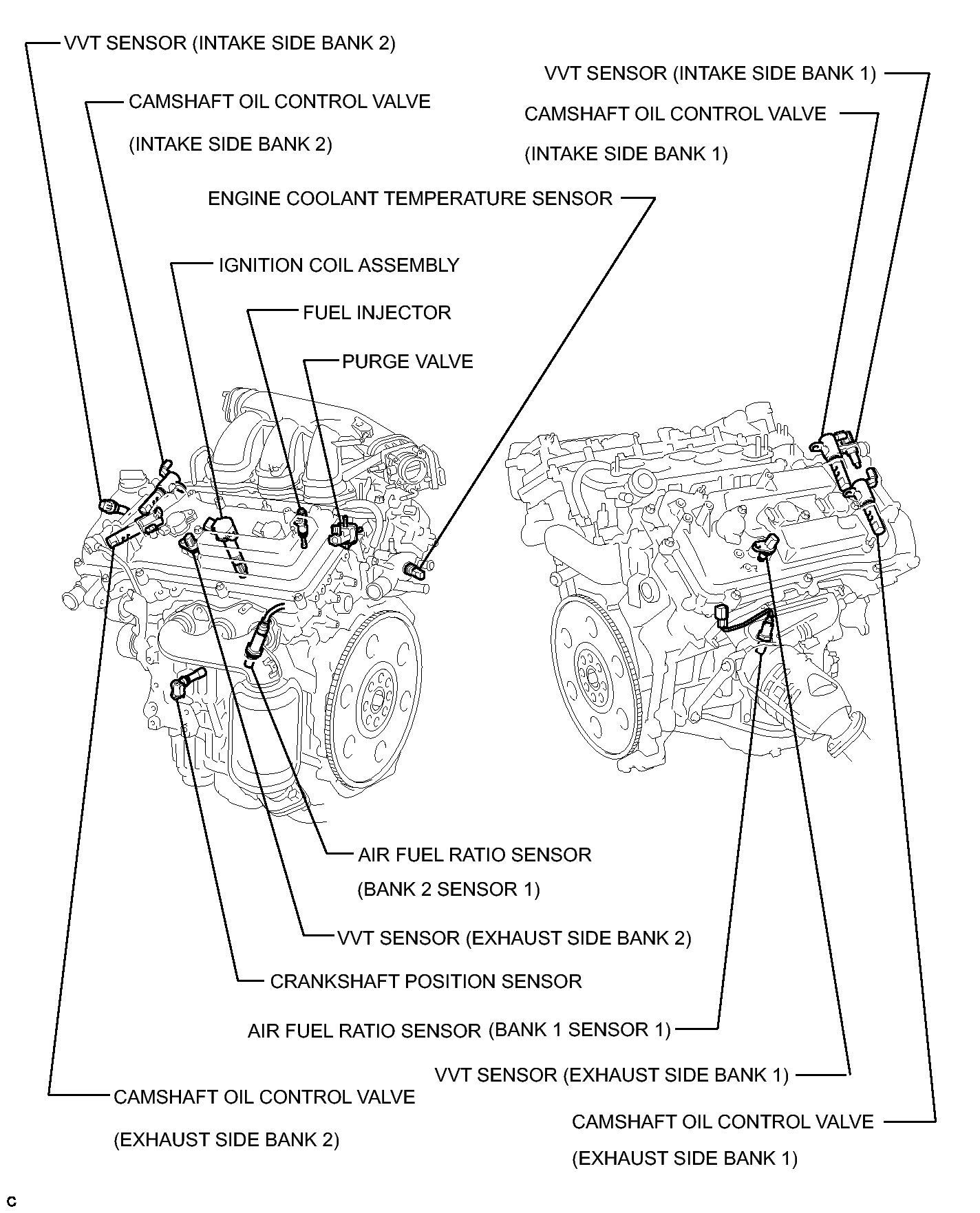

Fig 1: Identifying SFI System Components (3 Of 4)
GTY264711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

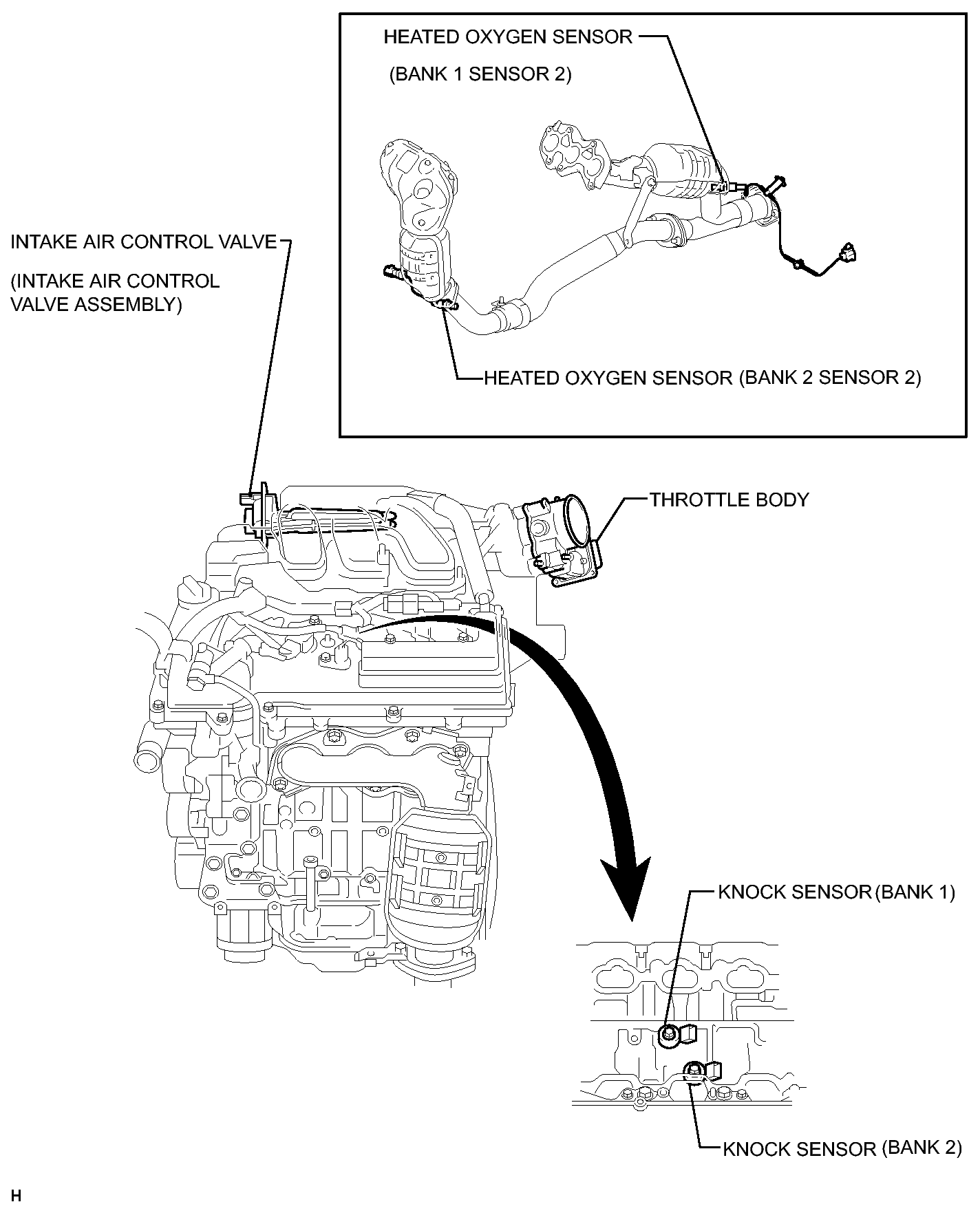

Fig 1: Identifying SFI System Components (4 Of 4)
GTY273633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
