Charging (Service Information): Generator: Components: Illustration

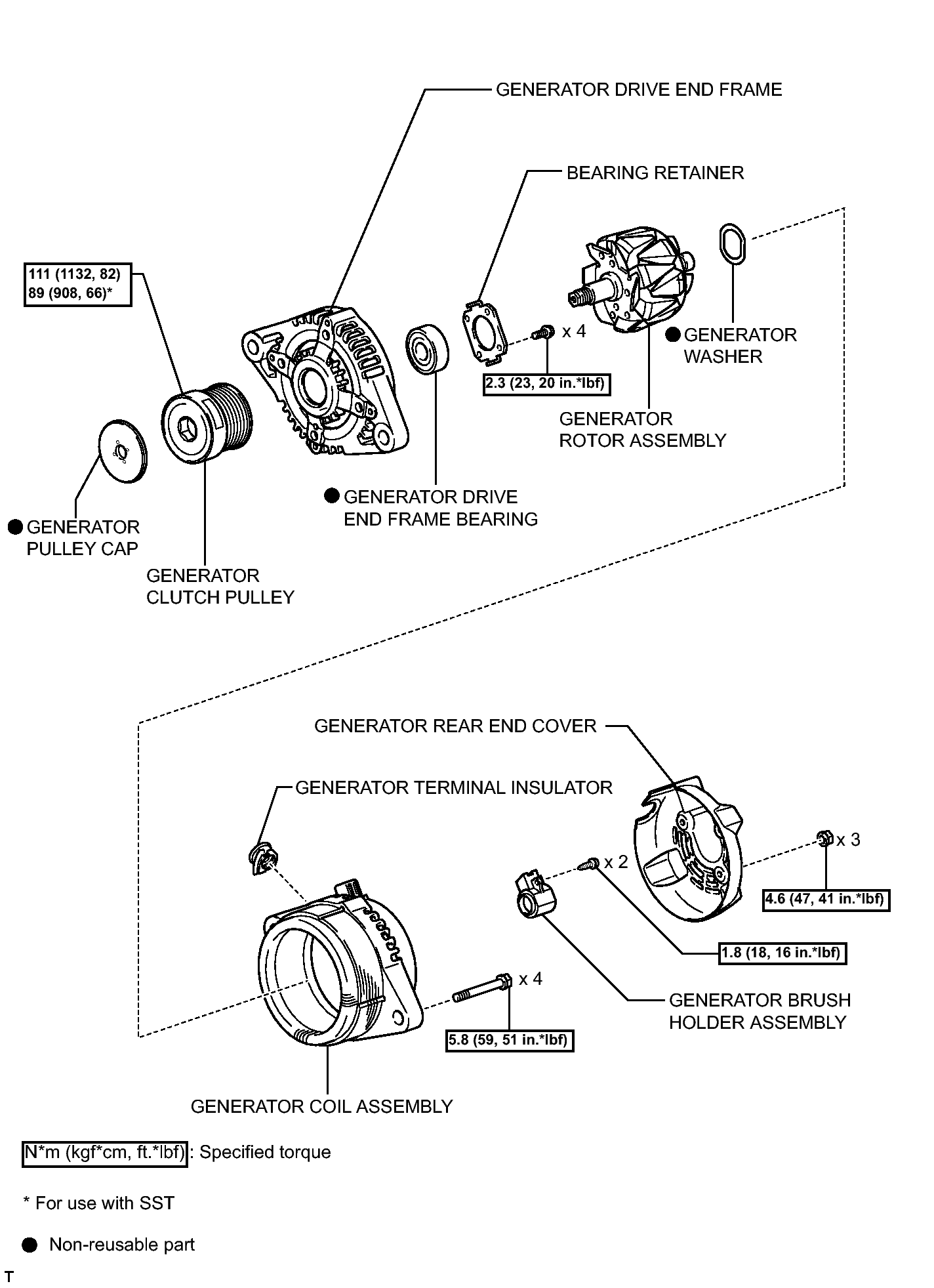

Fig 1: Identifying Generator Replacement Components (1 of 4) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

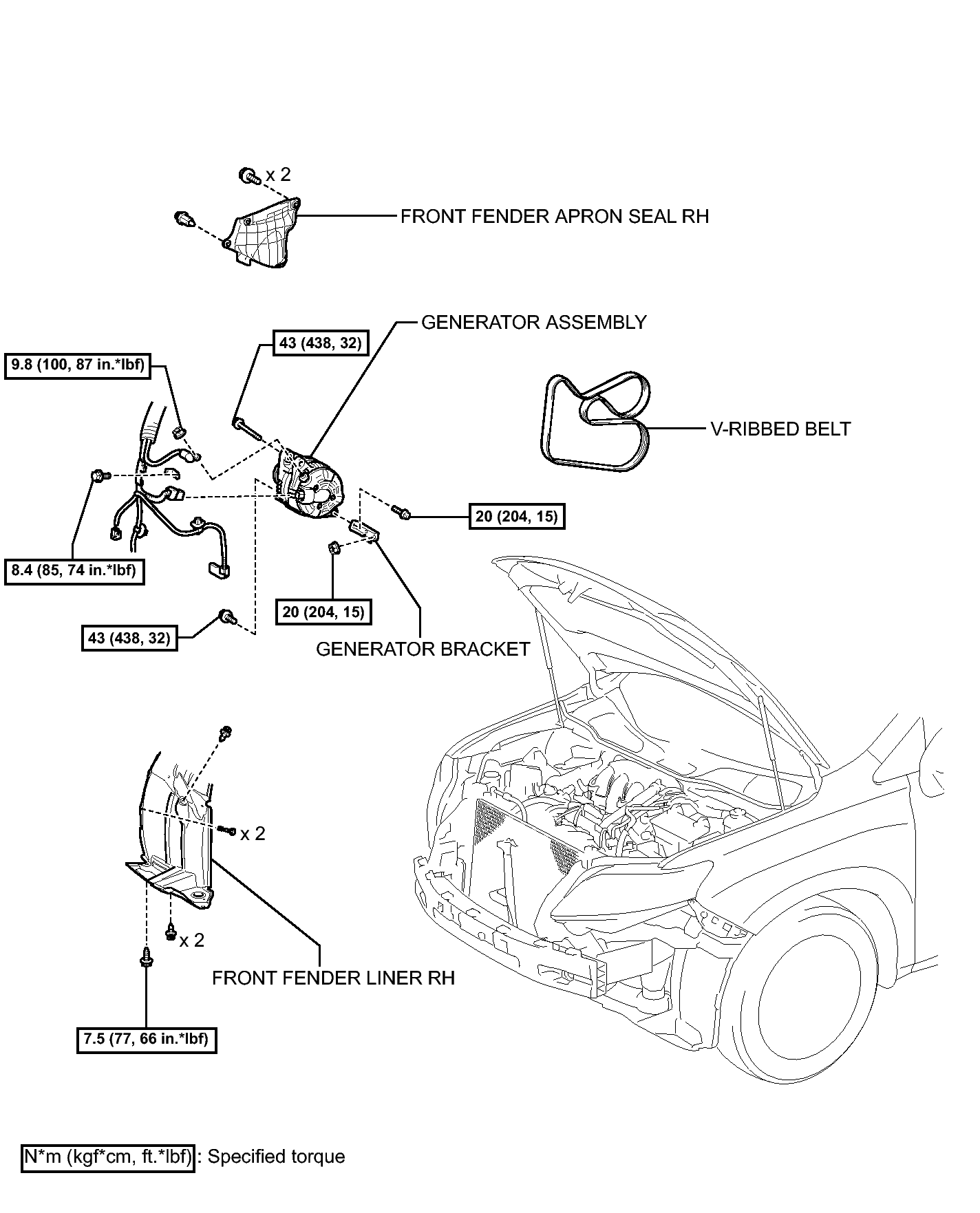

Fig 1: Identifying Generator Replacement Components (2 of 4) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Generator Replacement Components (3 of 4) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Generator Replacement Components (4 of 4) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
