System Diagram

Fig 1: ECM System Diagram (1 Of 5)
GTY287134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

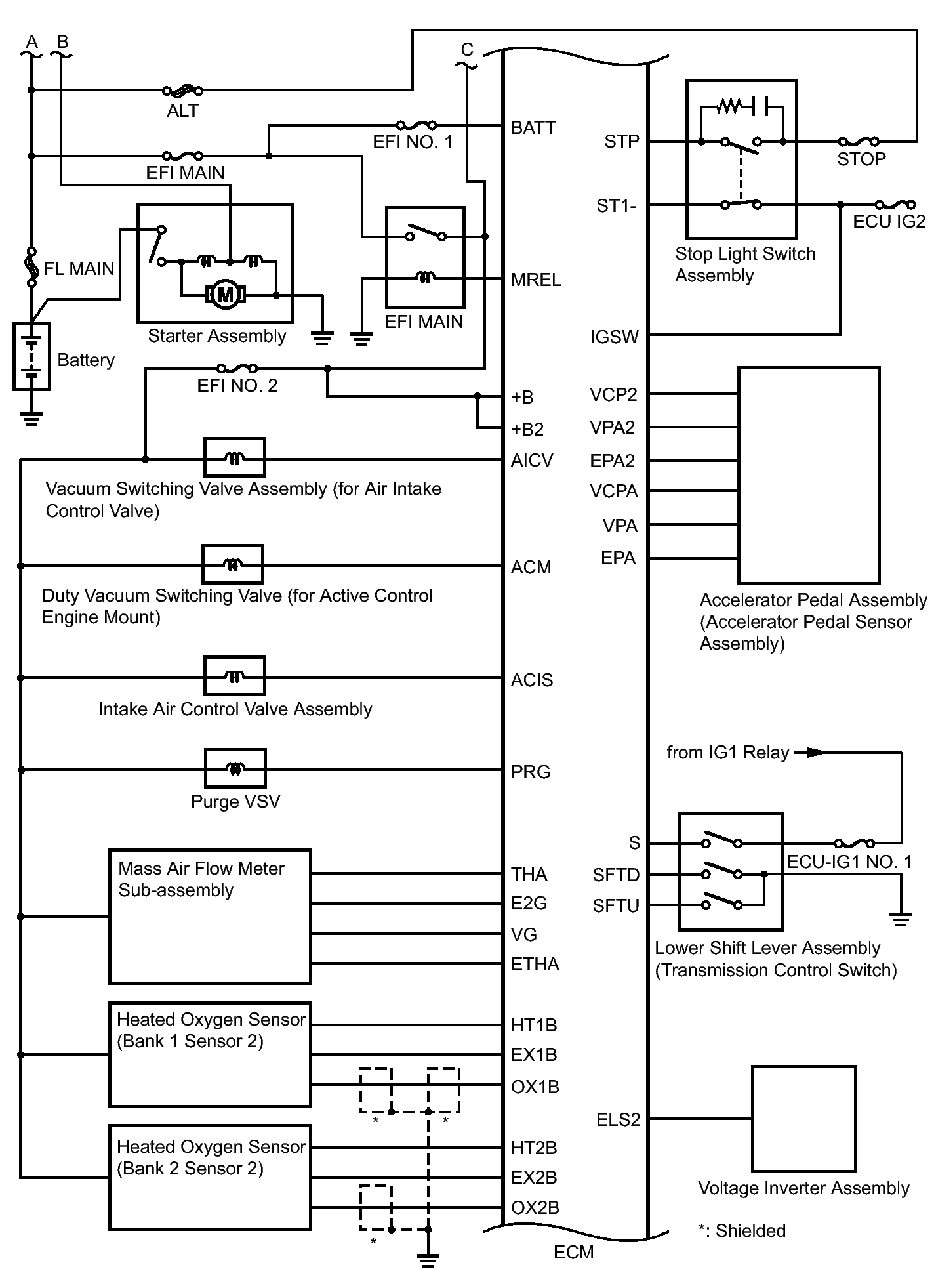

Fig 2: ECM System Diagram (2 Of 5)
GTY275755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

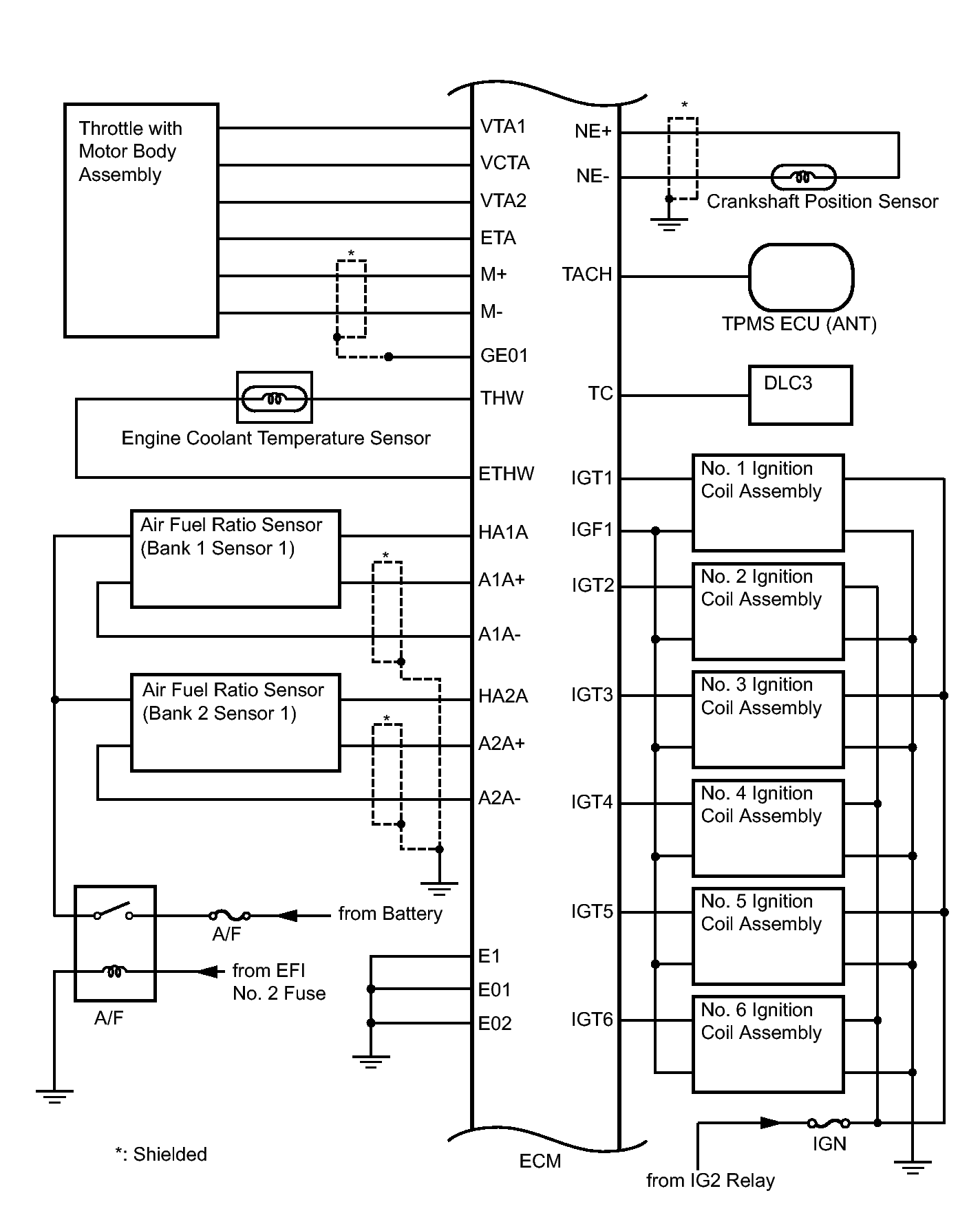

Fig 3: ECM System Diagram (3 Of 5)
GTY271770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: ECM System Diagram (4 Of 5)
GTY263679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

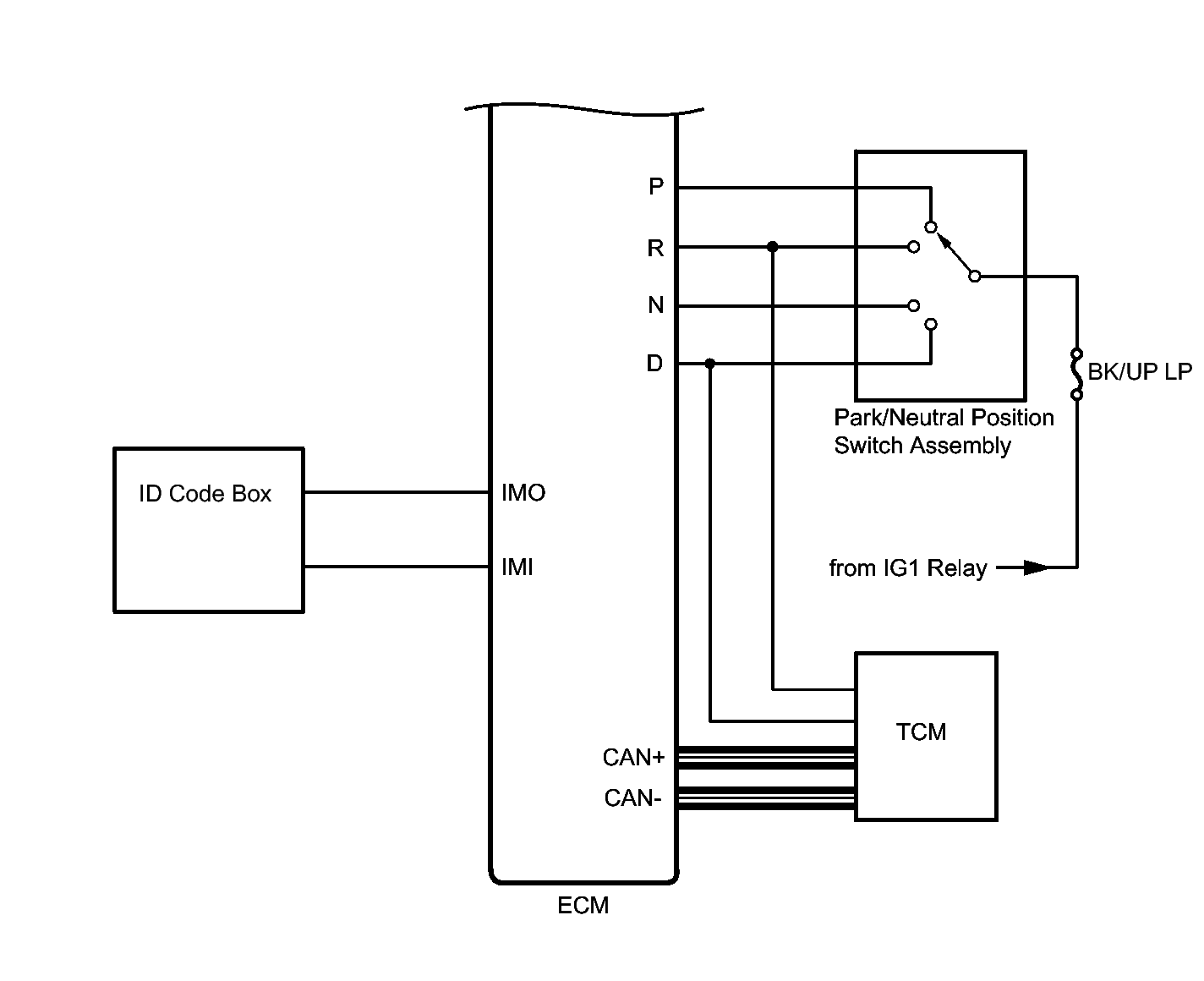

Fig 5: ECM System Diagram (5 Of 5)
GTY261497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
