LEXUS ENFORM or Safety Connect: Notes

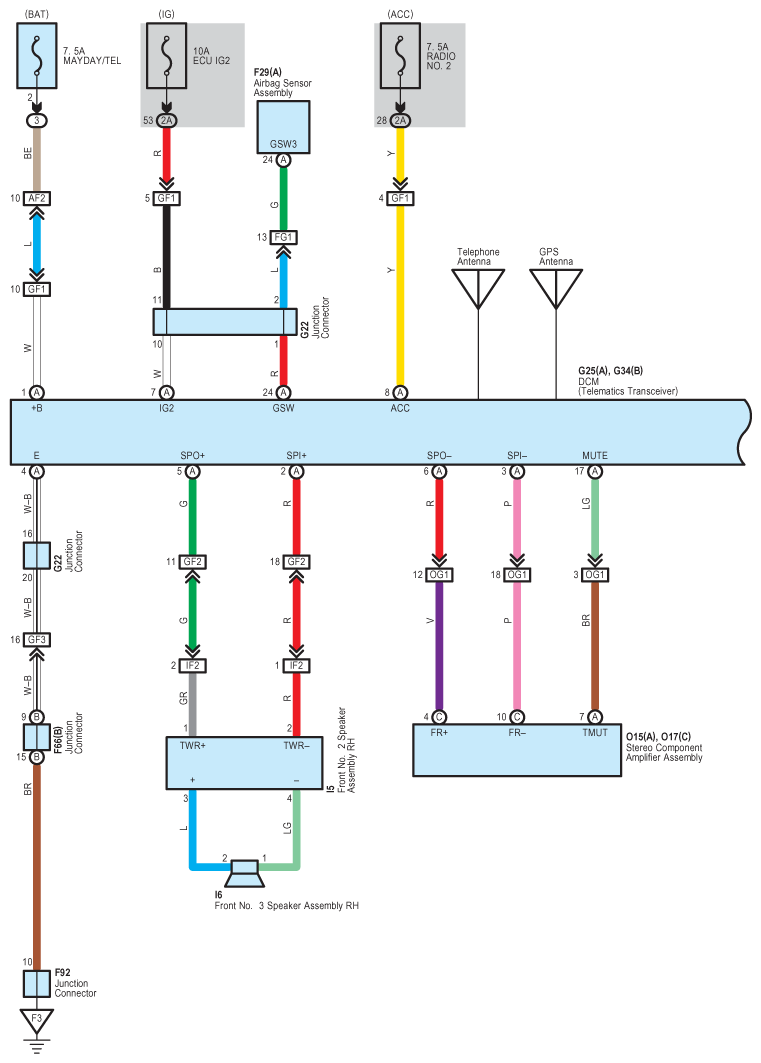

Fig 1: Lexus Enform Or Safety Connect - Circuit Diagram (1 Of 5)
G07574563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

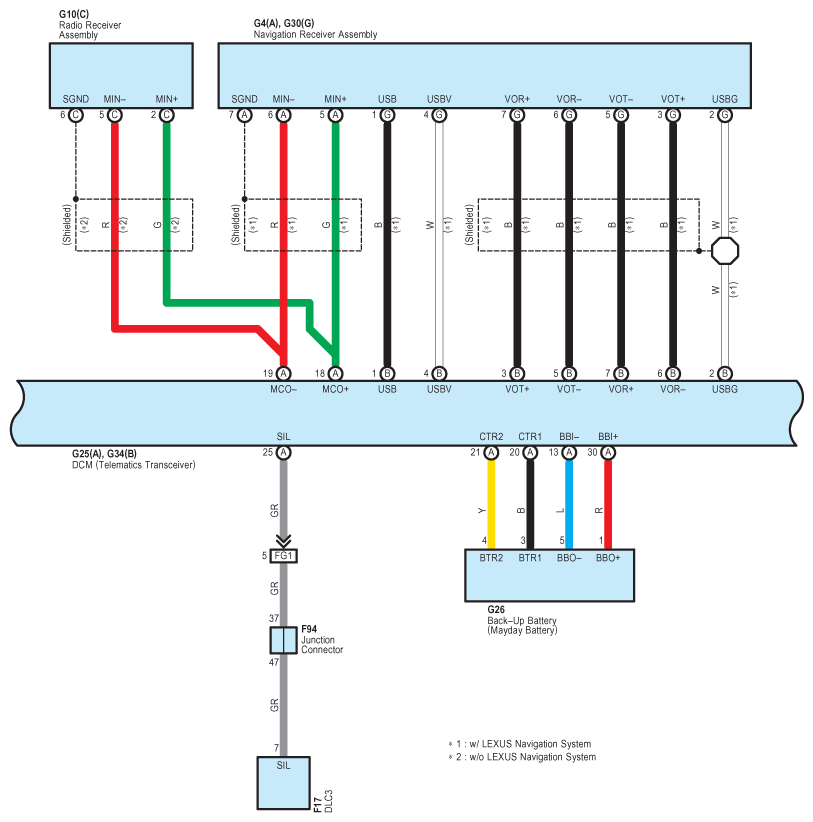

Fig 2: Lexus Enform Or Safety Connect - Circuit Diagram (2 Of 5)
G07574564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

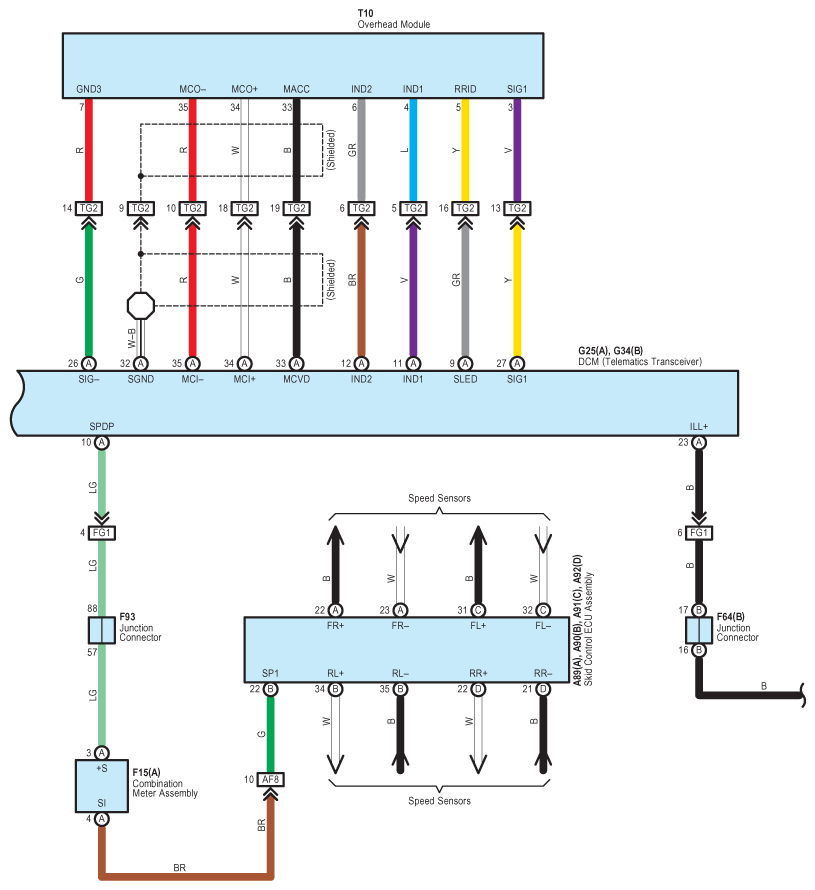

Fig 3: Lexus Enform Or Safety Connect - Circuit Diagram (3 Of 5)
G07574565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

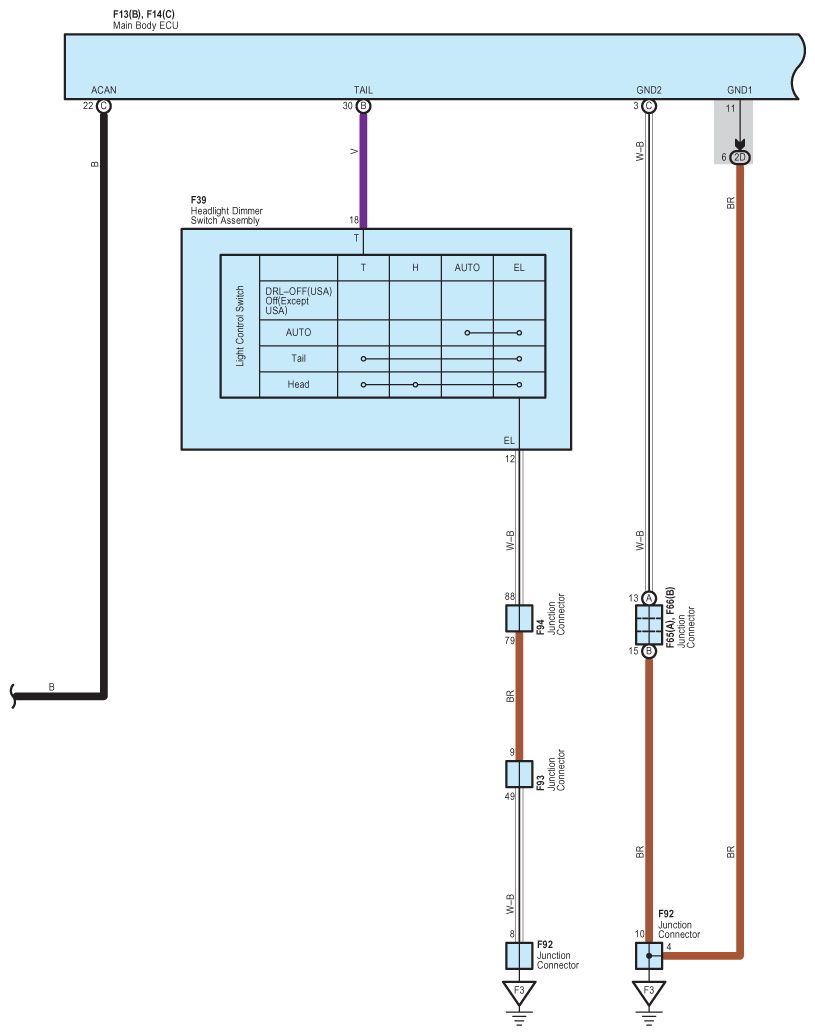

Fig 4: Lexus Enform Or Safety Connect - Circuit Diagram (4 Of 5)
G07574566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

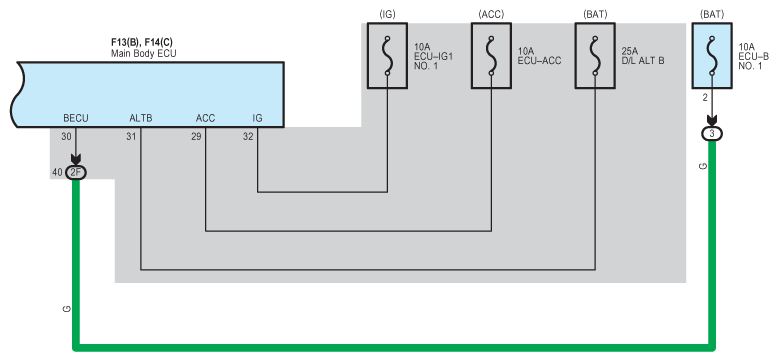

Fig 5: Lexus Enform Or Safety Connect - Circuit Diagram (5 Of 5)
G07574567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
