Multiplex Communication System (LIN)
›
Notes
Multiplex Communication System (LIN): Notes

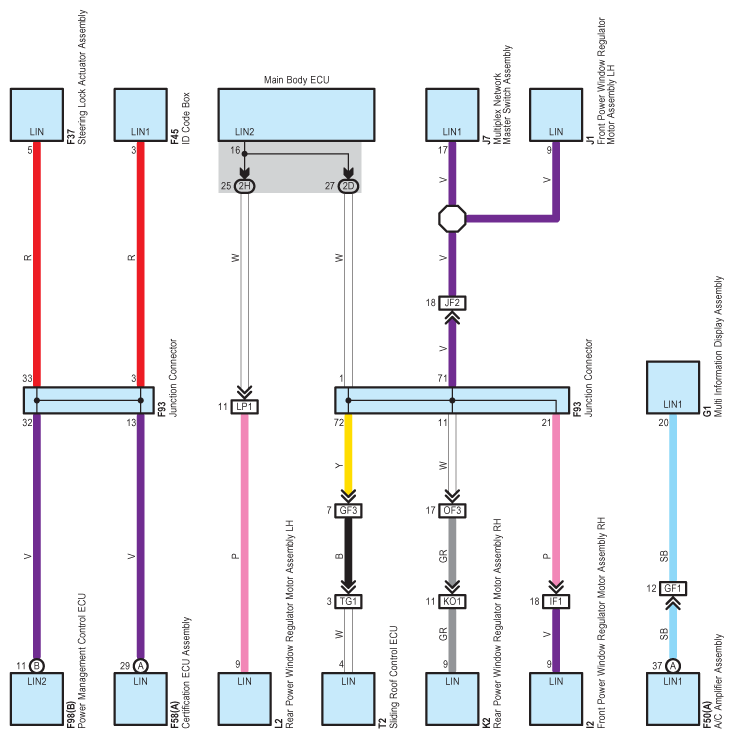

Fig 1: Multiplex Communication System (LIN) - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
