Audio System (Except USA): Notes

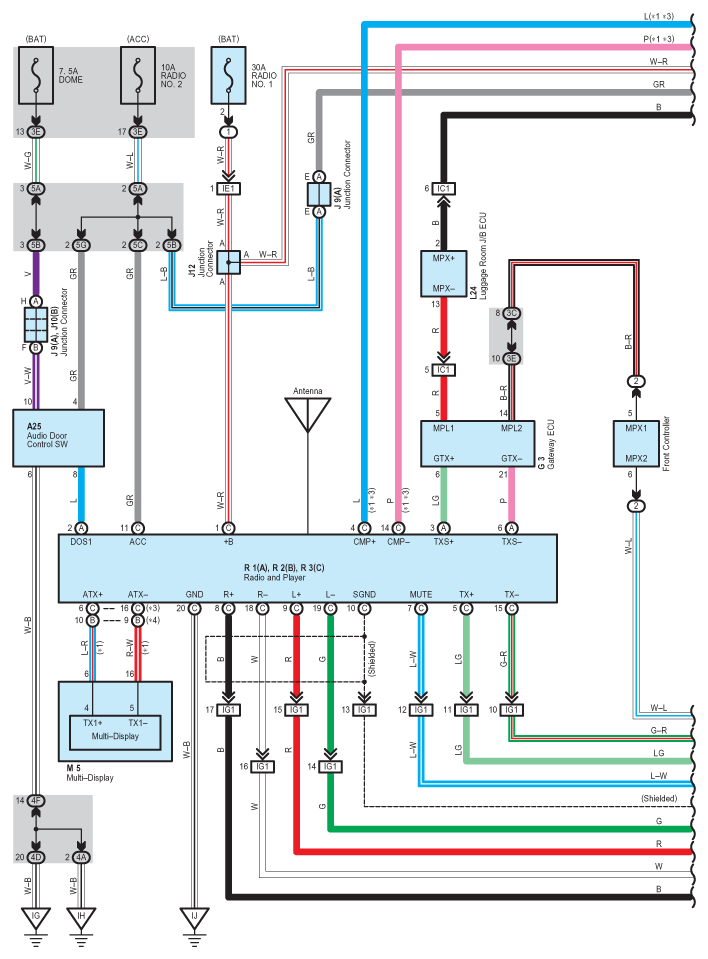

Fig 1: Audio System (Except USA) - Circuit Diagram (1 Of 3)
G07606023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

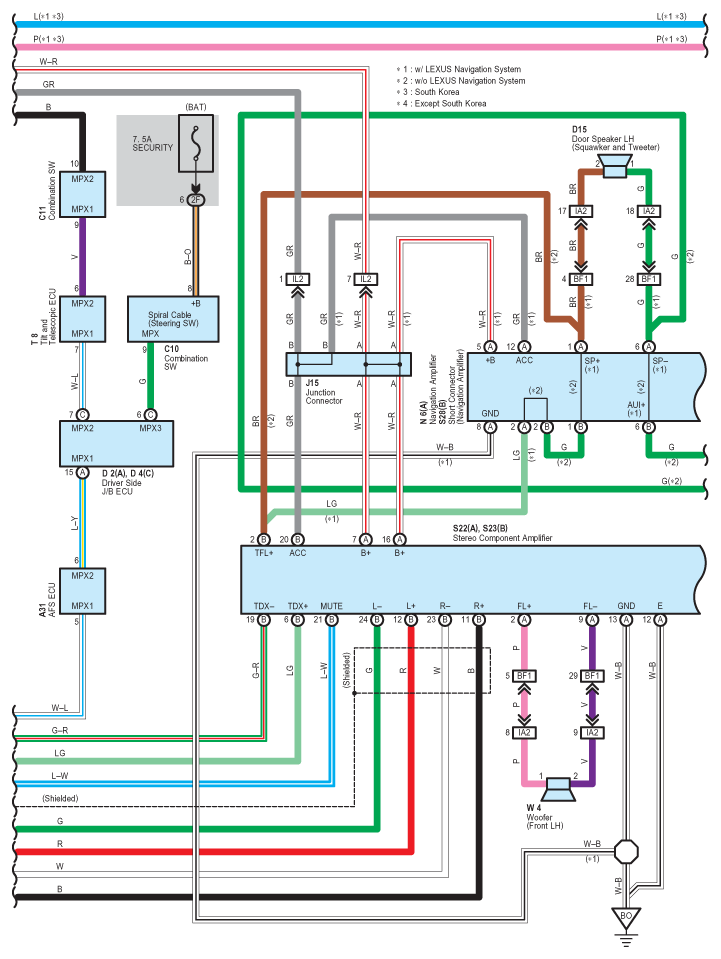

Fig 2: Audio System (Except USA) - Circuit Diagram (2 Of 3)
G07606024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

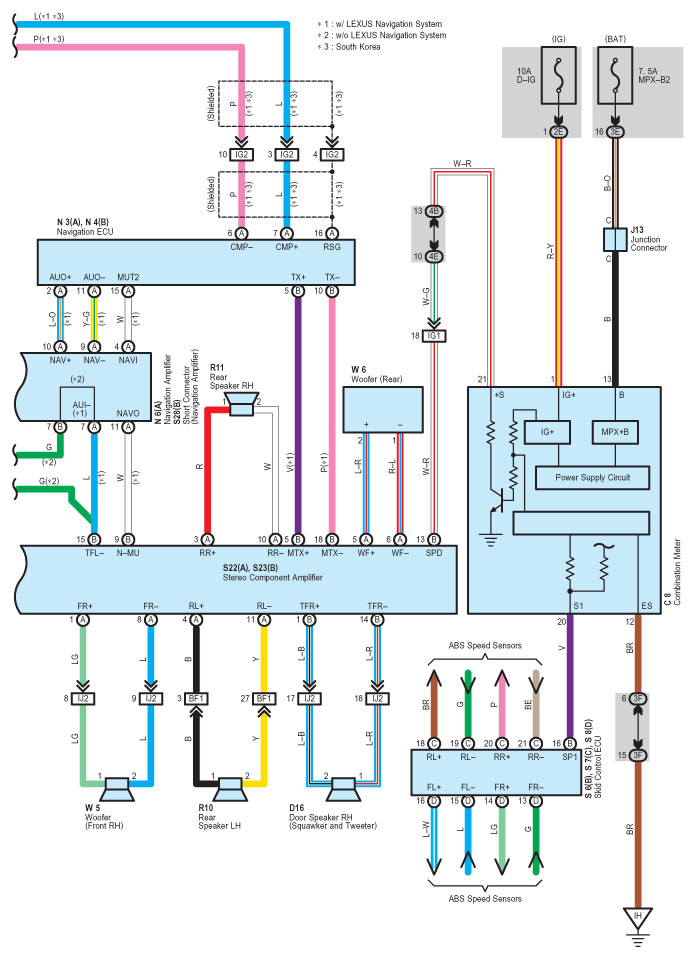

Fig 3: Audio System (Except USA) - Circuit Diagram (3 Of 3)
G07606025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
