Auto Antenna (Except USA)
›
Notes
Auto Antenna (Except USA): Notes

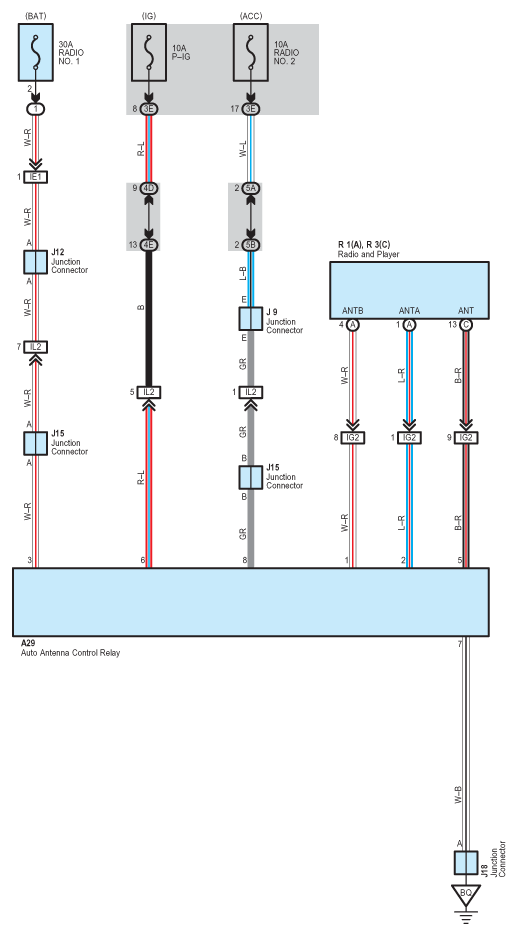

Fig 1: Auto Antenna (Except USA) - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
