Lexus
›
2010
›
SC 430
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Automatic Light Control
›
Notes
Automatic Light Control: Notes

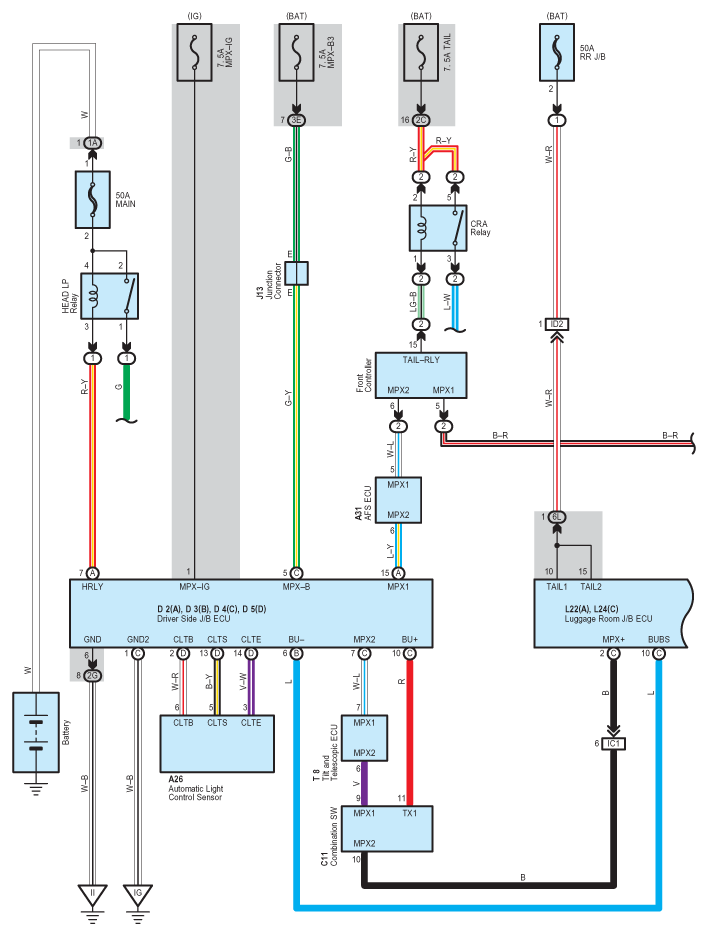

Fig 1: Automatic Light Control - Circuit Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

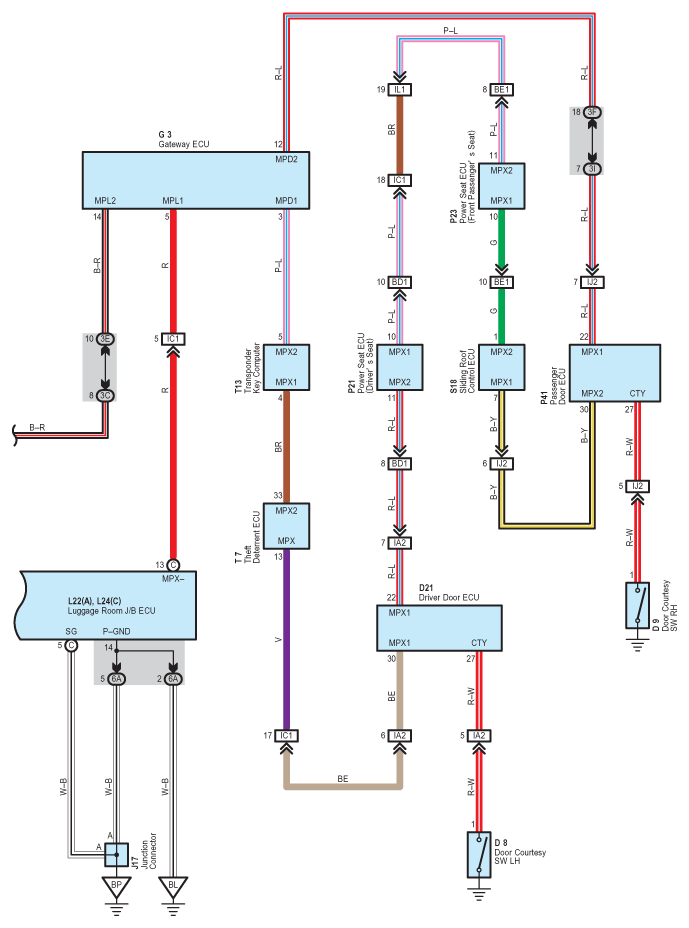

Fig 2: Automatic Light Control - Circuit Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
