Seat Heater: Notes

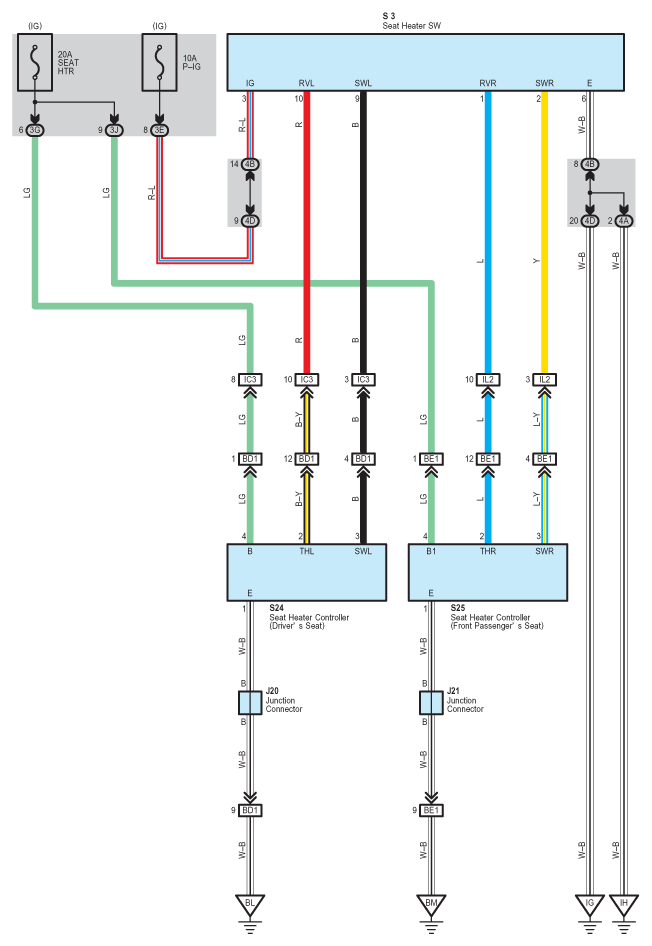

Fig 1: Seat Heater - Circuit Diagram
G07606009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
