Engine Control System (Diagnostic Codes (P0010-P0340)
›
SFI System
›
DTC P0101: Mass Air Flow Circuit Range / Performance Problem
›
Wiring Diagram
DTC P0101: Mass Air Flow Circuit Range / Performance Problem: Wiring Diagram

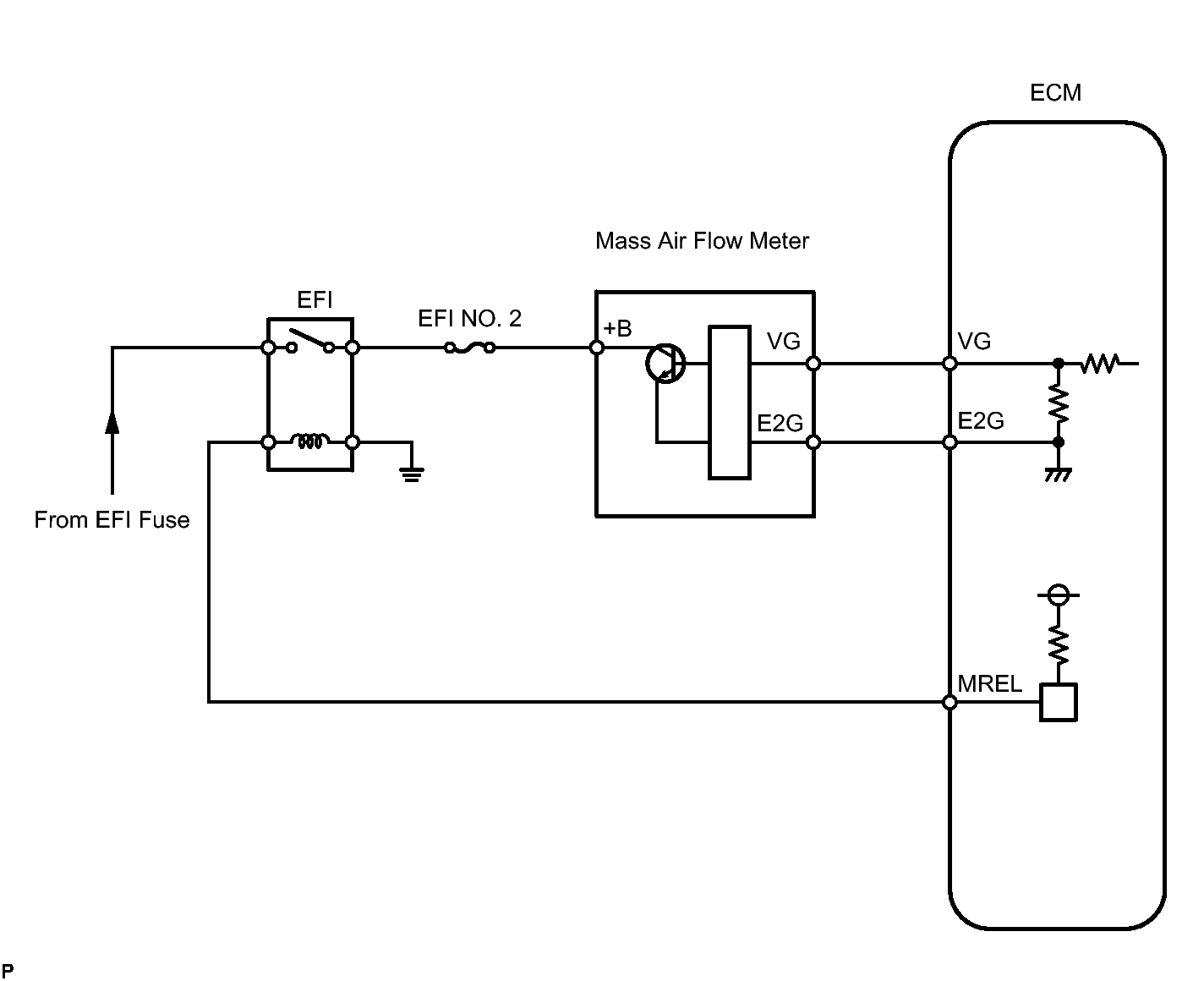

Fig 1: Mass Air Flow - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
