Park / Neutral Position Switch: Components: Illustration

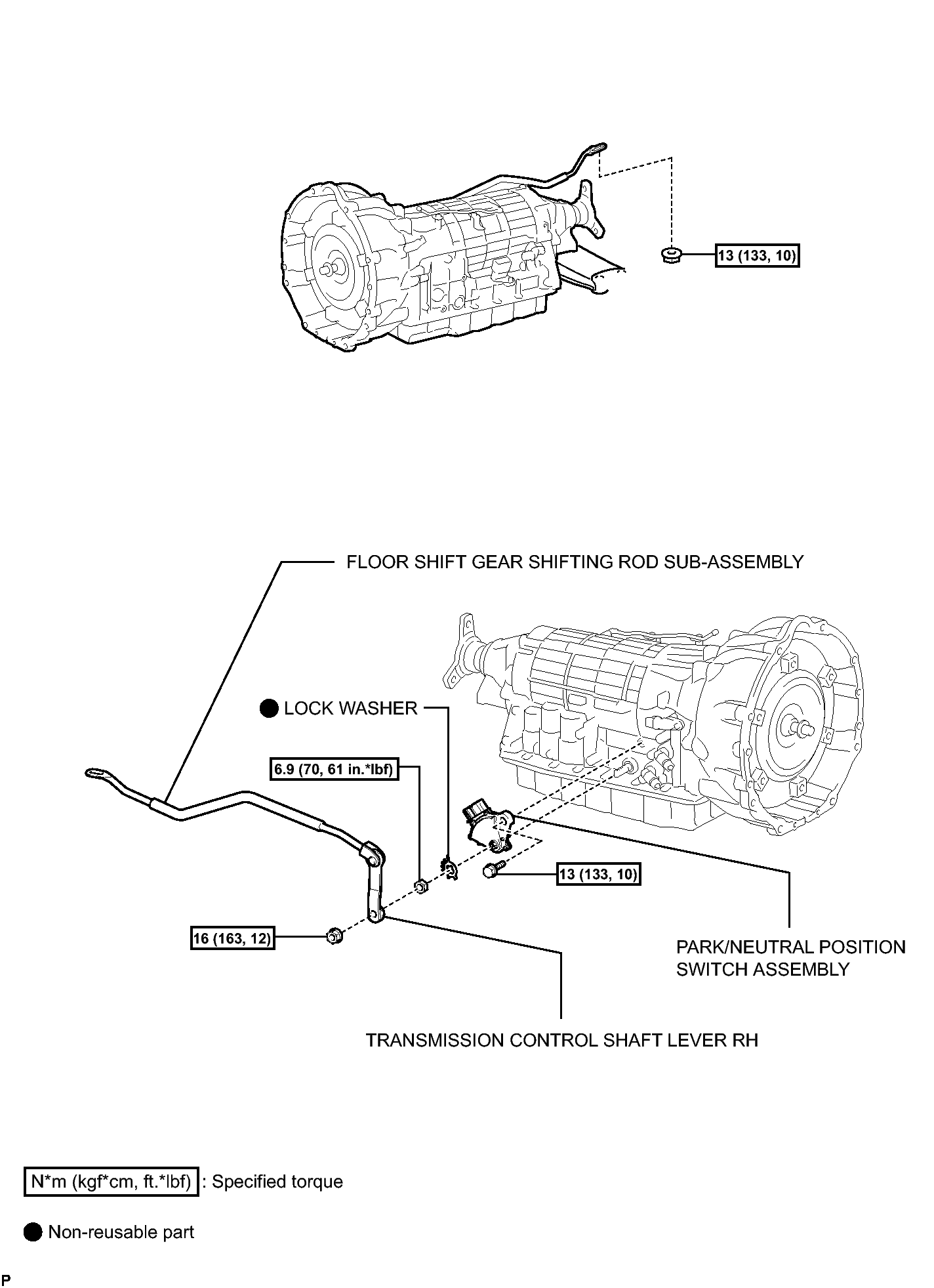

Fig 1: Identifying Park/Neutral Position Switch Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Park/Neutral Position Switch Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
