Heated Steering Wheel System: Notes

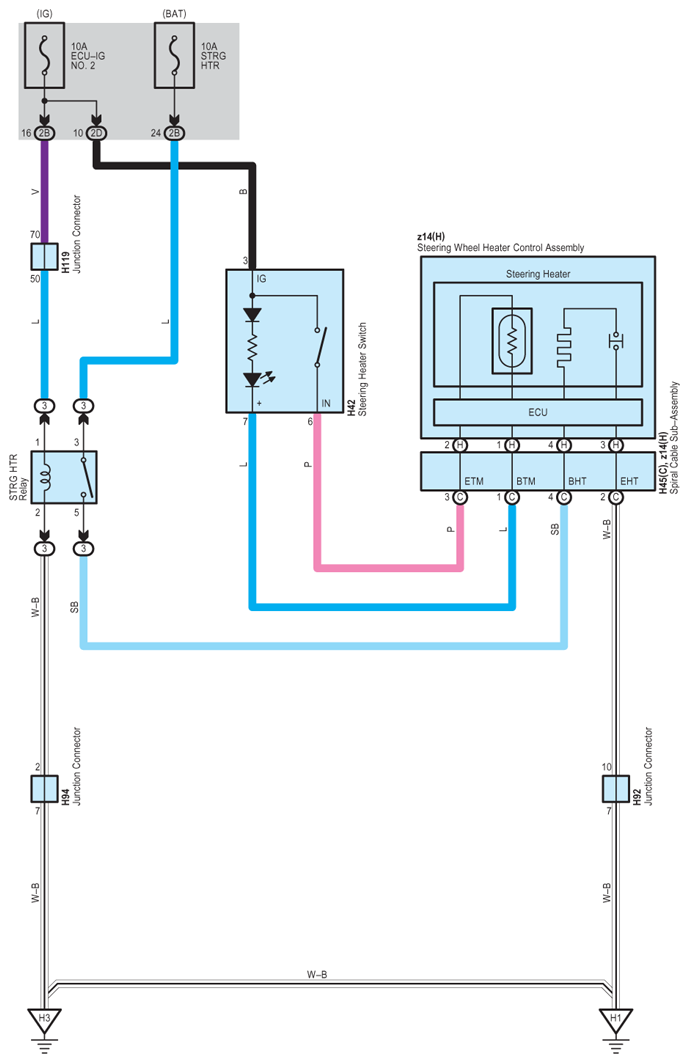

Fig 1: Heated Steering Wheel System - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
