Fuel Pump: Components: Illustration

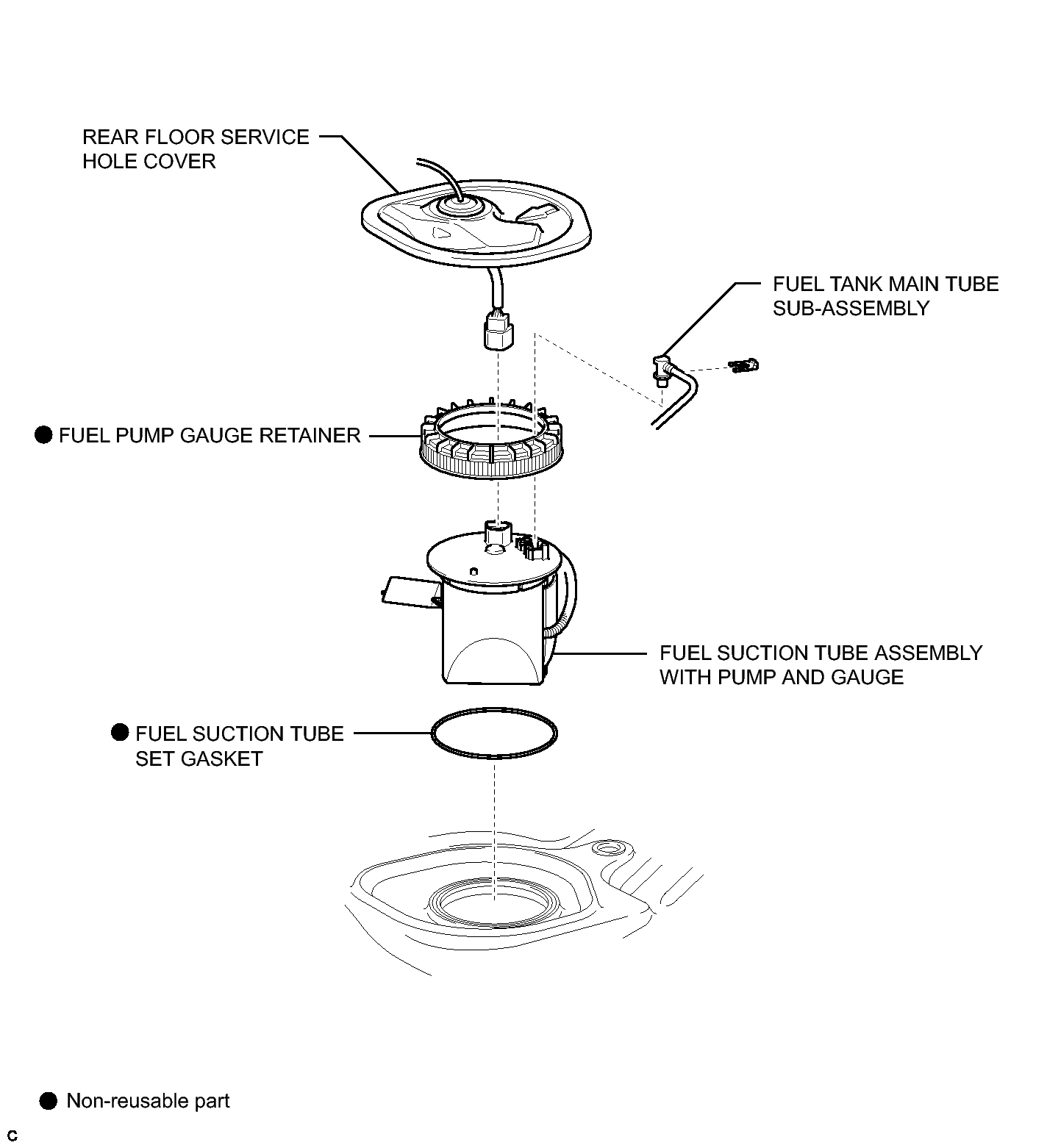

Fig 1: Identifying Fuel Pump Replacement Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Fuel Pump Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

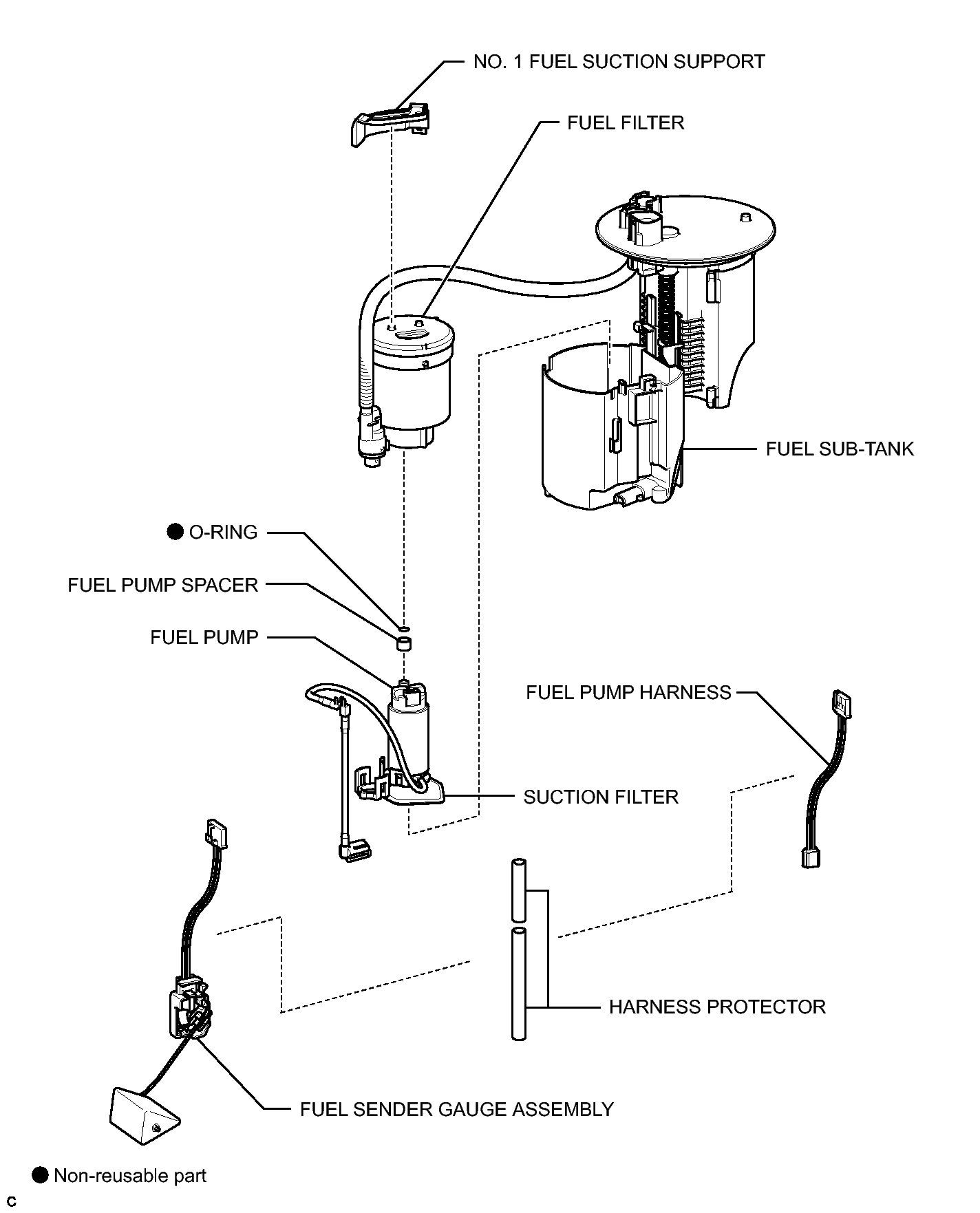

Fig 1: Identifying Fuel Pump Replacement Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Fuel Pump Replacement Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
