Parts Location: Illustration

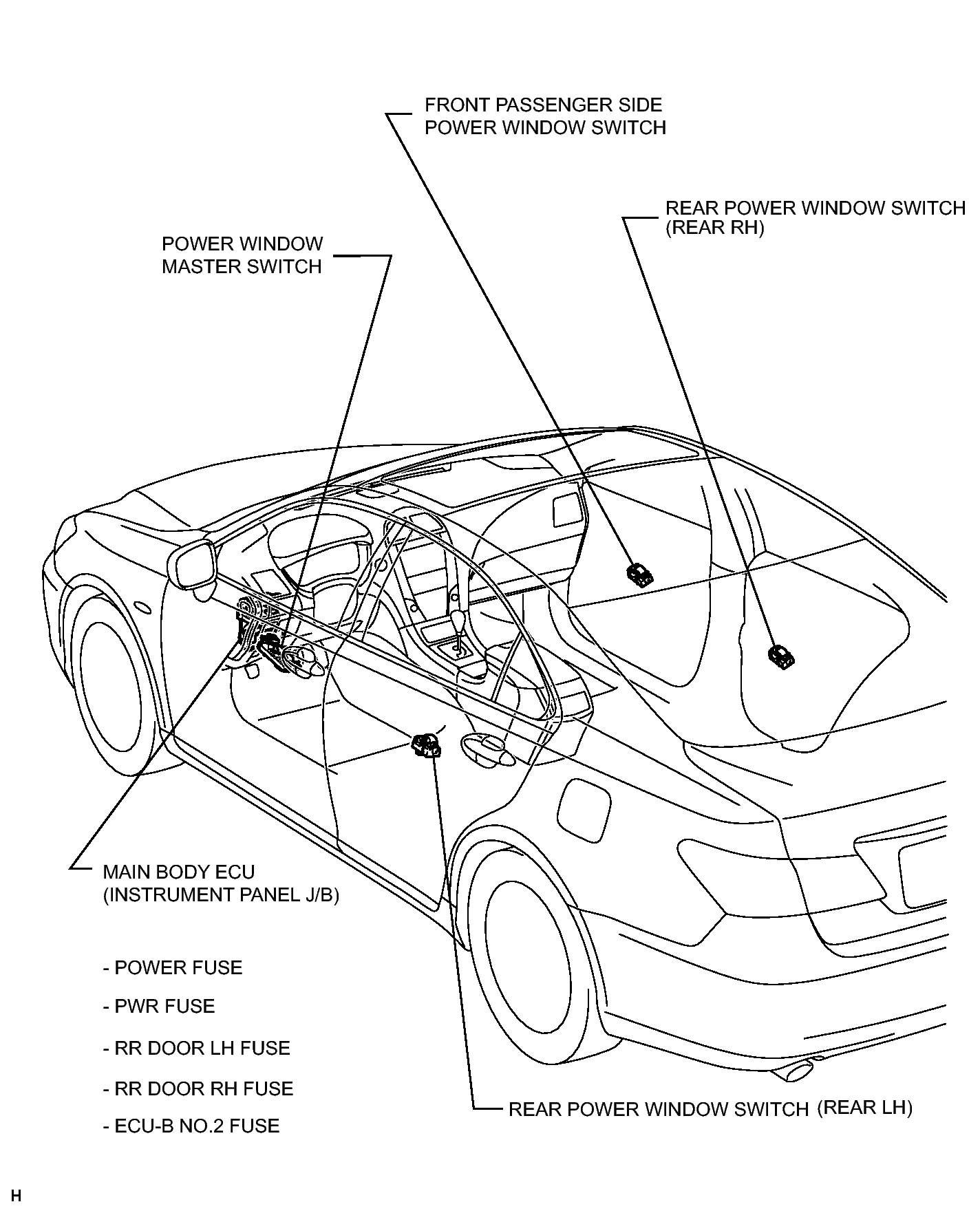

Fig 1: Identifying Power Window Control System Components Location (1 Of 2)
GTY125419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

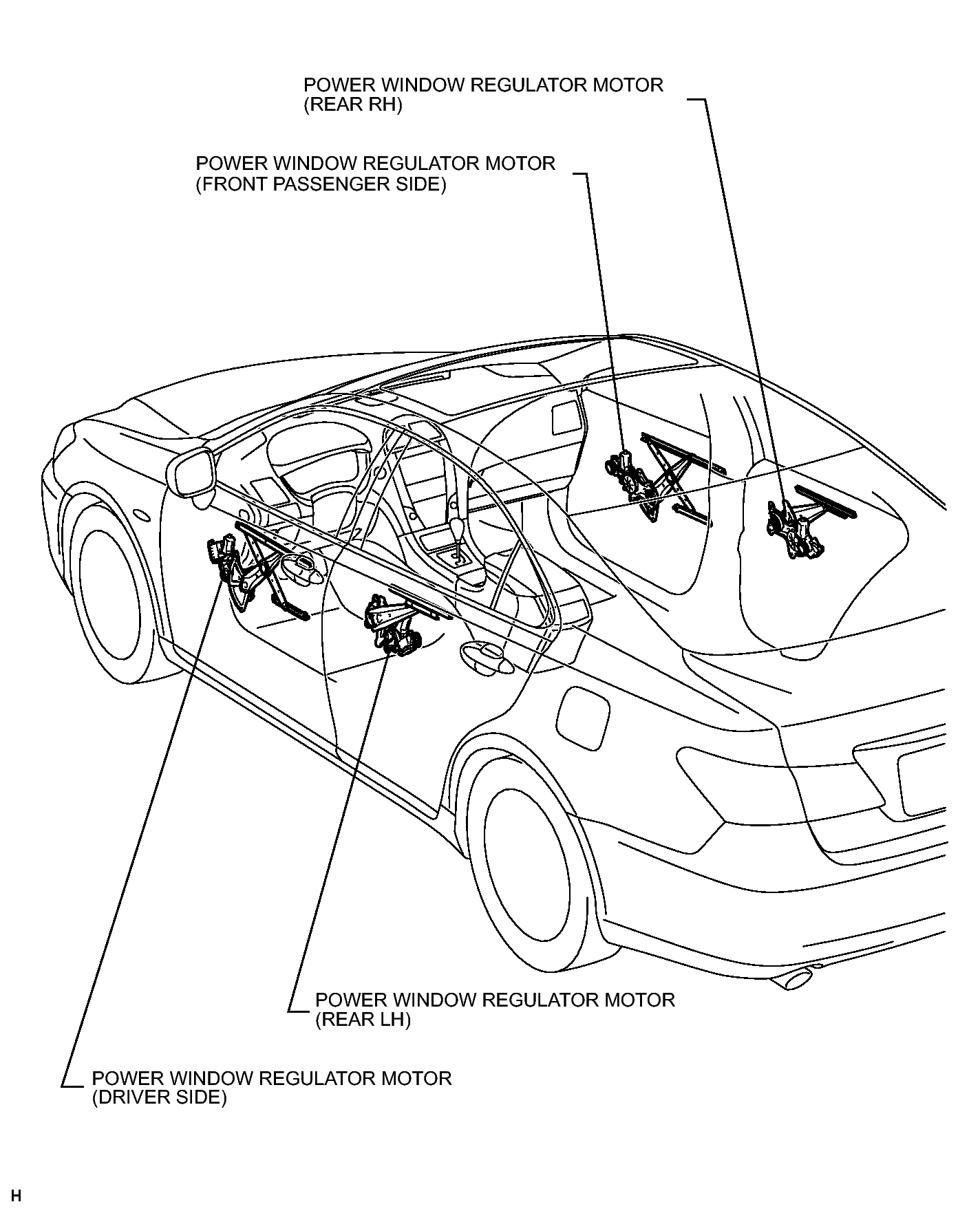

Fig 1: Identifying Power Window Control System Components Location (2 Of 2)
GTY118033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
