Parts Location: Illustration

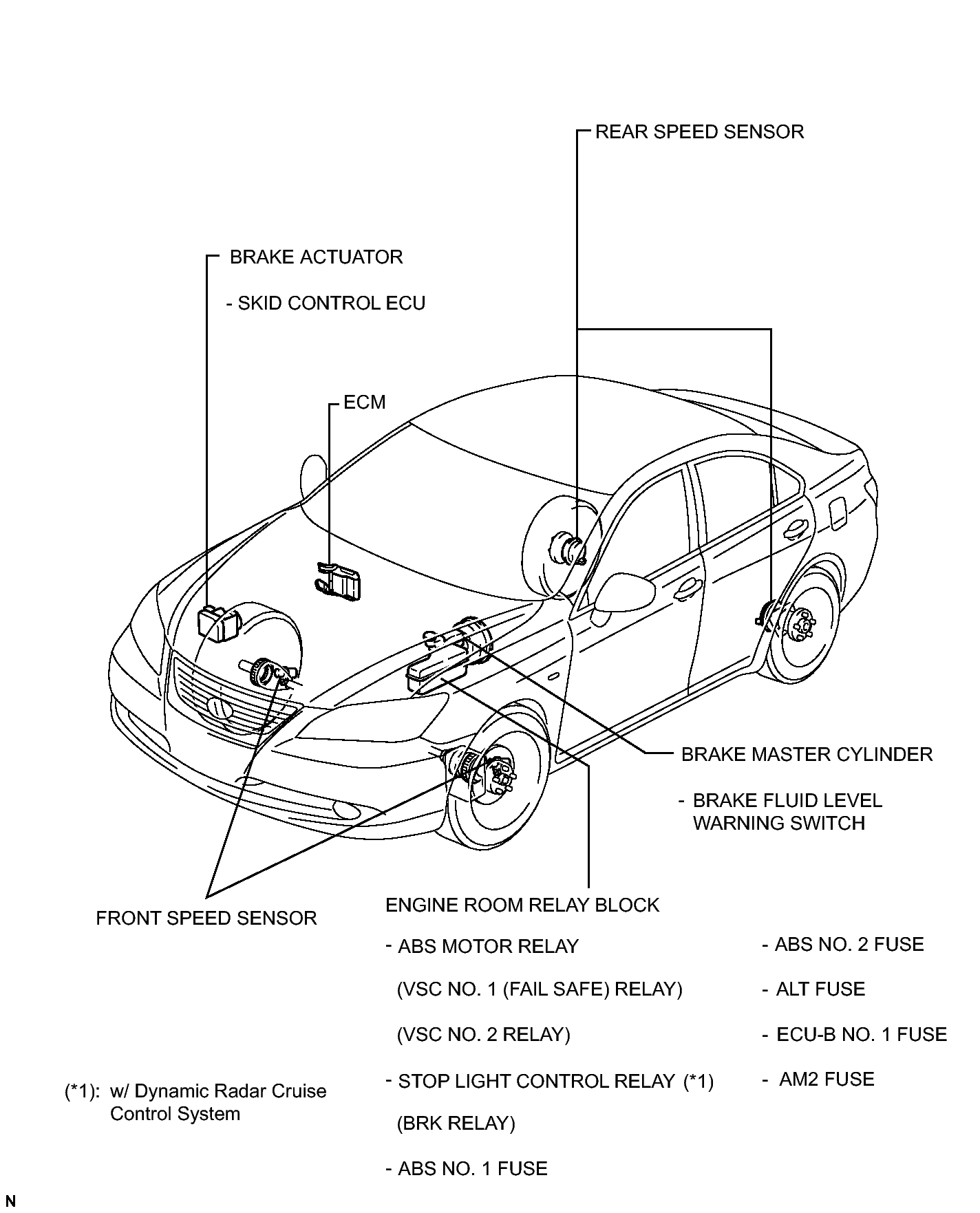

Fig 1: Identifying Vehicle Stability Control System Components Location (1 Of 2)
GTY260048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

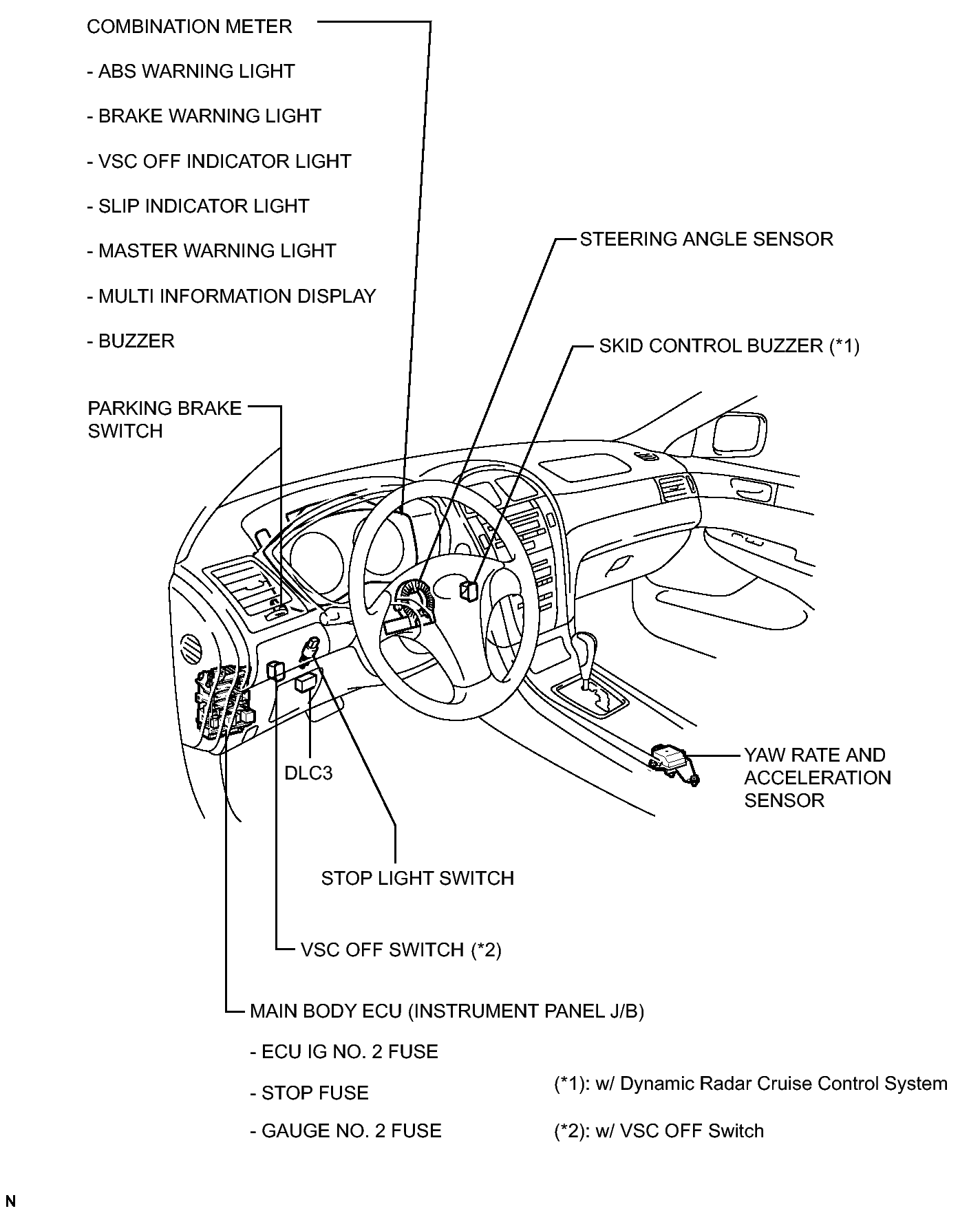

Fig 1: Identifying Vehicle Stability Control System Components Location (2 Of 2)
GTY261219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
