Clock (w/ LEXUS Navigation System)
›
Notes
Clock (w/ LEXUS Navigation System): Notes

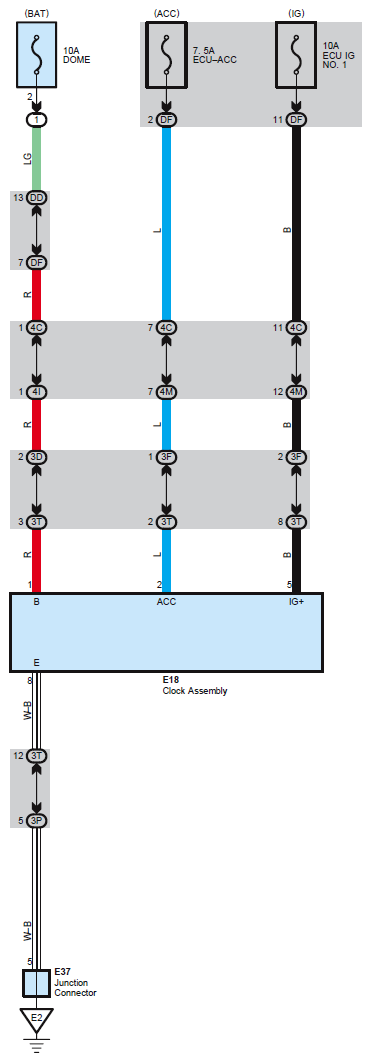

Fig 1: Clock (W/ Lexus Navigation System) - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
