OEM System Circuits: Illumination: Notes

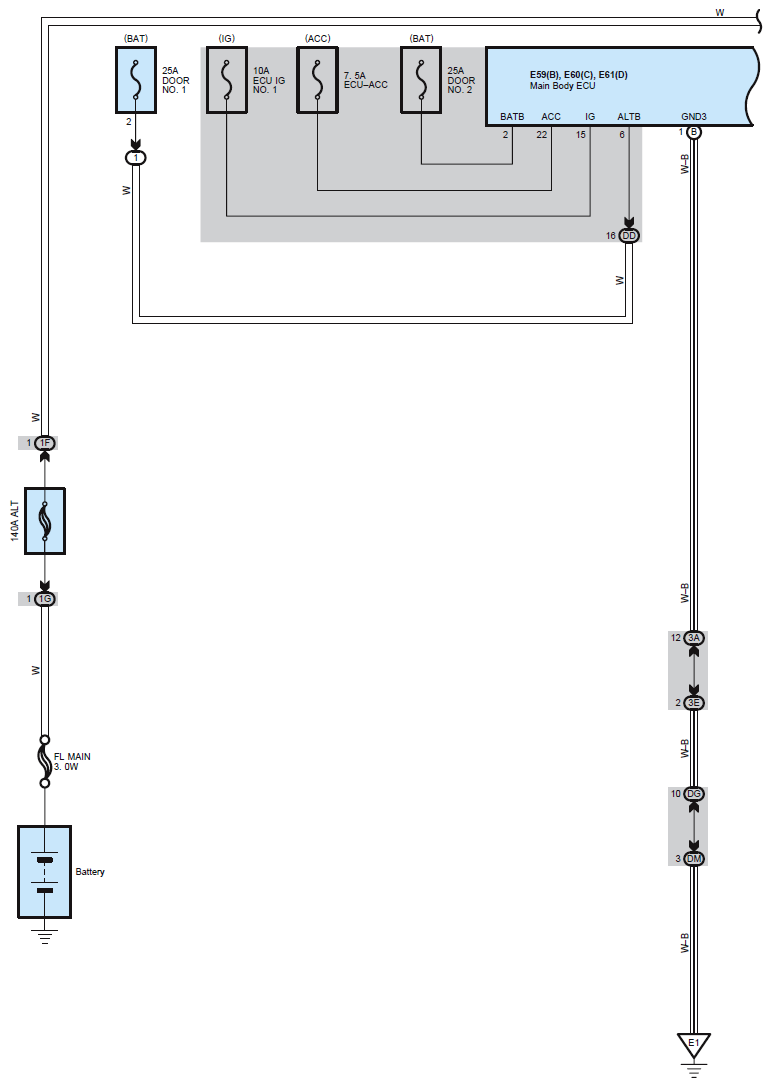

Fig 1: Illumination - Circuit Diagram (1 Of 6)

G07569586

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

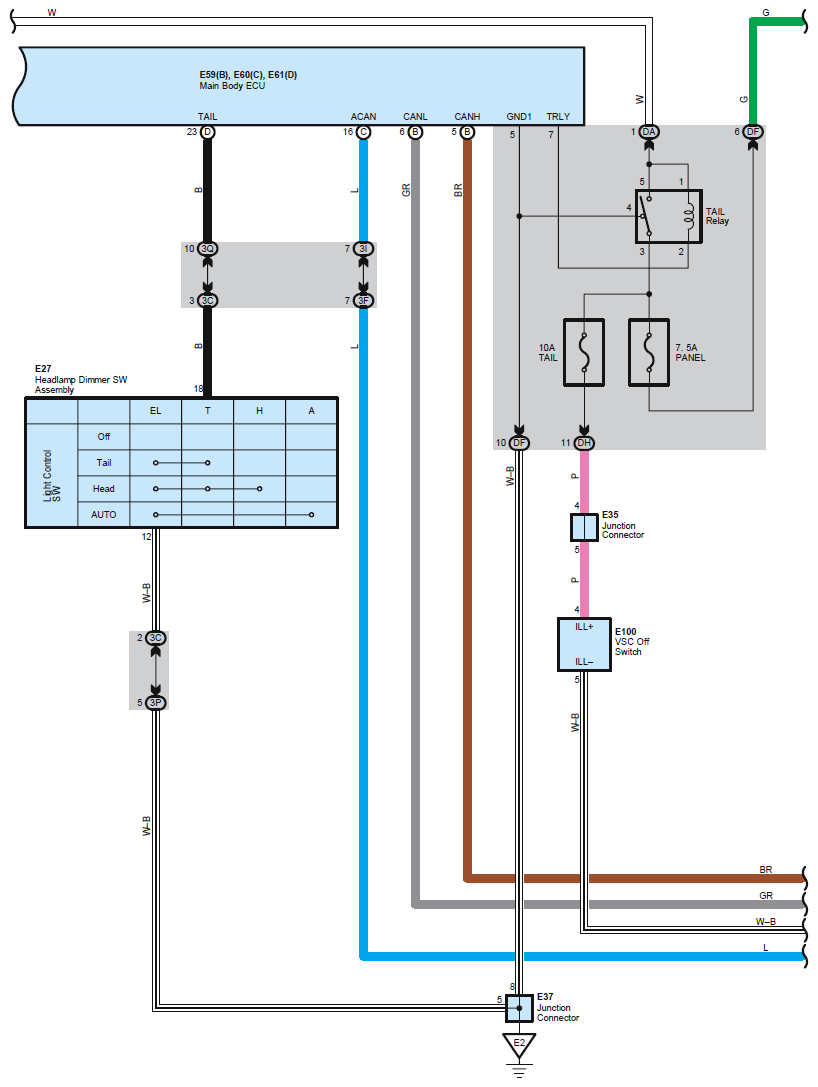

Fig 2: Illumination - Circuit Diagram (2 Of 6)

G07569587

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

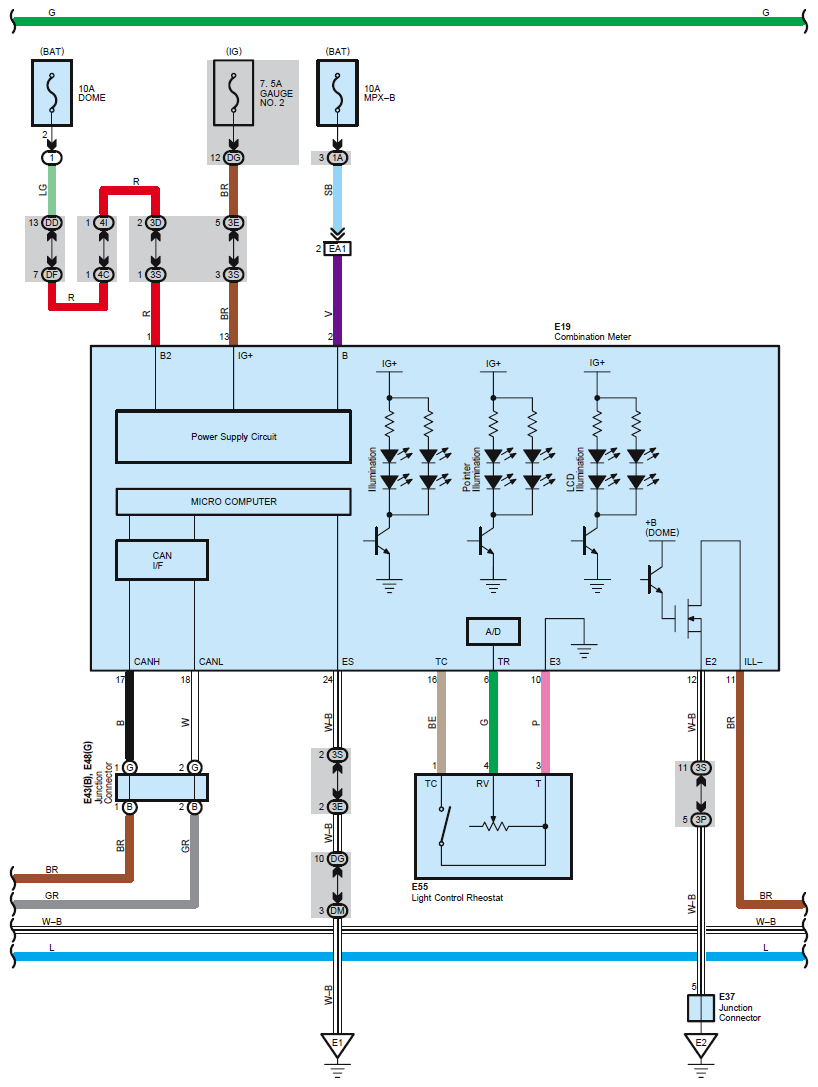

Fig 3: Illumination - Circuit Diagram (3 Of 6)

G07569588

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

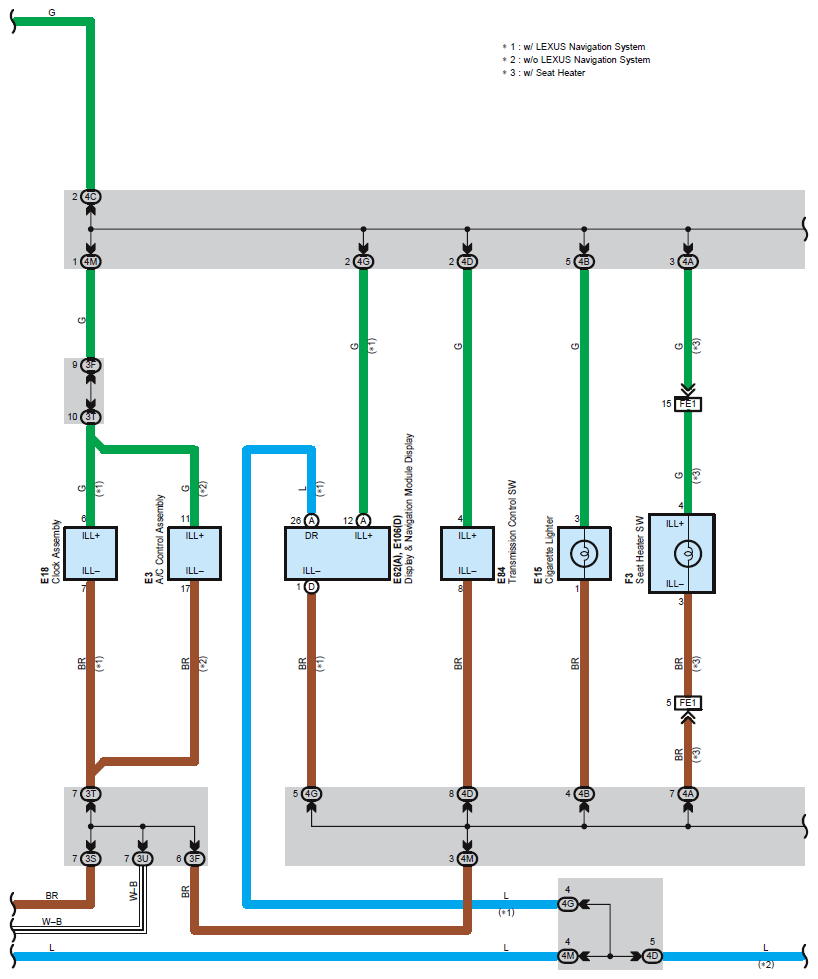

Fig 4: Illumination - Circuit Diagram (4 Of 6)

G07569589

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

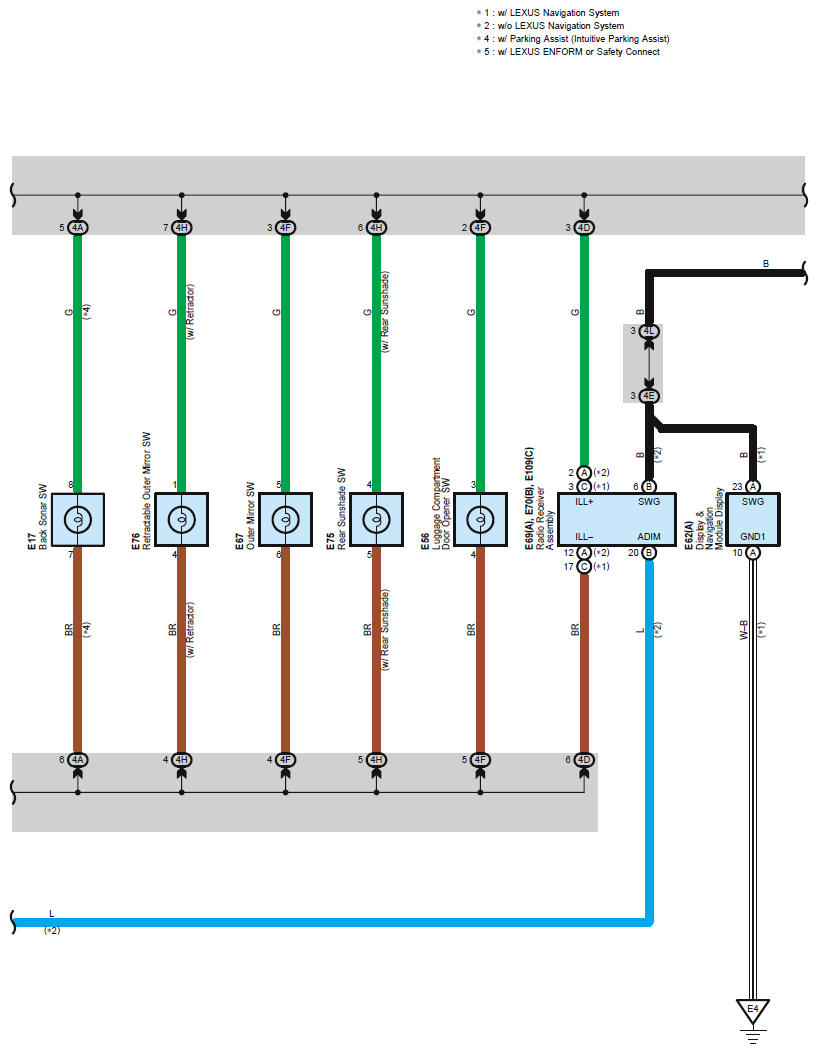

Fig 5: Illumination - Circuit Diagram (5 Of 6)

G07569590

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

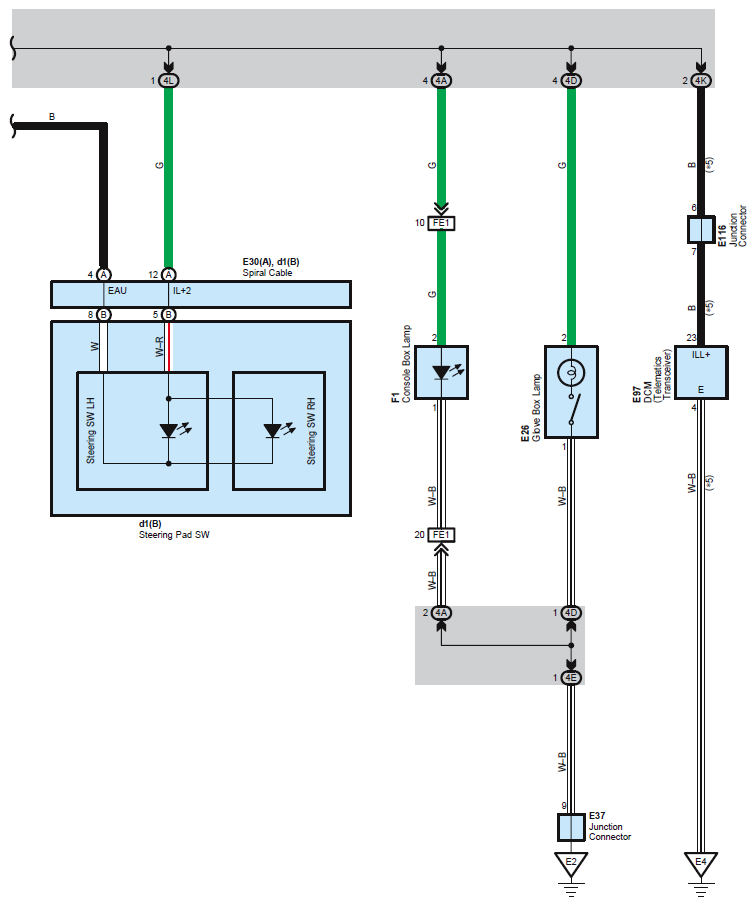

Fig 6: Illumination - Circuit Diagram (6 Of 6)

G07569591

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
