2011
›
ES 350
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Rear Sunshade
›
Notes
Rear Sunshade: Notes

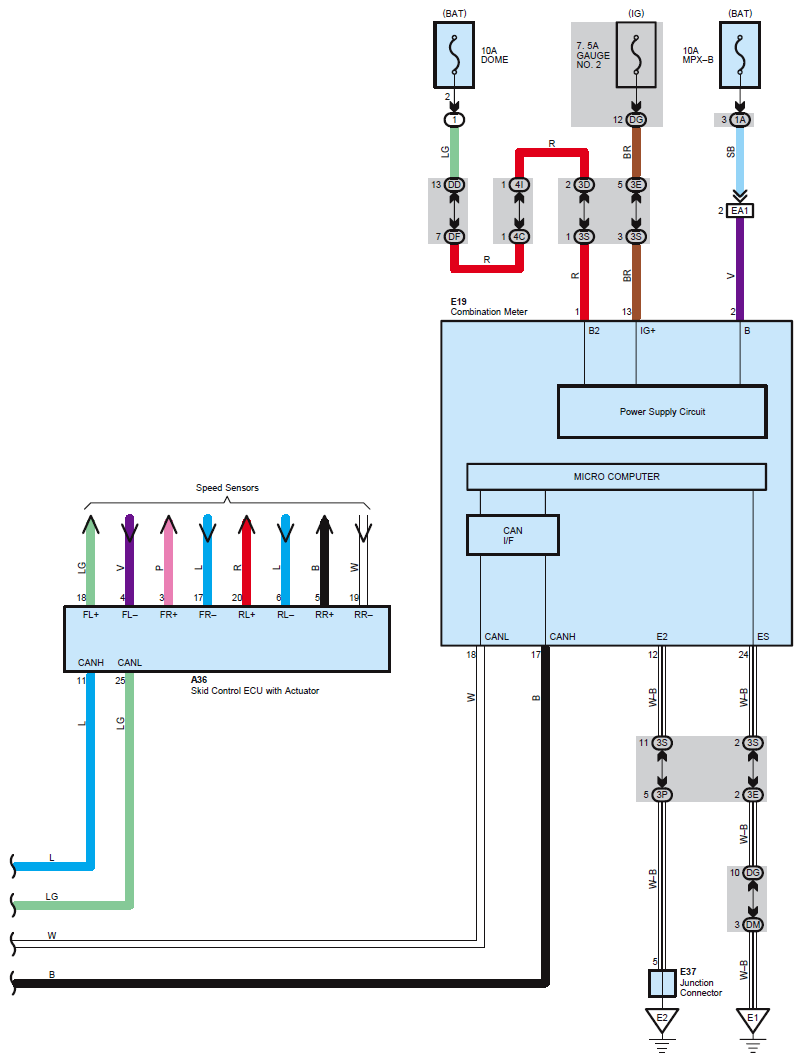

Fig 1: Rear Sunshade - Circuit Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

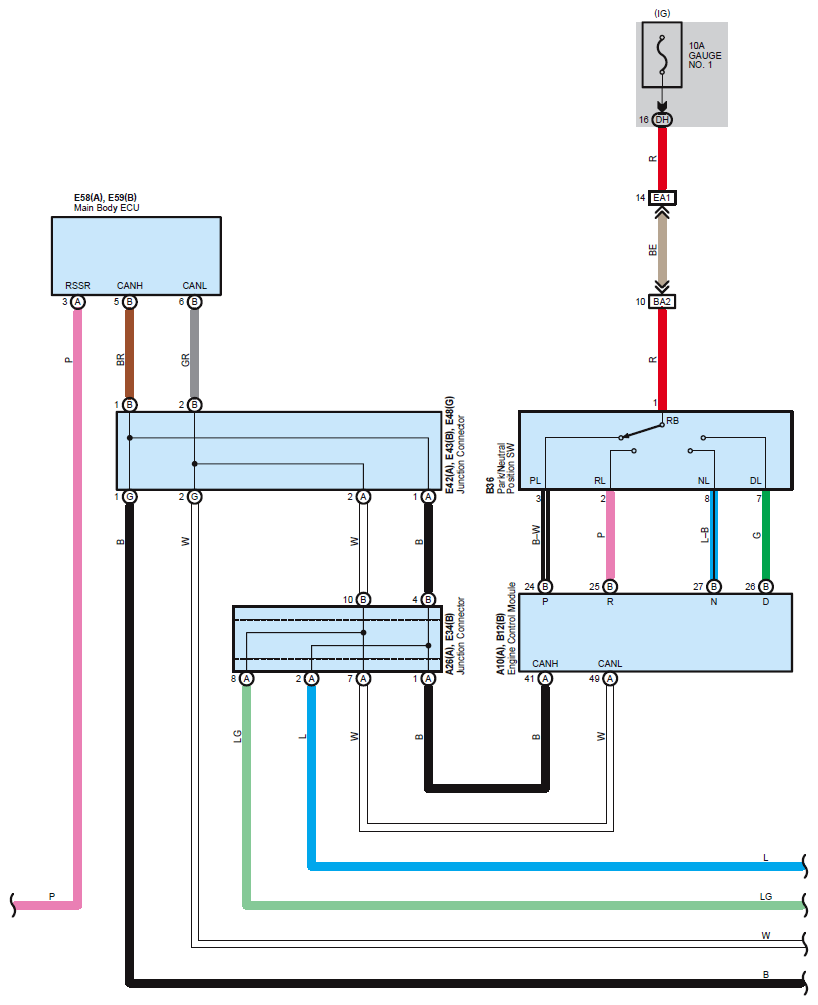

Fig 2: Rear Sunshade - Circuit Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

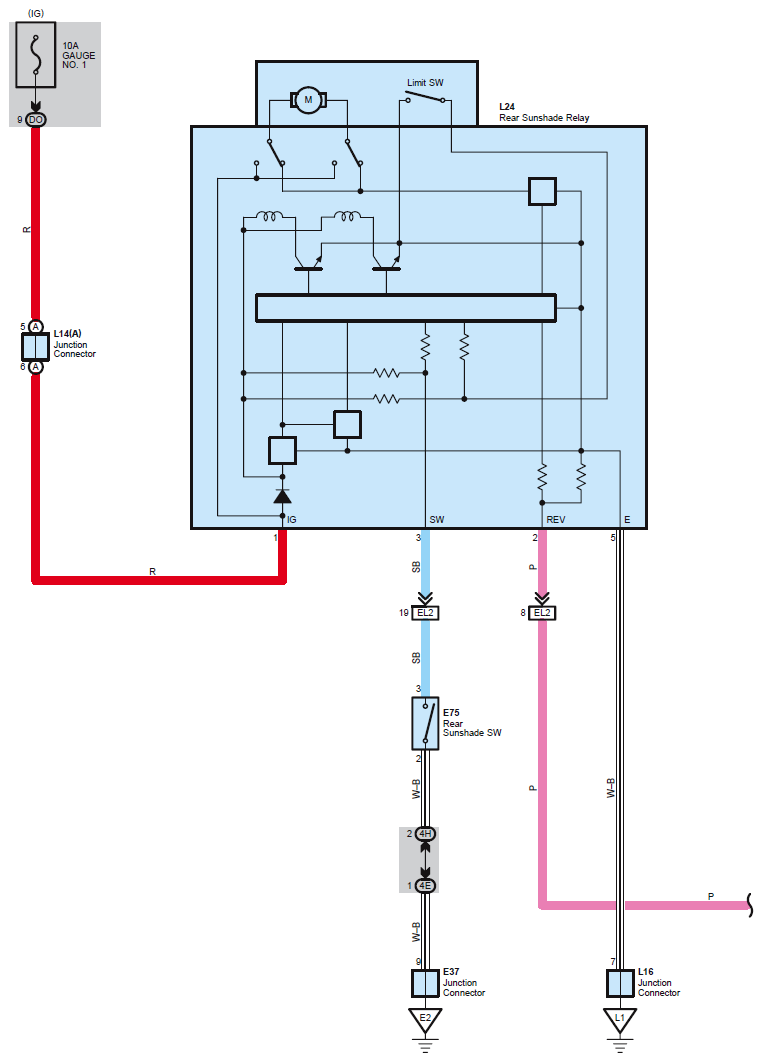

Fig 3: Rear Sunshade - Circuit Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
