Starting System (Inspection)
›
Starting System
›
System Diagram
›
System Diagram
System Diagram

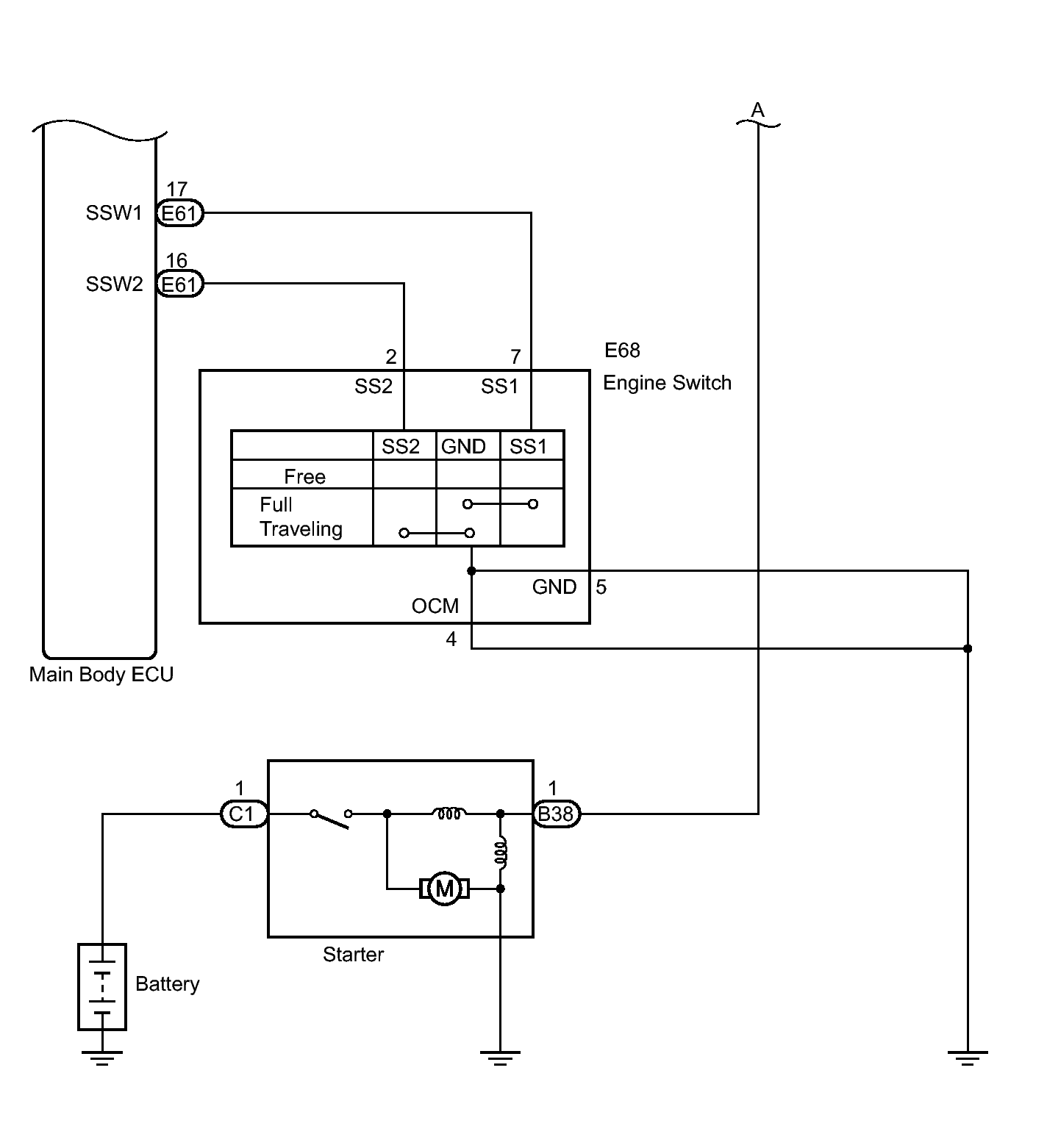

Fig 1: Identifying Starting System Wiring Diagram (1 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

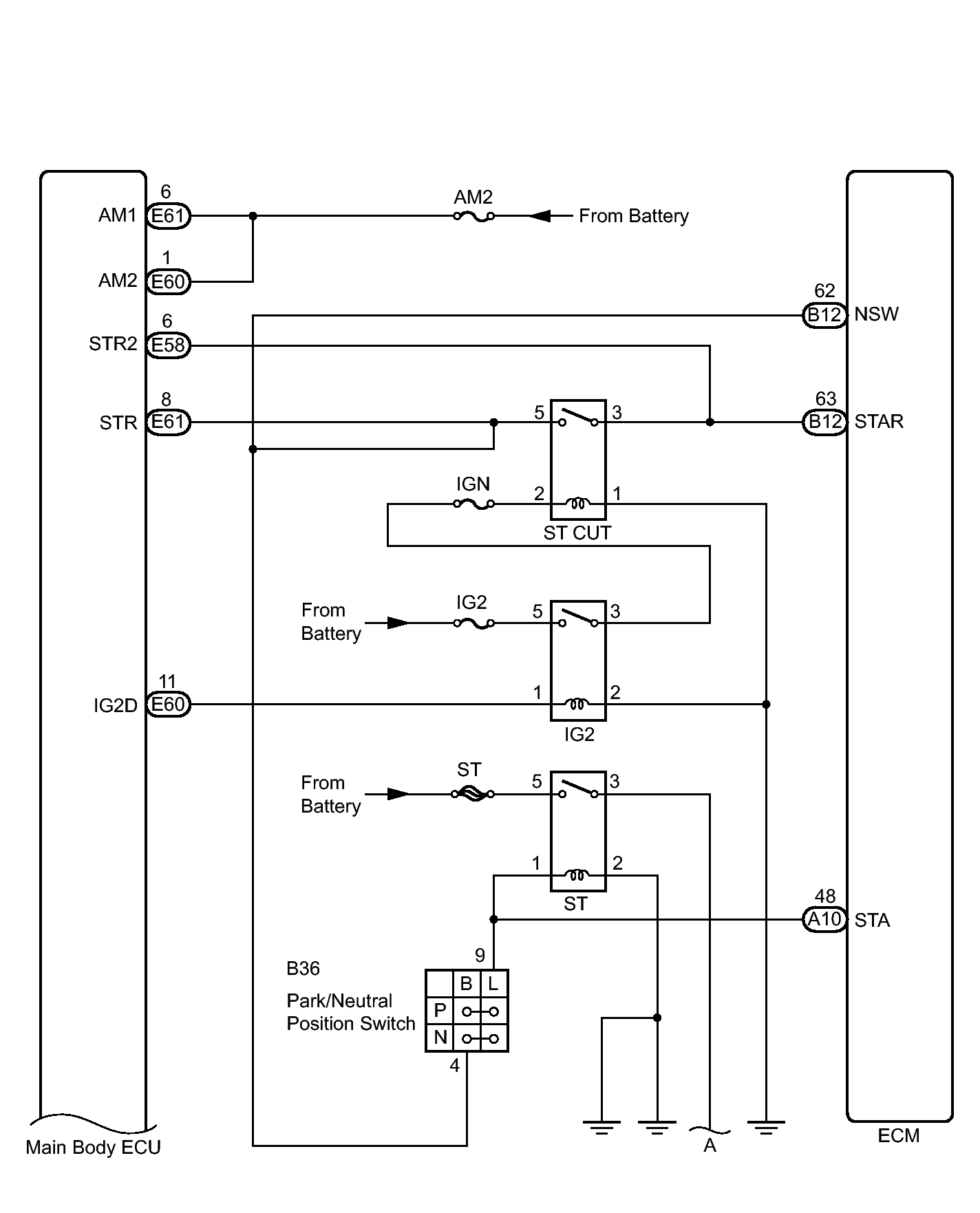

Fig 2: Identifying Starting System Wiring Diagram (2 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
