Parts Location: Illustration

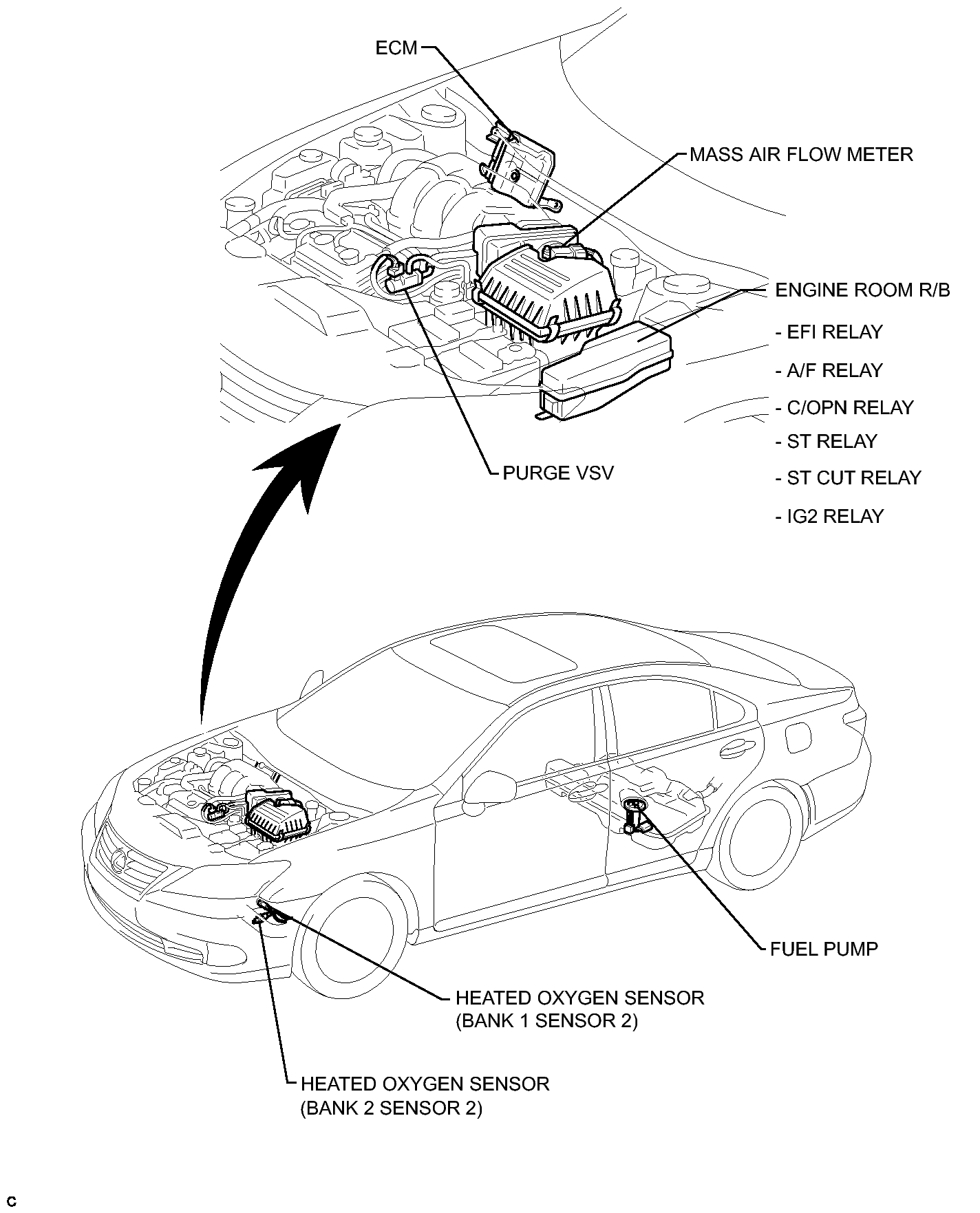

Fig 1: Identifying SFI System Components Location (1 Of 4)
GTY255804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

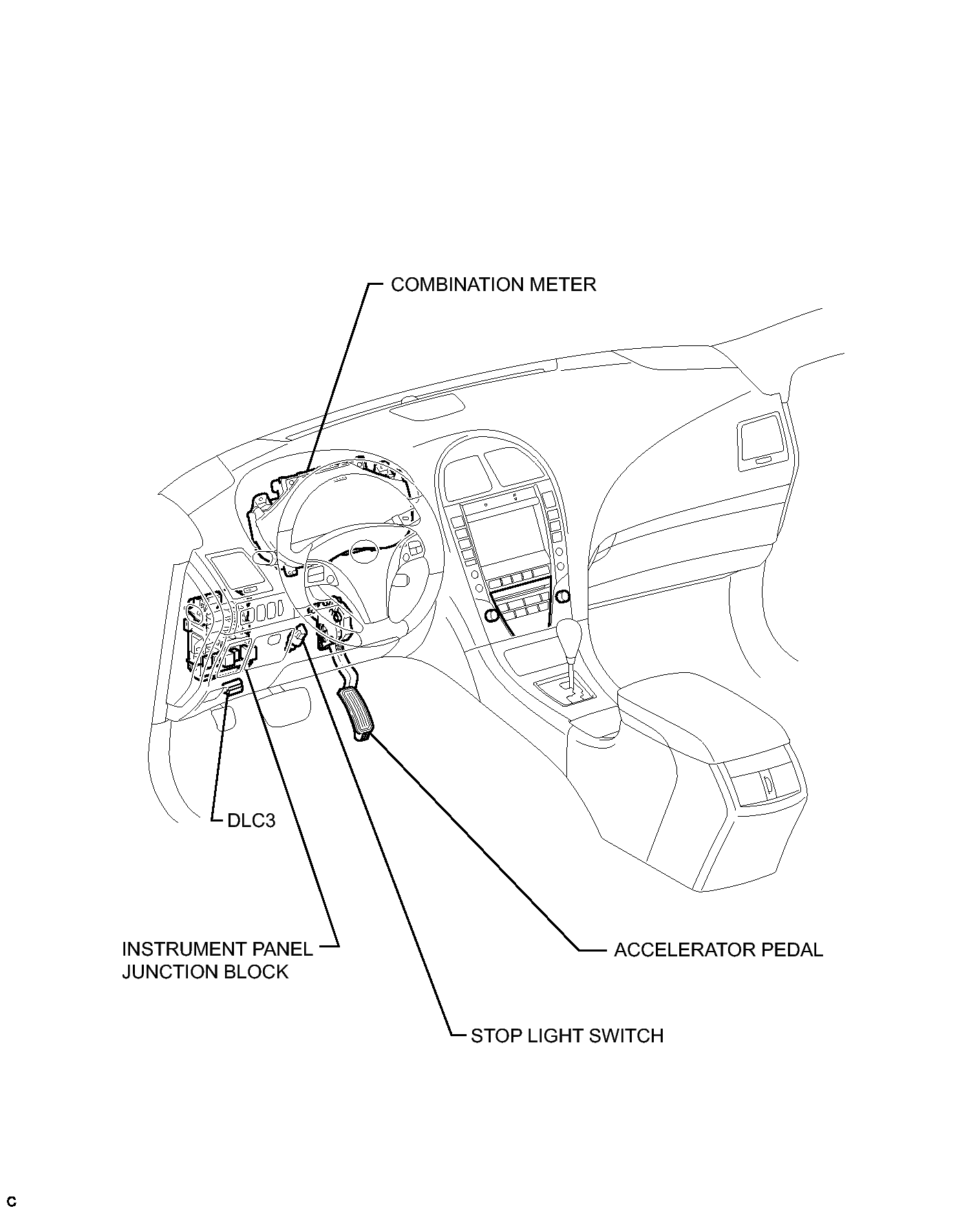

Fig 1: Identifying SFI System Components Location (2 Of 4)
GTY353914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

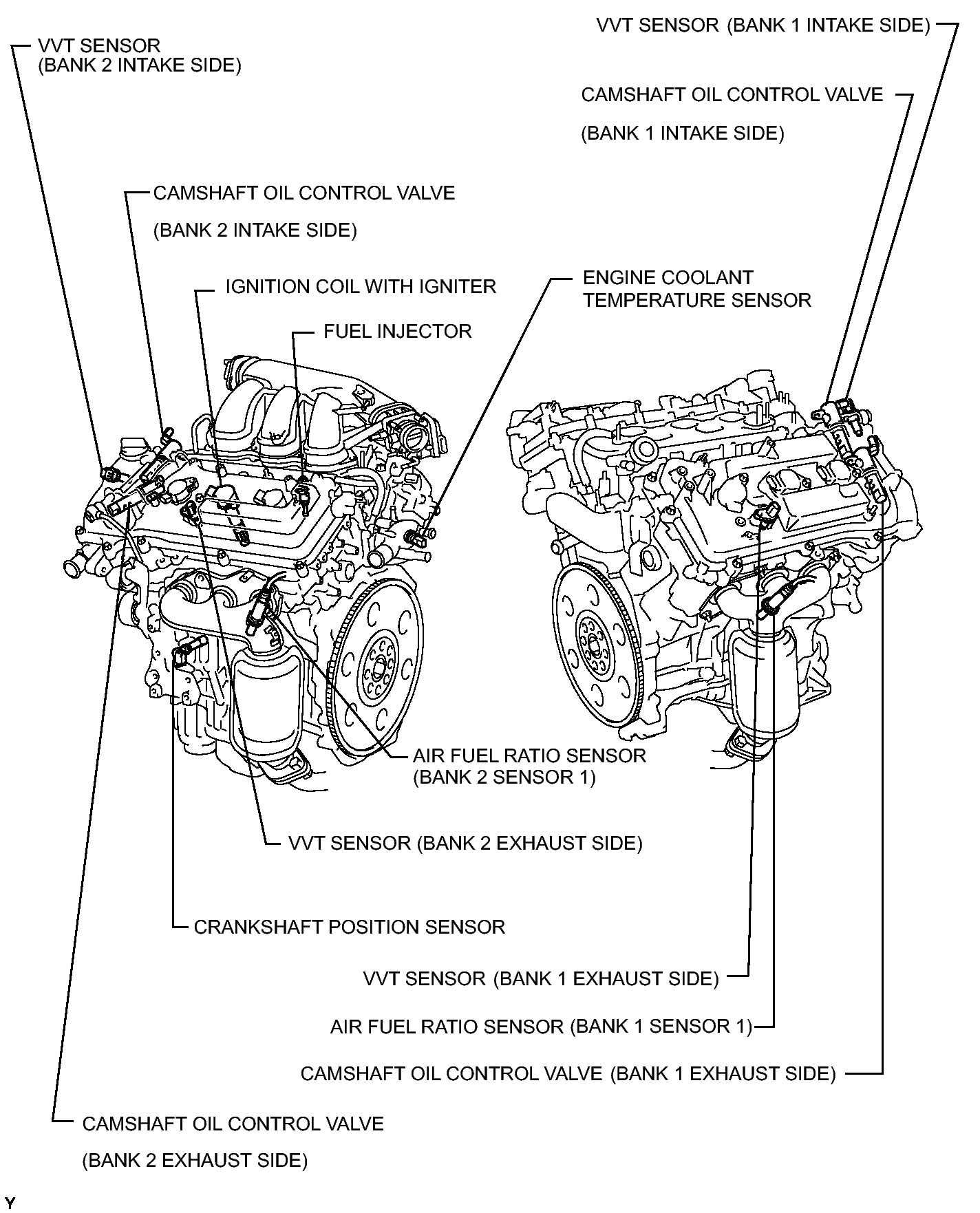

Fig 1: Identifying SFI System Components Location (3 Of 4)
GTY276274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

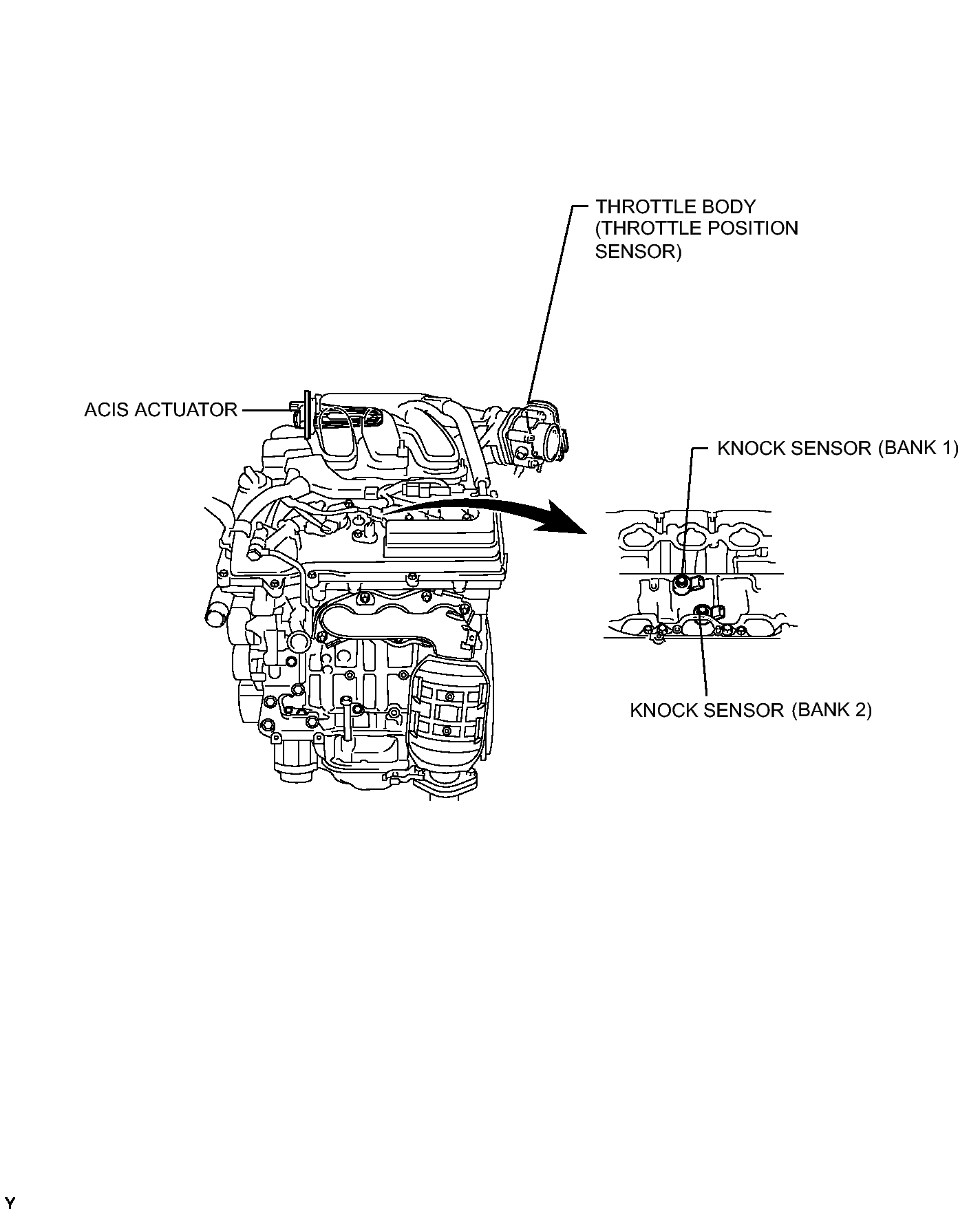

Fig 1: Identifying SFI System Components Location (4 Of 4)
GTY145716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
