System Diagram

The configuration of the electronic control system in the U660E automatic transaxle is as shown.

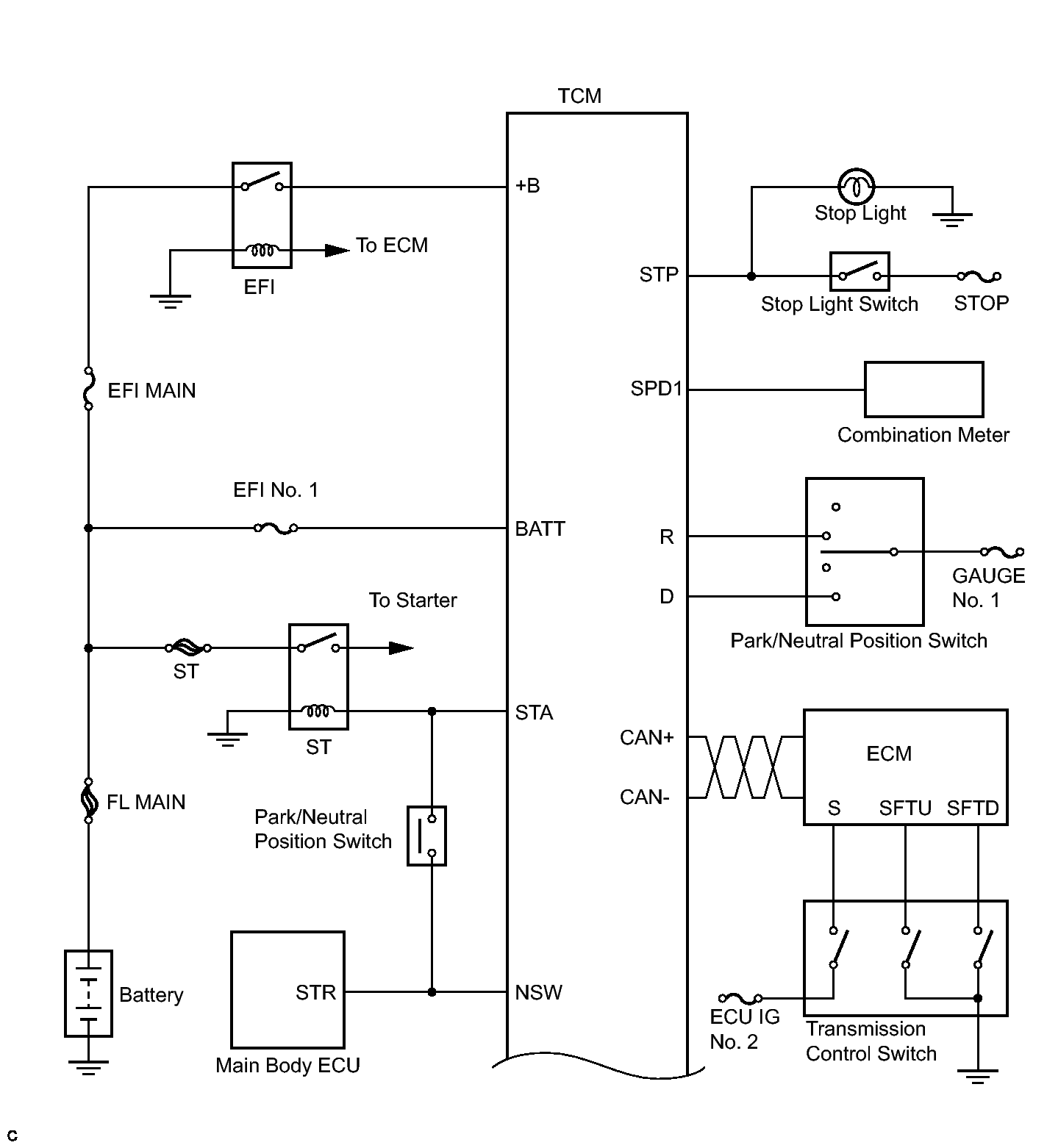

Fig 1: Identifying Automatic Transaxle System Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

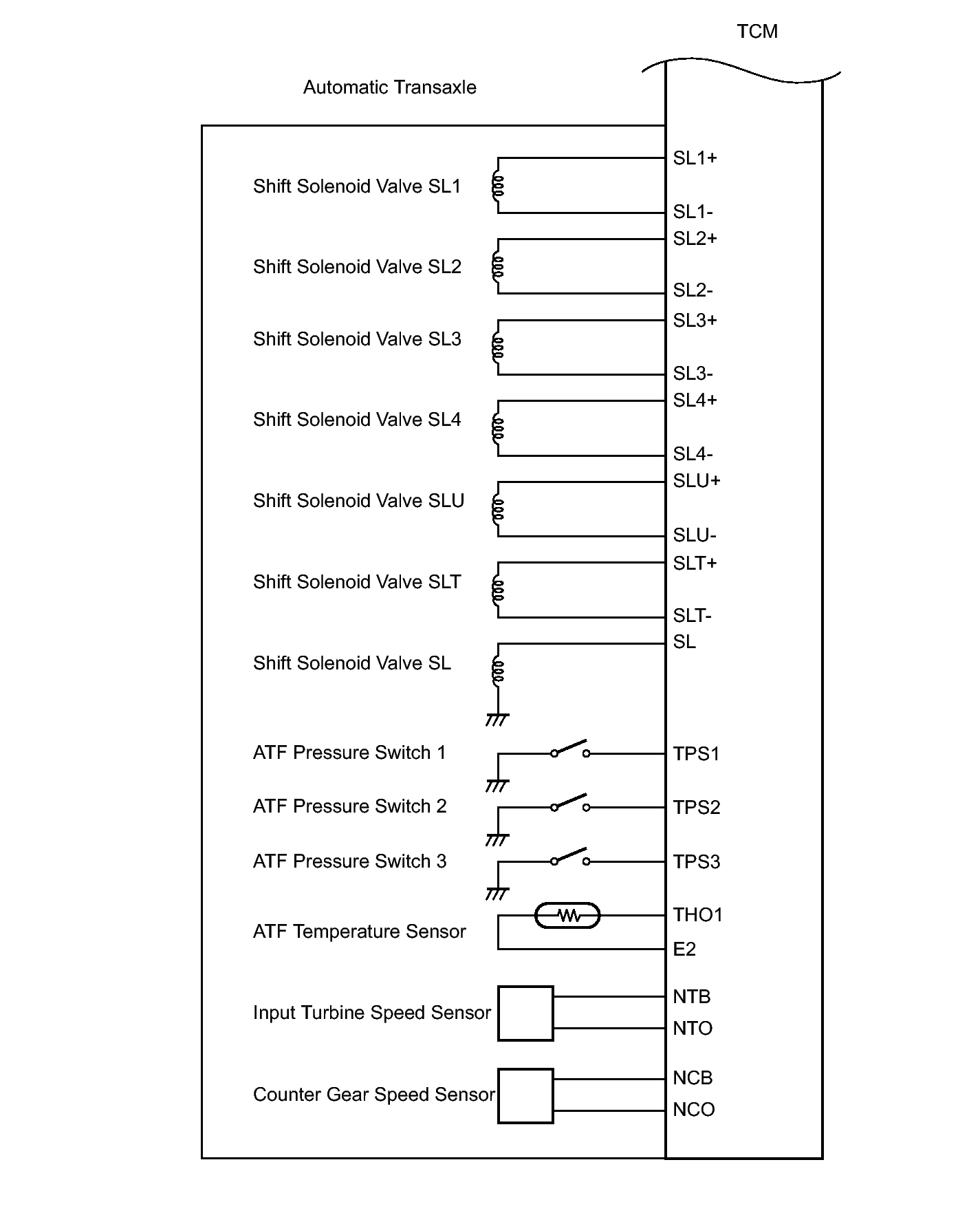

Fig 2: Identifying Automatic Transaxle System Diagram (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

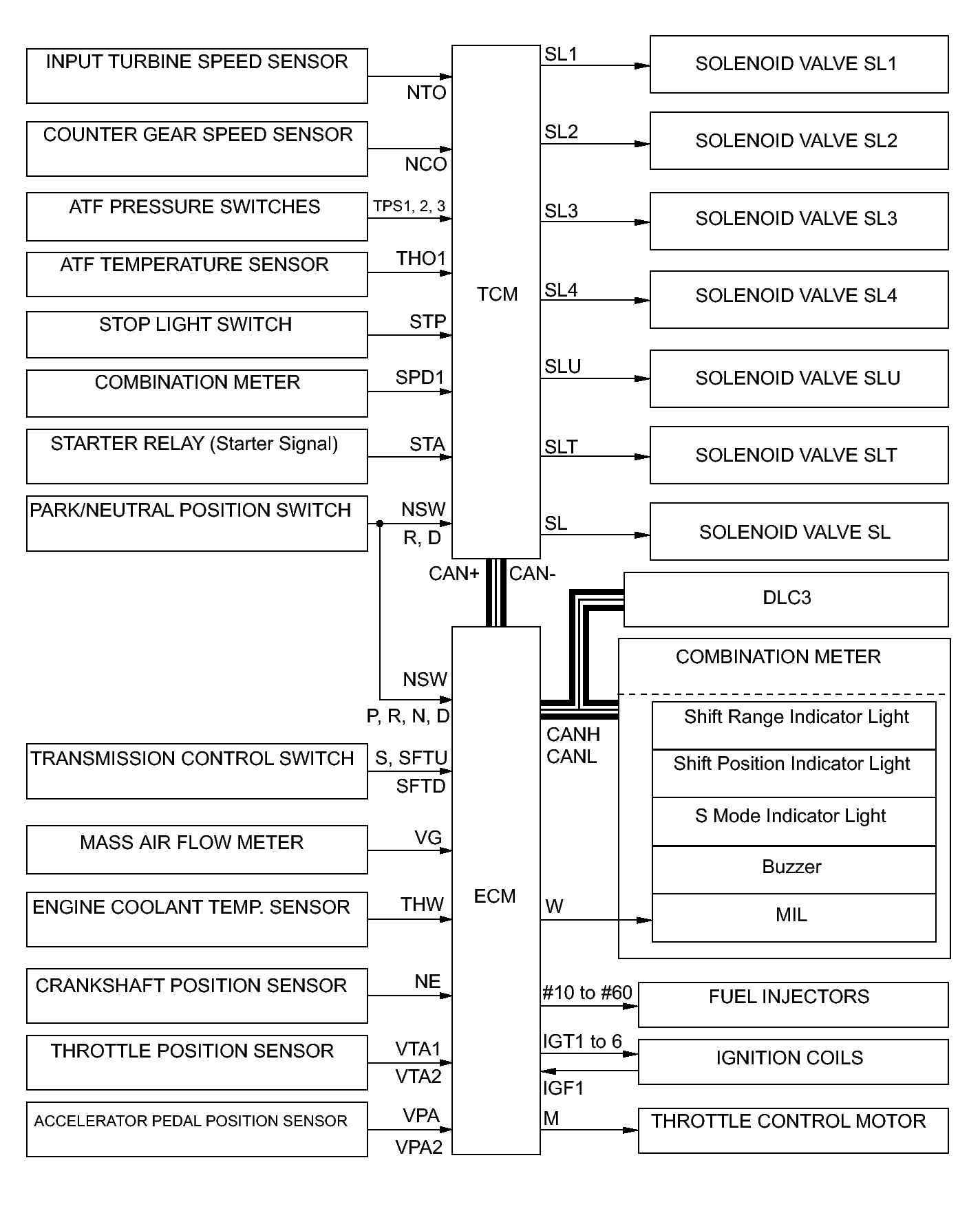

Fig 3: Identifying Automatic Transaxle System Diagram (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
