Home › Lexus › 2011 › ES 350 › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transmission (Service Information) › Park/Neutral Position Switch › Components › Illustration

Park/Neutral Position Switch: Components: Illustration

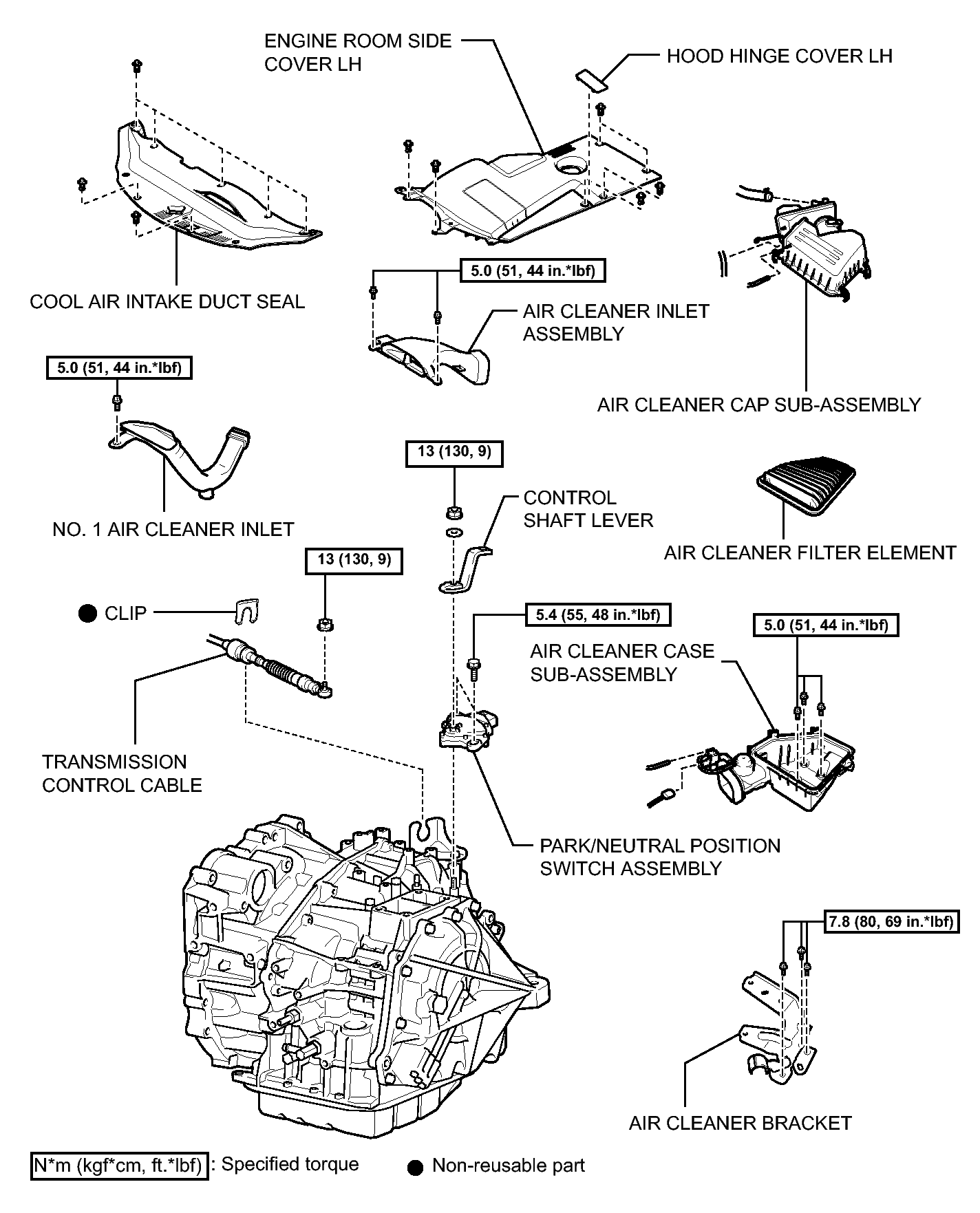

Fig 1: Identifying Park/Neutral Position Switch Replacement Components With Torque Specifications
GTY111438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
