Brake Control Power Supply: Components: Illustration

Fig 1: Identifying Brake Control Power Supply Replacement Components (1 Of 2)
GTY114186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

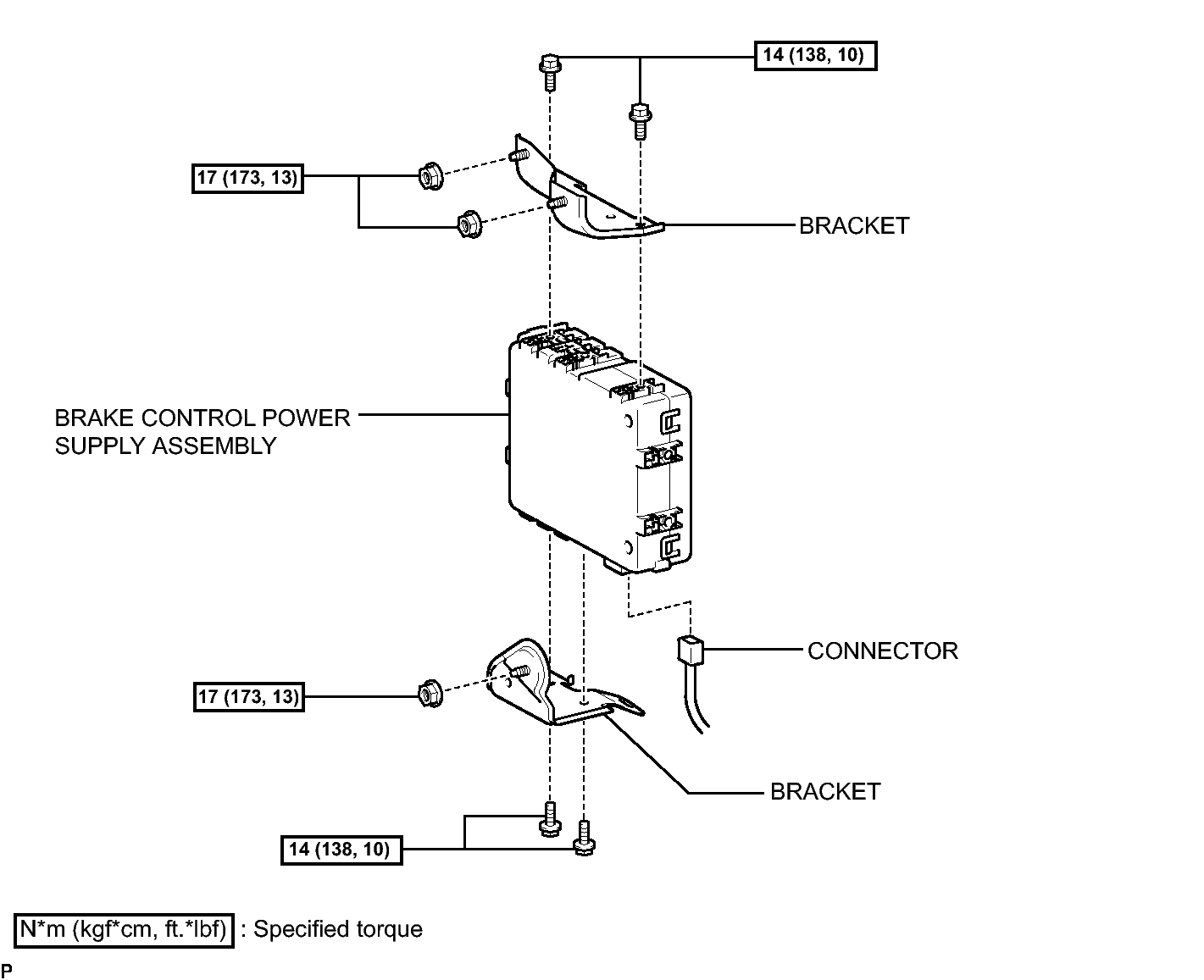

Fig 1: Identifying Brake Control Power Supply Replacement Components With Torque Specification (2 Of 2)
GTY114187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
