Ground Point: Notes

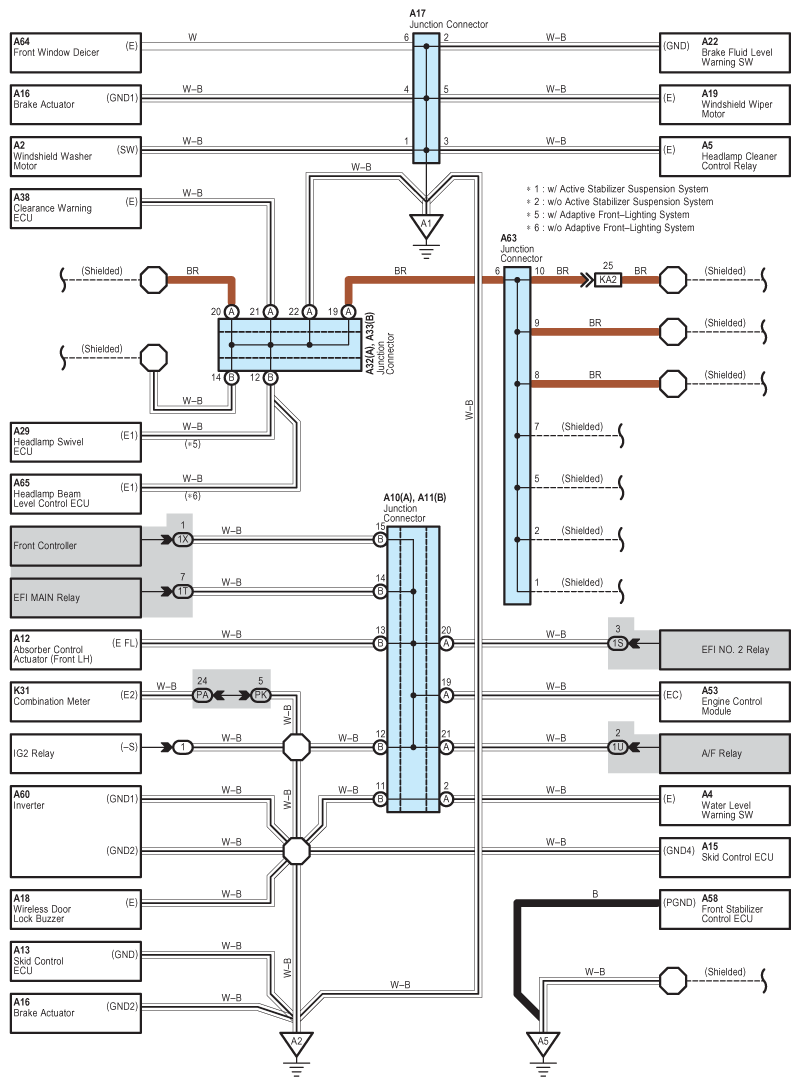

Fig 1: Ground Point - Circuit Diagram (1 Of 8)

G07570407

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

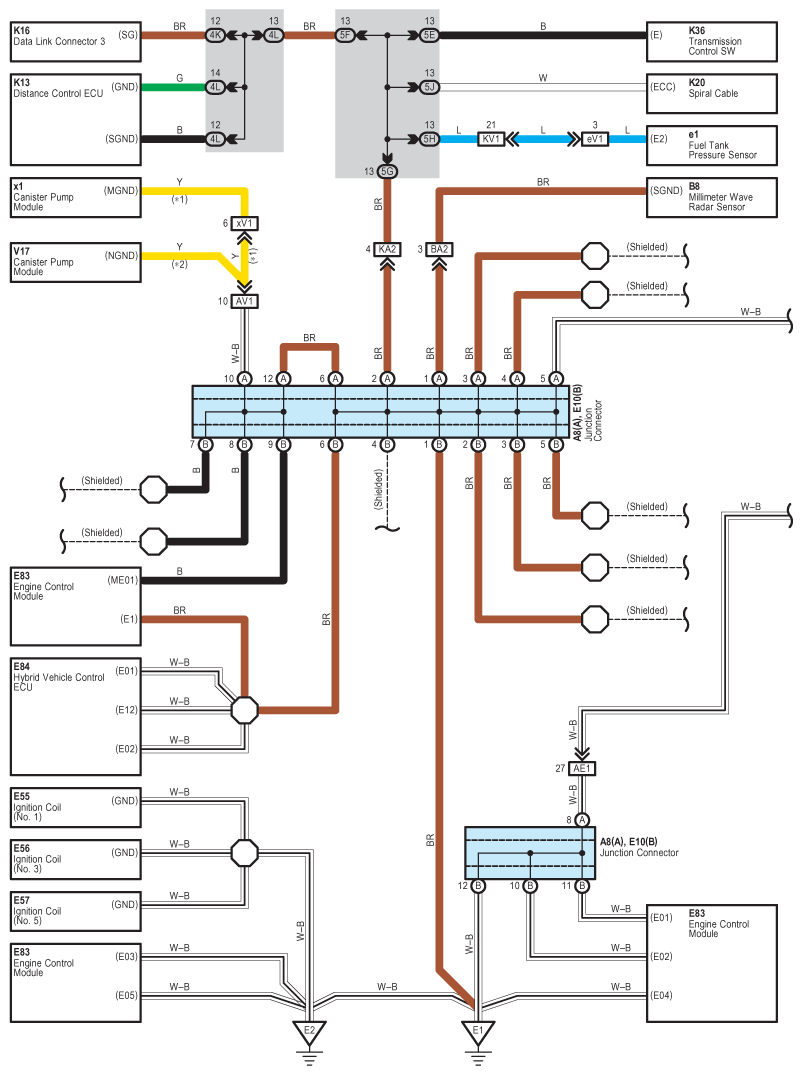

Fig 2: Ground Point - Circuit Diagram (2 Of 8)

G07570408

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

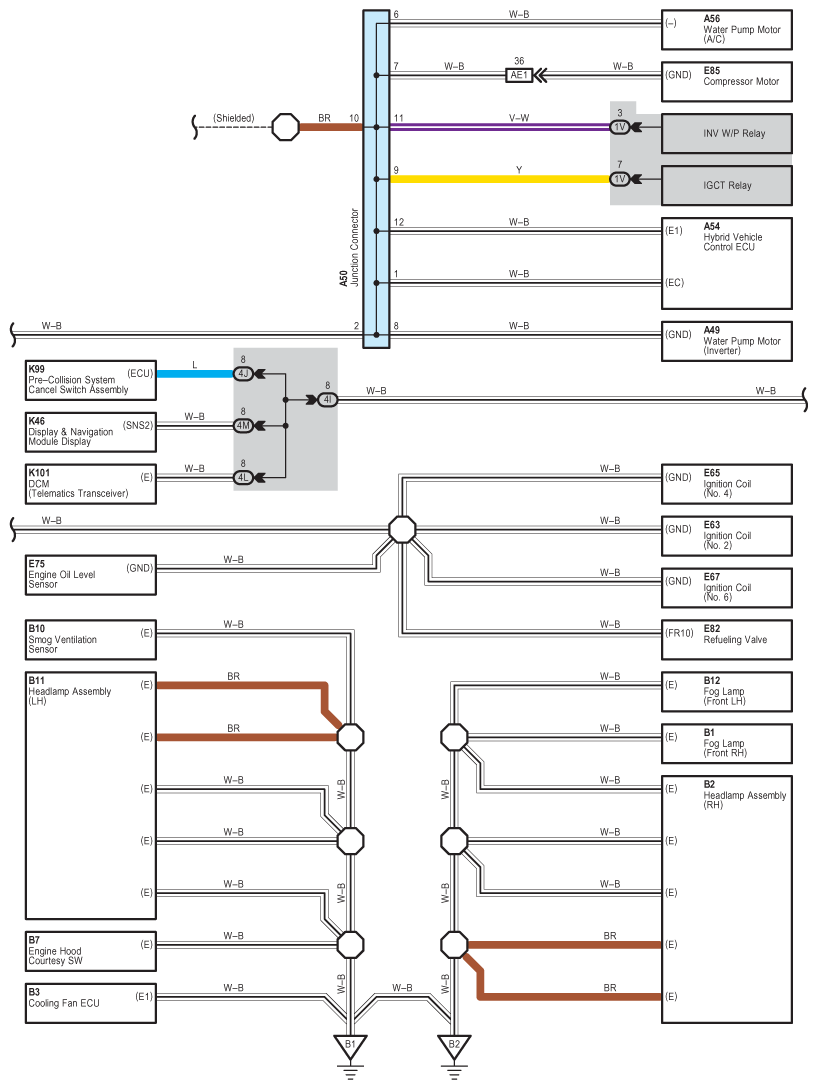

Fig 3: Ground Point - Circuit Diagram (3 Of 8)

G07570409

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

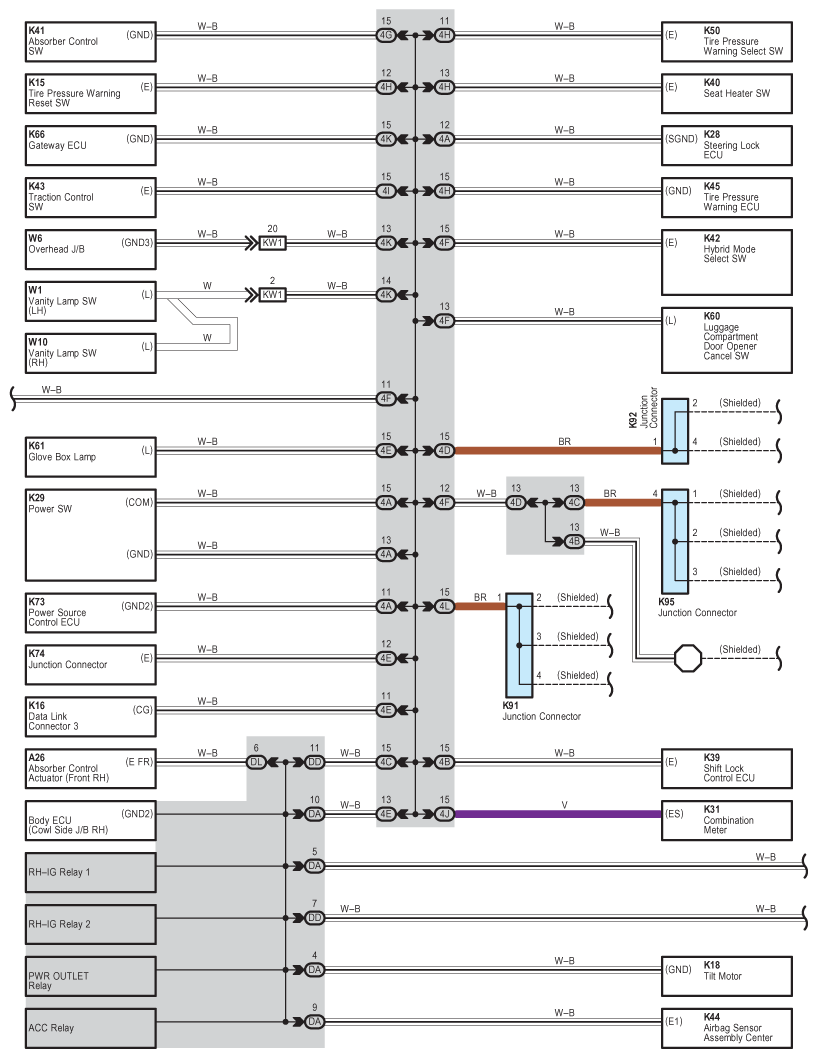

Fig 4: Ground Point - Circuit Diagram (4 Of 8)

G07570410

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

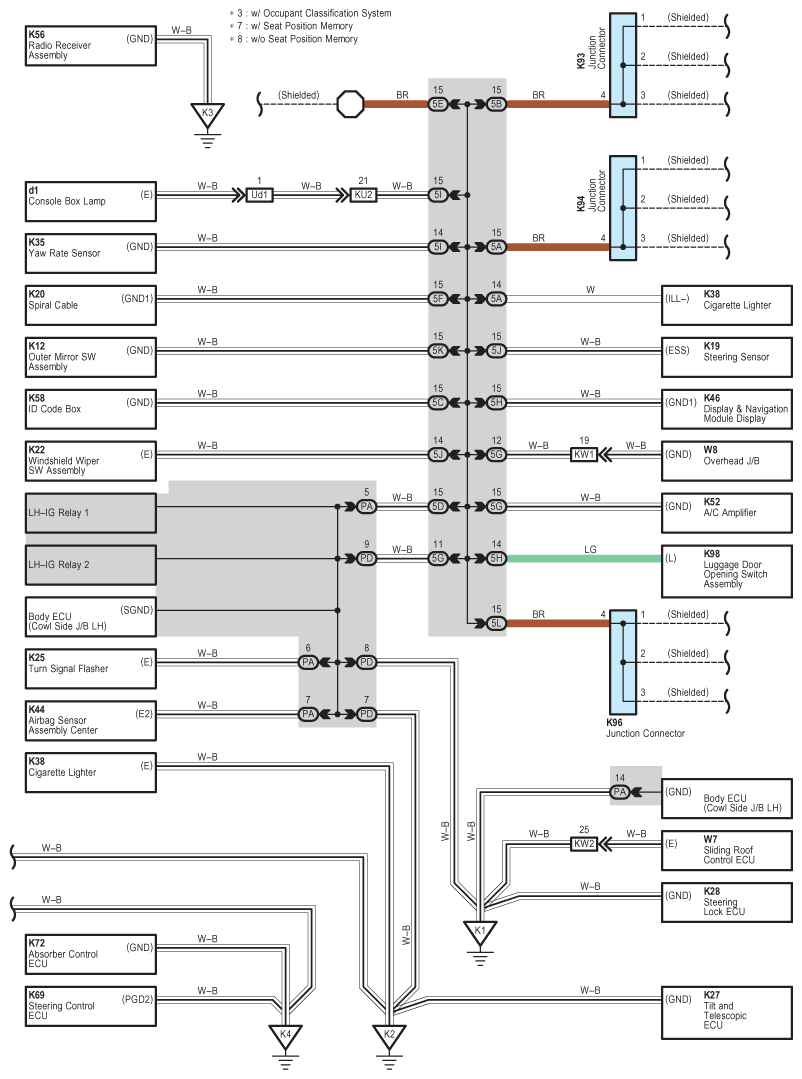

Fig 5: Ground Point - Circuit Diagram (5 Of 8)

G07570411

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

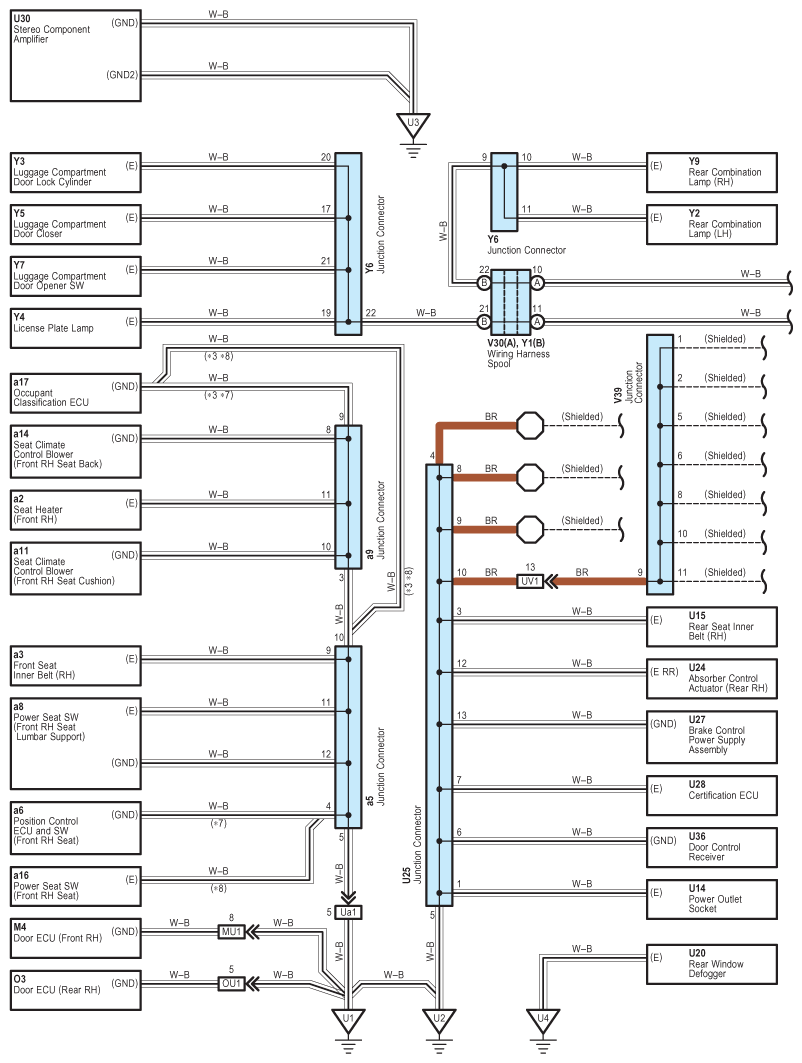

Fig 6: Ground Point - Circuit Diagram (6 Of 8)

G07570412

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

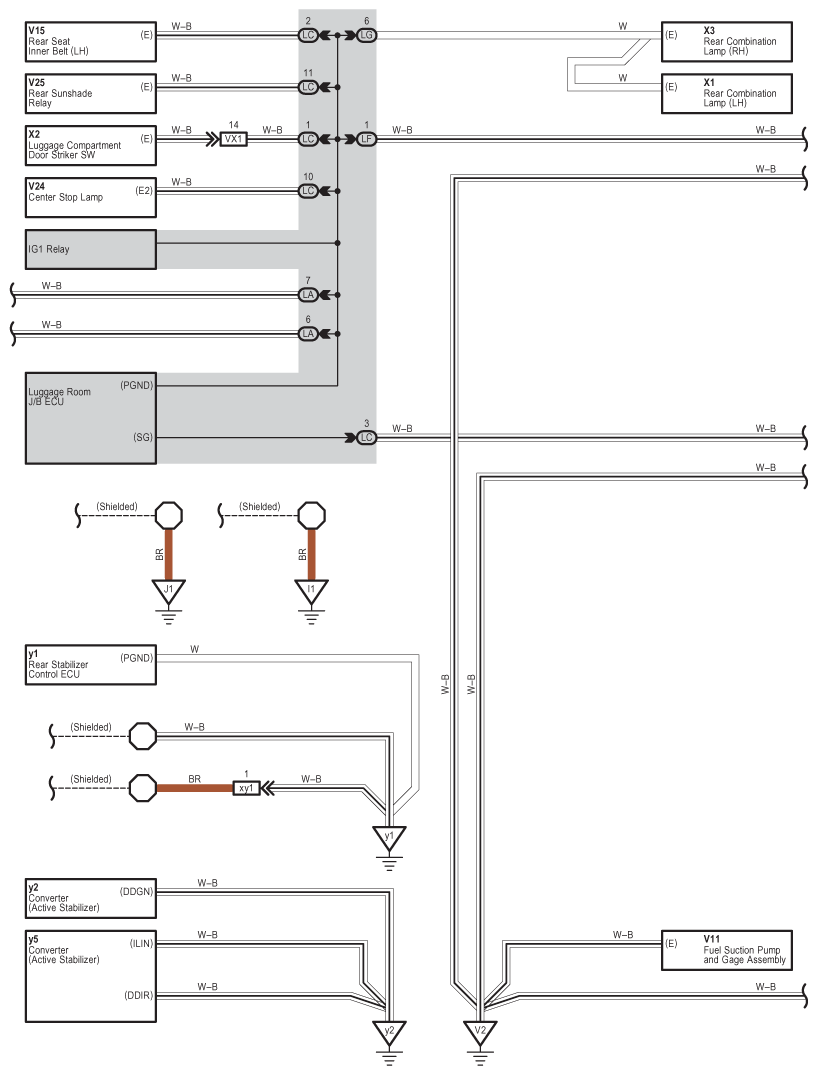

Fig 7: Ground Point - Circuit Diagram (7 Of 8)

G07570413

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

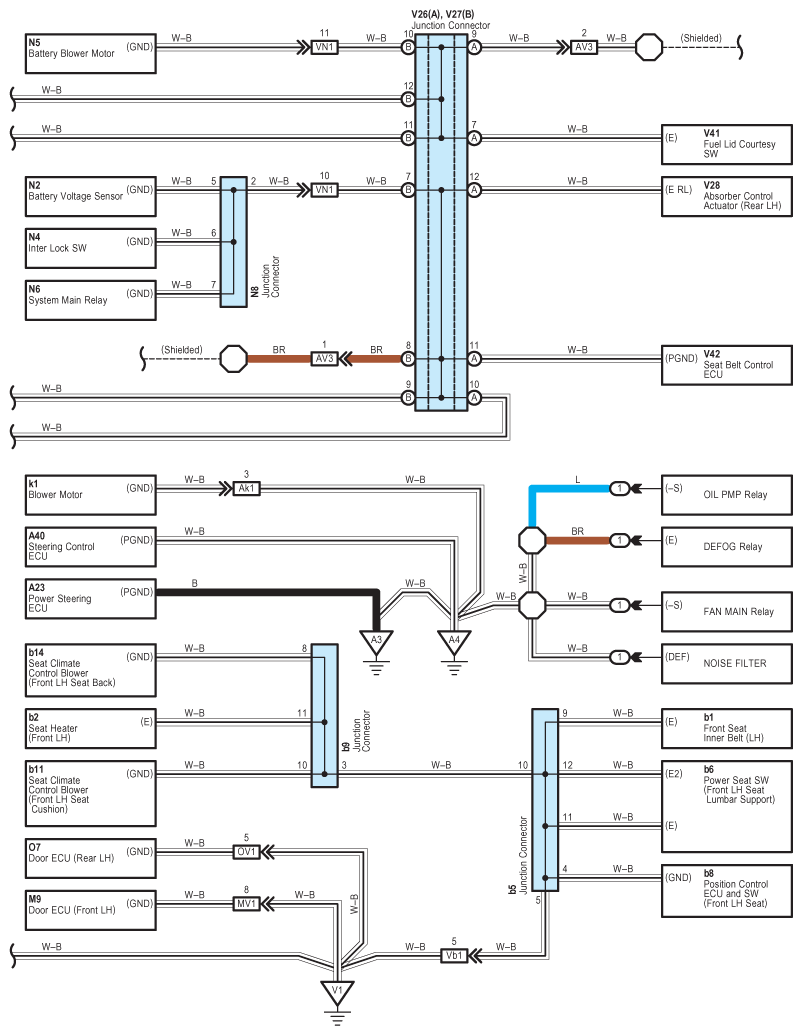

Fig 8: Ground Point - Circuit Diagram (8 Of 8)

G07570414

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
