Lexus
›
2011
›
GS 450h
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Automatic Light Control
›
Notes
Automatic Light Control: Notes

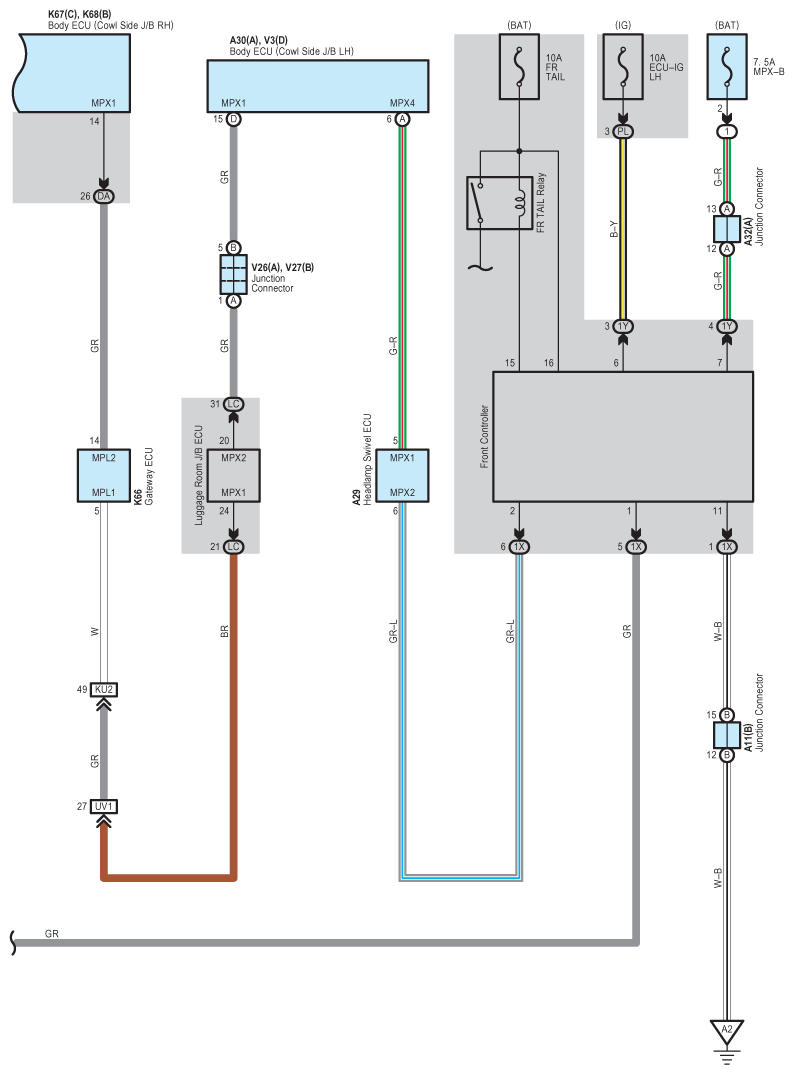

Fig 1: Automatic Light Control - Circuit Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

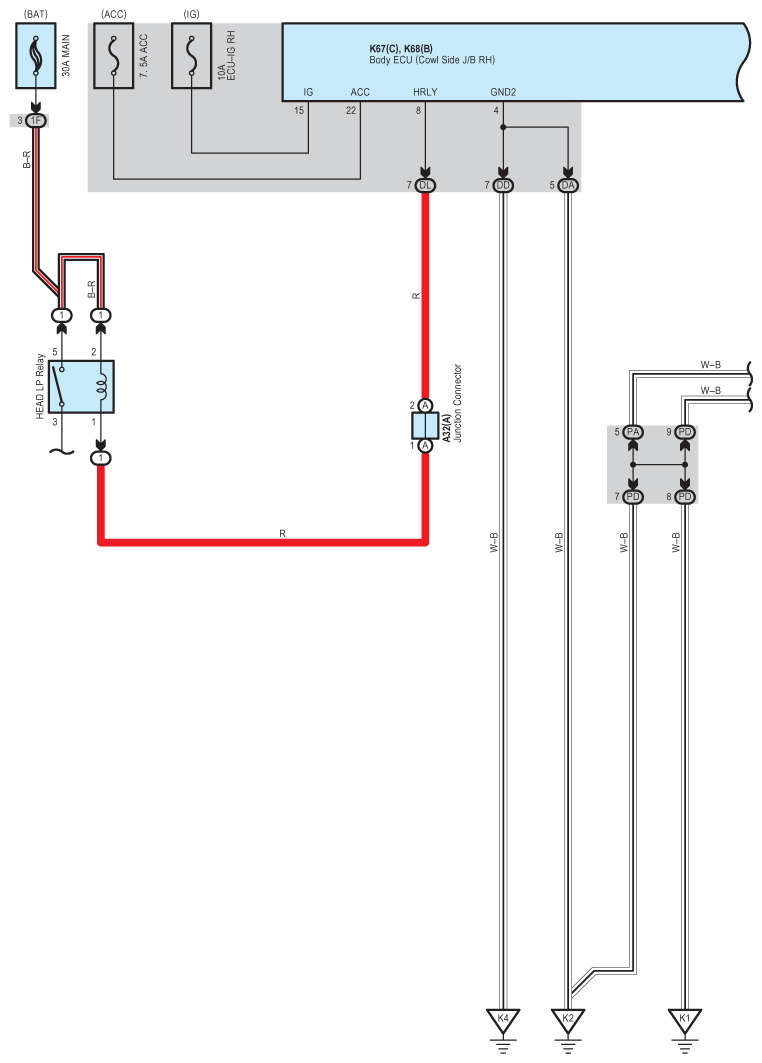

Fig 2: Automatic Light Control - Circuit Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

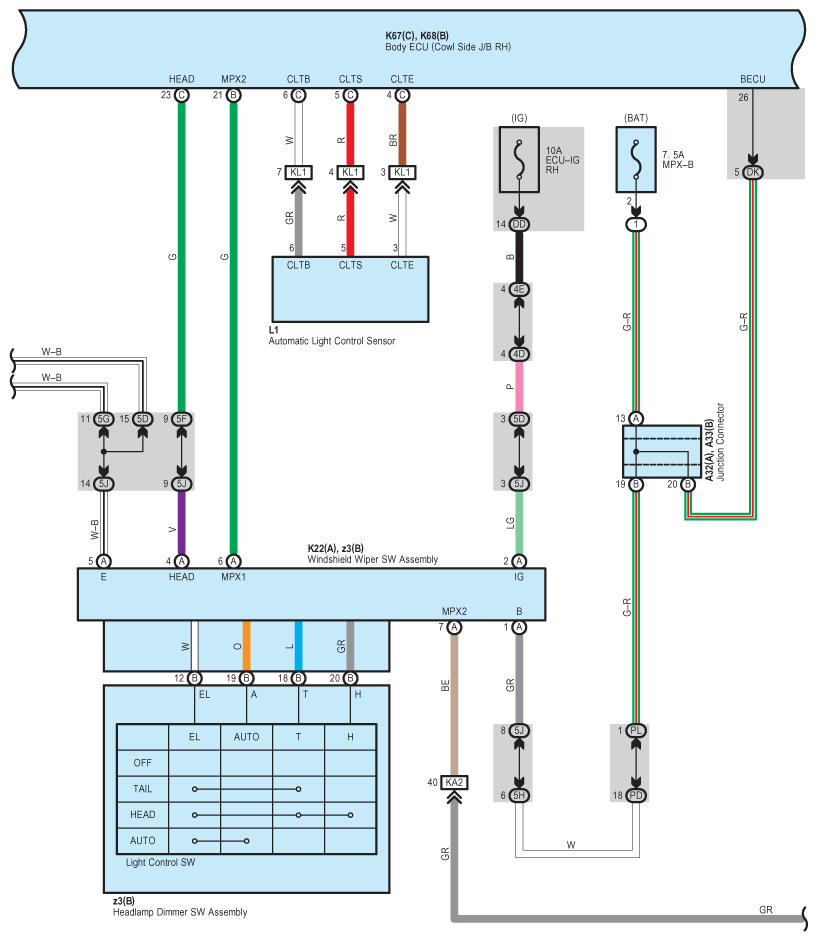

Fig 3: Automatic Light Control - Circuit Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
