Parts Location: Illustration

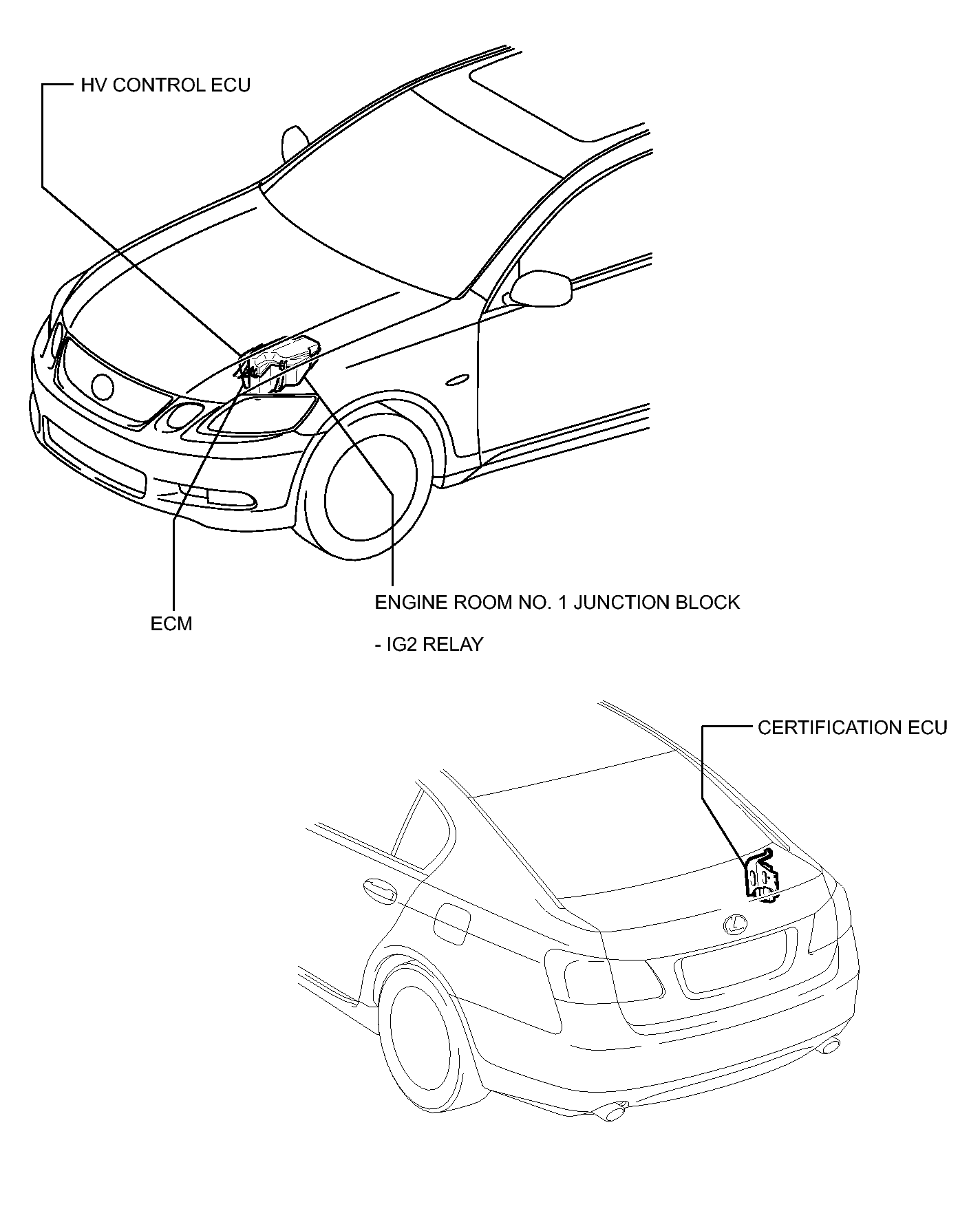

Fig 1: Identifying Smart Access System With Push-Button Start Parts Location (1 Of 3)
GTY125882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

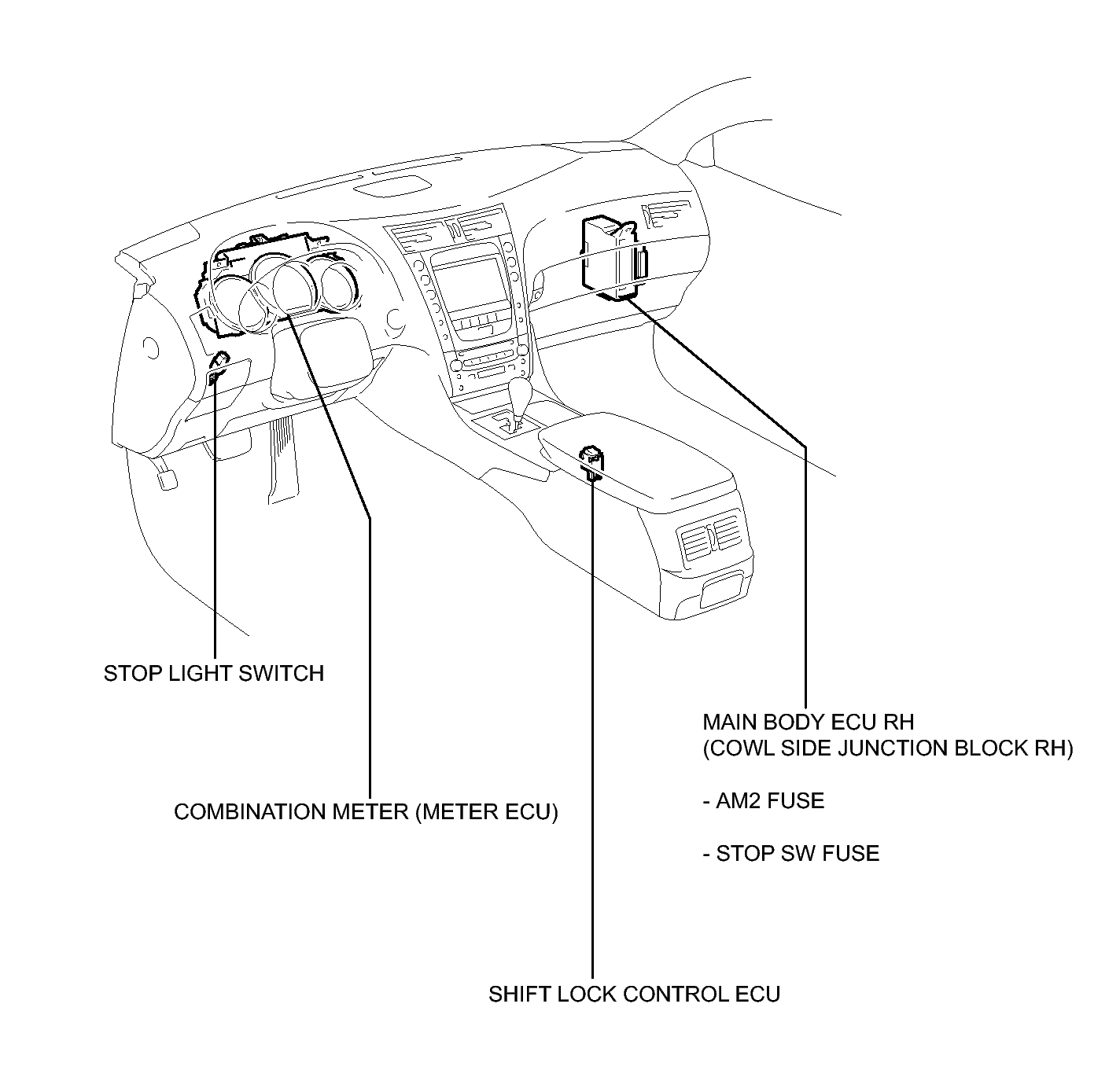

Fig 1: Identifying Smart Access System With Push-Button Start Parts Location (2 Of 3)
GTY147113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

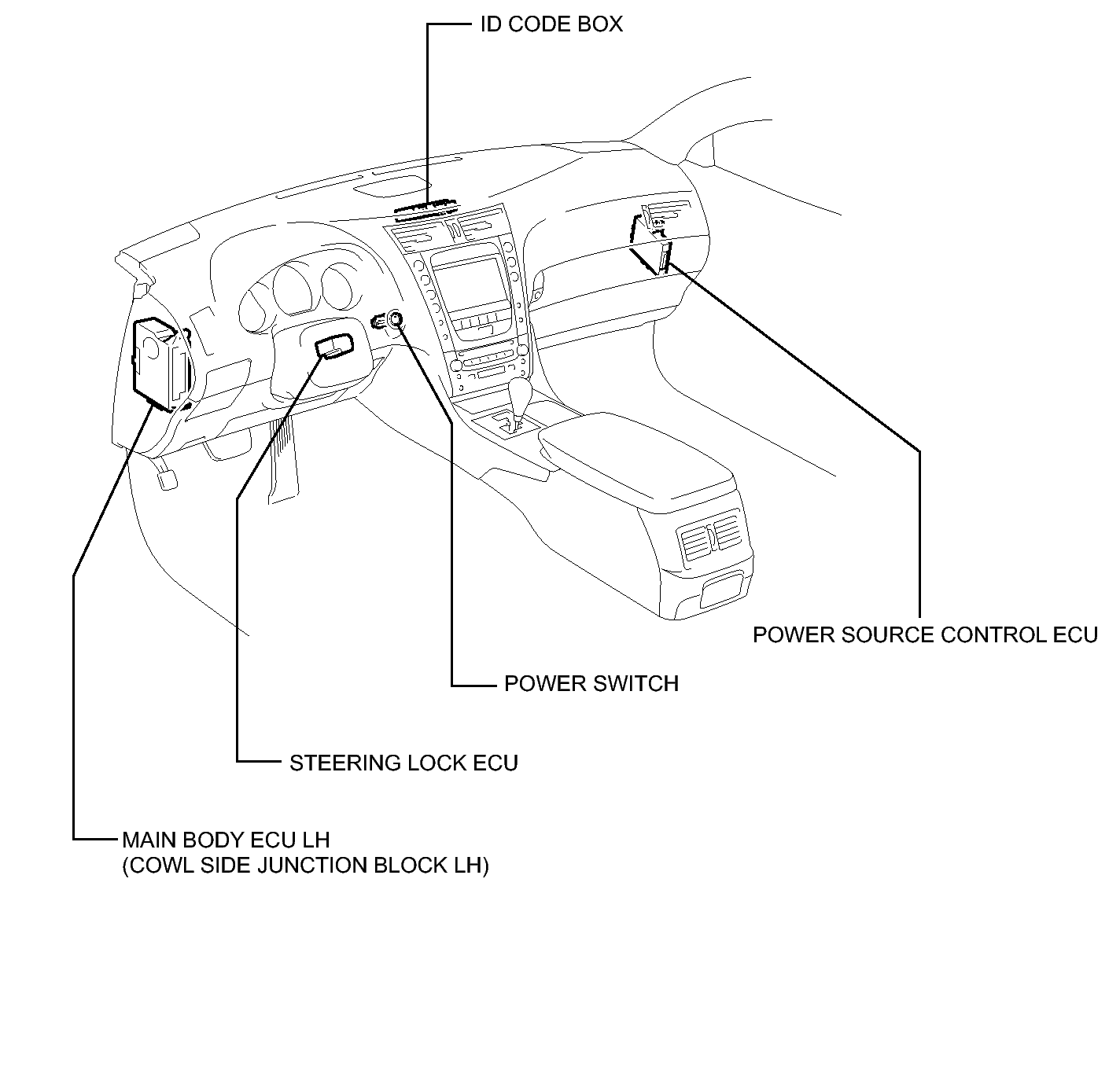

Fig 1: Identifying Smart Access System With Push-Button Start Parts Location (3 Of 3)
GTY147114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
