Parts Location: Illustration

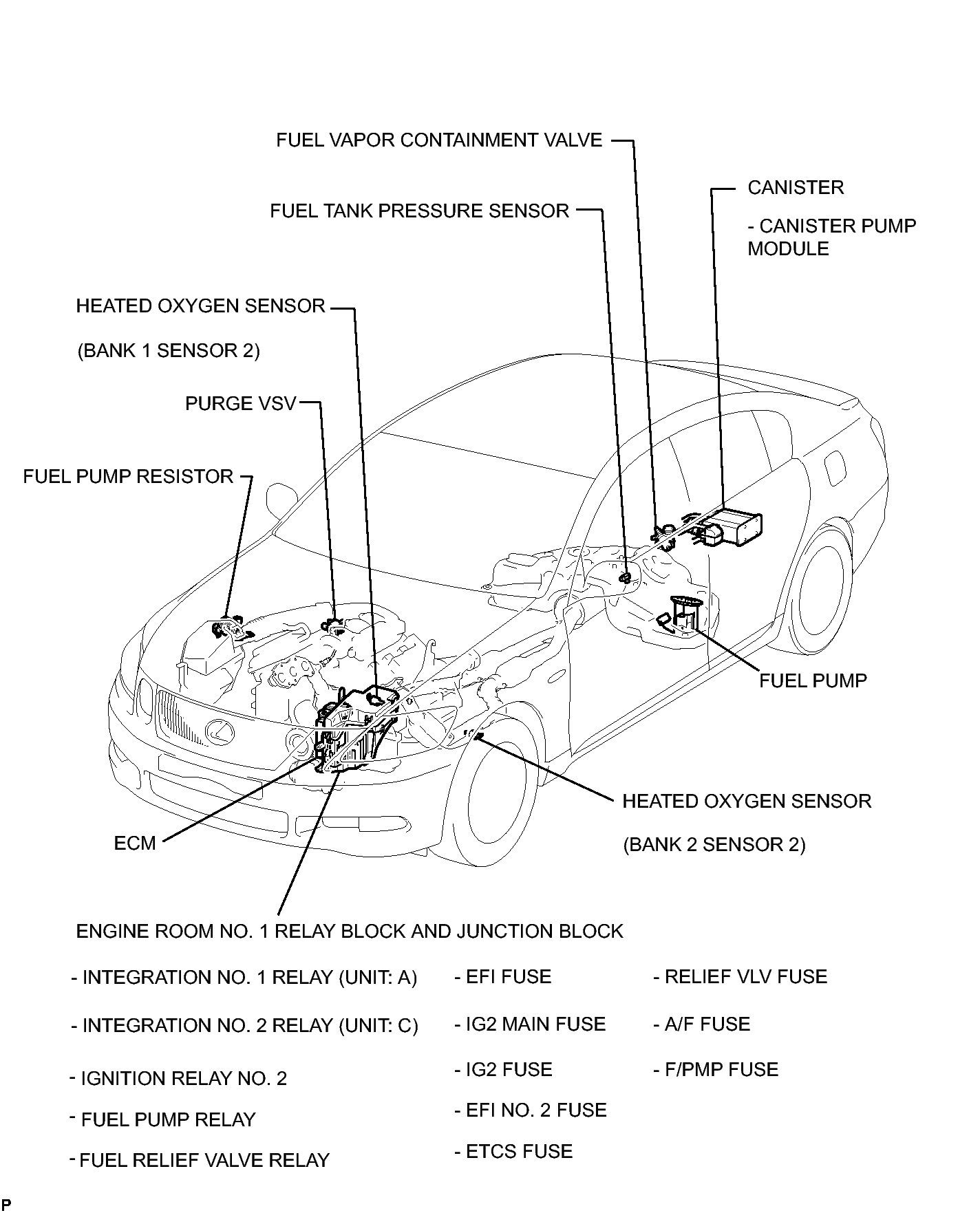

Fig 1: Identifying Engine Control (SFI) System Components (1 Of 4)
GTY358103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Control (SFI) System Components (2Of 4)
GTY276540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Control (SFI) System Components (3 Of 4)
GTY140118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Control (SFI) System Components (4 Of 4)
GTY146999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
