LEXUS ENFORM or Safety Connect: Notes

WARNING: This page is about a different car, the 2010 Lexus GS 450h. However, it is still accessible from the selected car via links, so may be relevant.

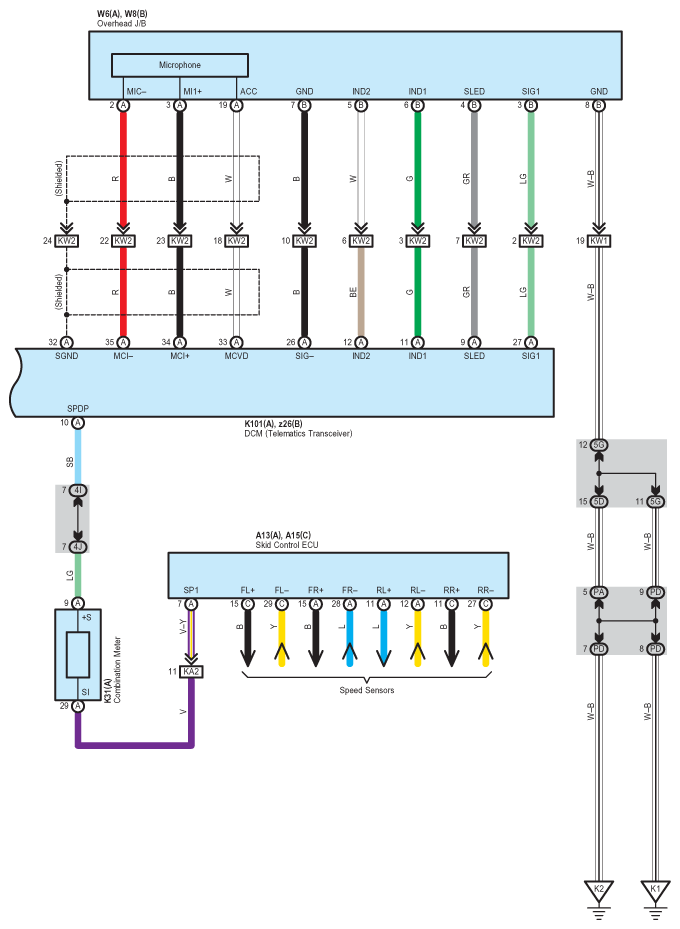

Fig 1: Lexus Enform Or Safety Connect - Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

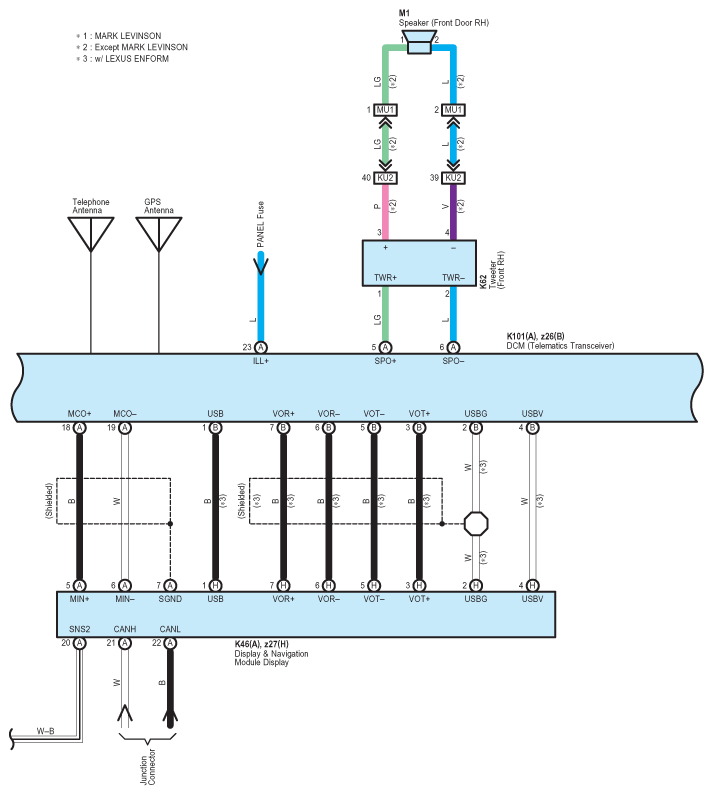

Fig 2: Lexus Enform Or Safety Connect - Wiring Diagram (2 Of 3)

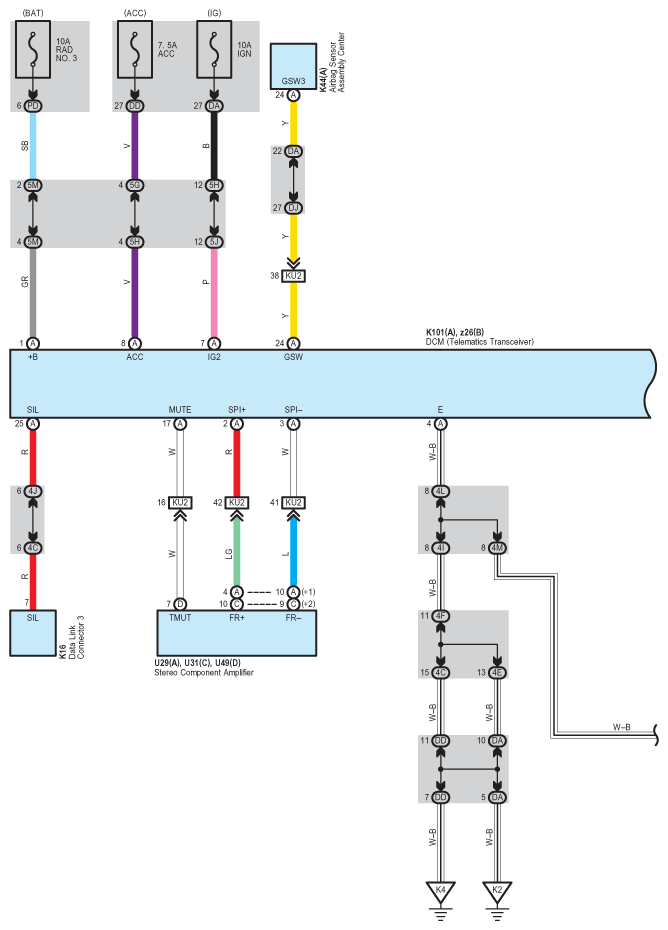

Fig 3: Lexus Enform Or Safety Connect - Wiring Diagram (3 Of 3)
