HV Relay Assembly: Installation: Installation

INSTALL HIGH VOLTAGE FUSE
1. Install the high voltage fuse with the 2 bolts.

  Fig 1: Locating High Voltage Fuse Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 4.5 N*m (46 kgf*cm, 40 in.*lbf)

  NOTE:
  Be sure to use a torque wrench to tighten the bolts.
INSTALL HV RELAY ASSEMBLY
1. Install the HV relay assembly with the 3 nuts.

  Fig 2: Identifying HV Relay Assembly, Battery Carrier And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  WARNING:
  Wear insulated gloves.
2. Connect the 7 connectors and clamp to the HV relay assembly.

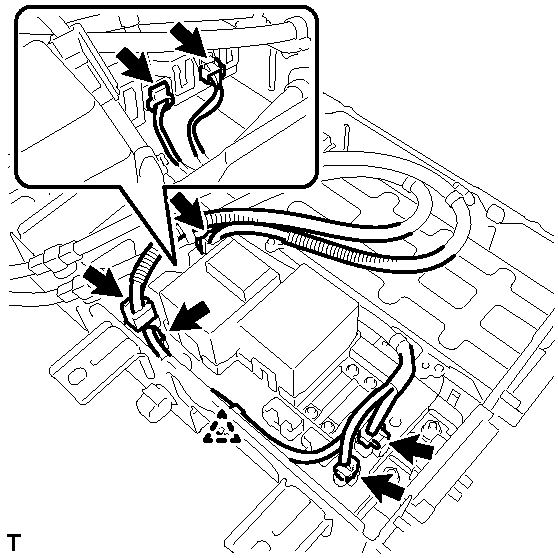

  Fig 3: Locating HV Relay Assembly Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  WARNING:
  Wear insulated gloves.
  NOTE:
  - Connect the wire wrapped with red tape to the terminal indicated by the "+" mark of the HV relay and the wire not wrapped with red tape to the terminal indicated by the "-" mark of the HV battery.
  - Make sure that the connectors are engaged securely.
INSTALL NO. 6 BATTERY CARRIER PANEL Refer to 20
INSTALL BATTERY CARRIER SUB-ASSEMBLY Refer to 21
INSTALL BATTERY BRACKET SUB-ASSEMBLY Refer to 22
CONNECT FRAME WIRE Refer to 23
INSTALL NO. 3 HV BATTERY EXHAUST DUCT Refer to 24
REMOVE TOOL BOX
INSTALL LUGGAGE COMPARTMENT FRONT TRIM COVER . Refer to INSTALLATION - Step 4
INSTALL ROPE HOOK ASSEMBLY Refer to 30
INSTALL TOOL BOX
INSTALL LUGGAGE COMPARTMENT TRIM SIDE COVER RH
INSTALL SERVICE PLUG GRIP Refer to 33
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSTALL BATTERY SERVICE HOLE COVER LH Refer to 35
INSTALL LUGGAGE COMPARTMENT FLOOR MAT
PERFORM INITIALIZATION
1. Perform initialization procedure. Refer to INITIALIZATION .
  NOTE:
  Some vehicle systems require initialization after reconnecting the cable to the negative battery terminal.
