Shift Lever: Reassembly: Reassembly

INSTALL TRANSMISSION CONTROL SWITCH
1. Install the transmission control switch to the shift lever guide housing.

  Fig 1: Identifying Transmission Control Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Securely engage the claws.
INSTALL SHIFT LOCK CONTROL ECU SUB-ASSEMBLY
1. Apply MP grease to the hatched area of the shift lever guide housing as indicated in the illustration.

  Fig 2: Identifying MP Grease Applying Area
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

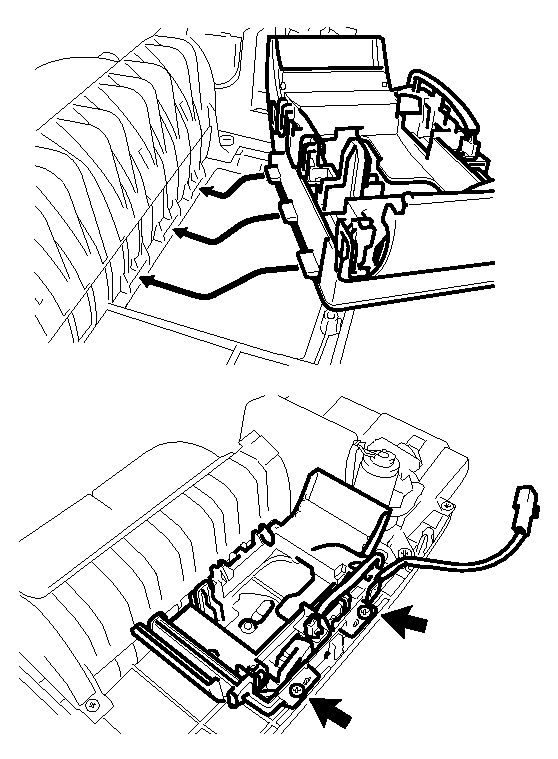

2. Install the shift lock control ECU sub-assembly with the 2 screws.

  Fig 3: Locating Shift Lock Control ECU Sub-Assembly Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the shift lever guide housing with the shift lever lock pin and a new shift lever nut.

  Fig 4: Identifying Shift Lever Nut And Lock Pin
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Install the shift lever nut and lock pin after first engaging the 2 claws.
  - Securely engage the claws.
4. Connect the transmission control switch connector to the floor shift assembly.

  Fig 5: Locating Shift Lock Control ECU Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR SLIDE COVER
1. Install position indicator slide cover No. 2 to the position indicator slide cover.

  Fig 6: Identifying Position Indicator Slide Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the position indicator slide cover to the position indicator housing.
INSTALL POSITION INDICATOR LENS
1. Install the position indicator lens to the position indicator housing lower.

  Fig 7: Identifying Position Indicator Lens
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Securely engage the claws.
INSTALL SHIFT LEVER CAP
1. Install the shift lever cap to the position indicator housing.
INSTALL POSITION INDICATOR HOUSING
1. Install the position indicator housing upper to the position indicator housing lower.

  Fig 8: Identifying Position Indicator Housing Upper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Securely engage the claws.
INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY
1. Securely connect the 2 terminals of the indicator light wire harness to the transmission control switch connector.

  Fig 9: Disengaging Locking Lug Of Terminals (4) And (8)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the position indicator light bulb to the indicator light wire sub-assembly.

  Fig 10: Identifying Indicator Light Bulb And Cap To Indicator Light Wire Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the position indicator bulb cap to the position indicator light bulb.
4. Install the indicator light wire to the position indicator.

  Fig 11: Installing Indicator Light Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Make sure that the indicator light wire is securely installed to the position indicator.
INSTALL SHIFT POSITION INDICATOR
1. Install the shift position indicator to the console panel UPR assembly with the 2 screws.

  Fig 12: Locating Console Panel UPR Assembly Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Engage the 3 claws to install the indicator.
2. Connect the indicator light wire harness connector and the wire harness to the console panel UPR assembly.

  Fig 13: Locating Indicator Light Wire Harness Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
