Steering Angle Sensor: Components: Illustration

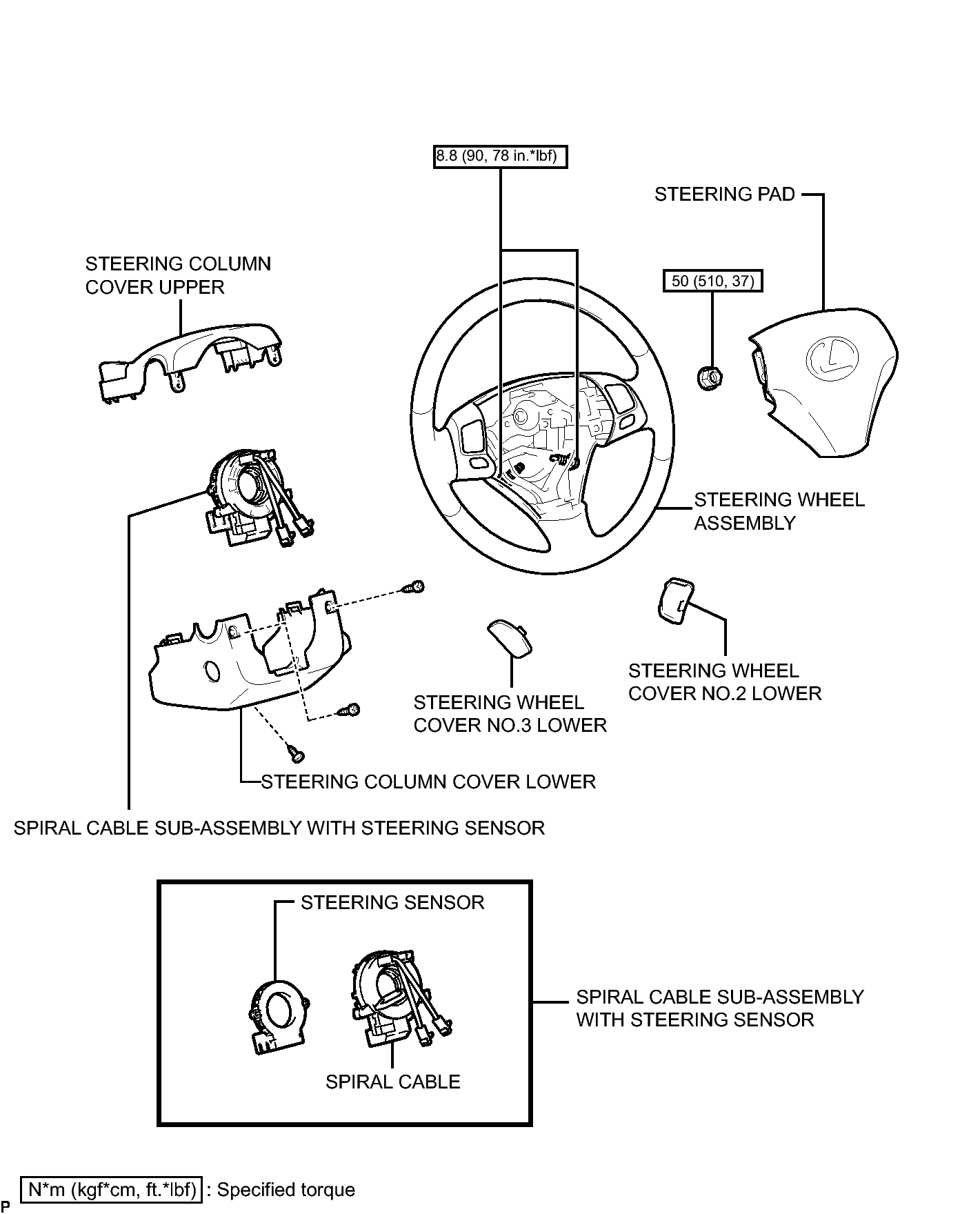

Fig 1: Identifying Steering Angle Sensor Components
GTY102785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
