OEM System Circuits: 4WD: Notes

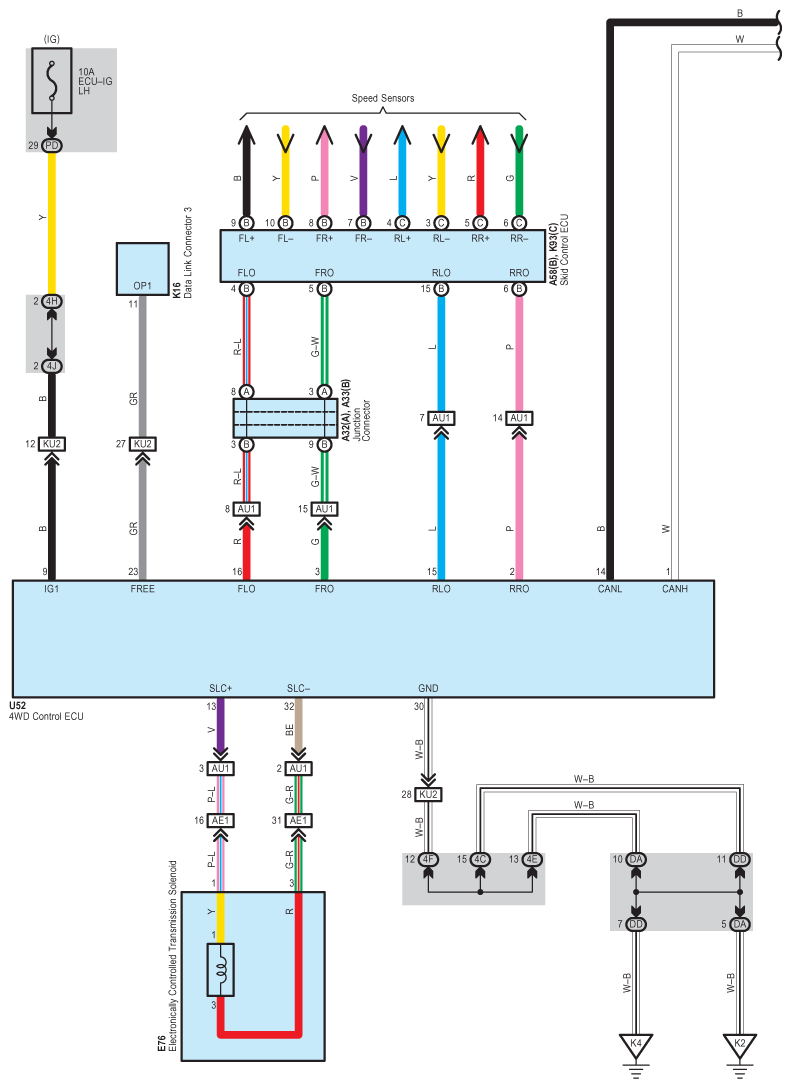

Fig 1: 4WD - Circuit Diagram (1 Of 4)

G07573276

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

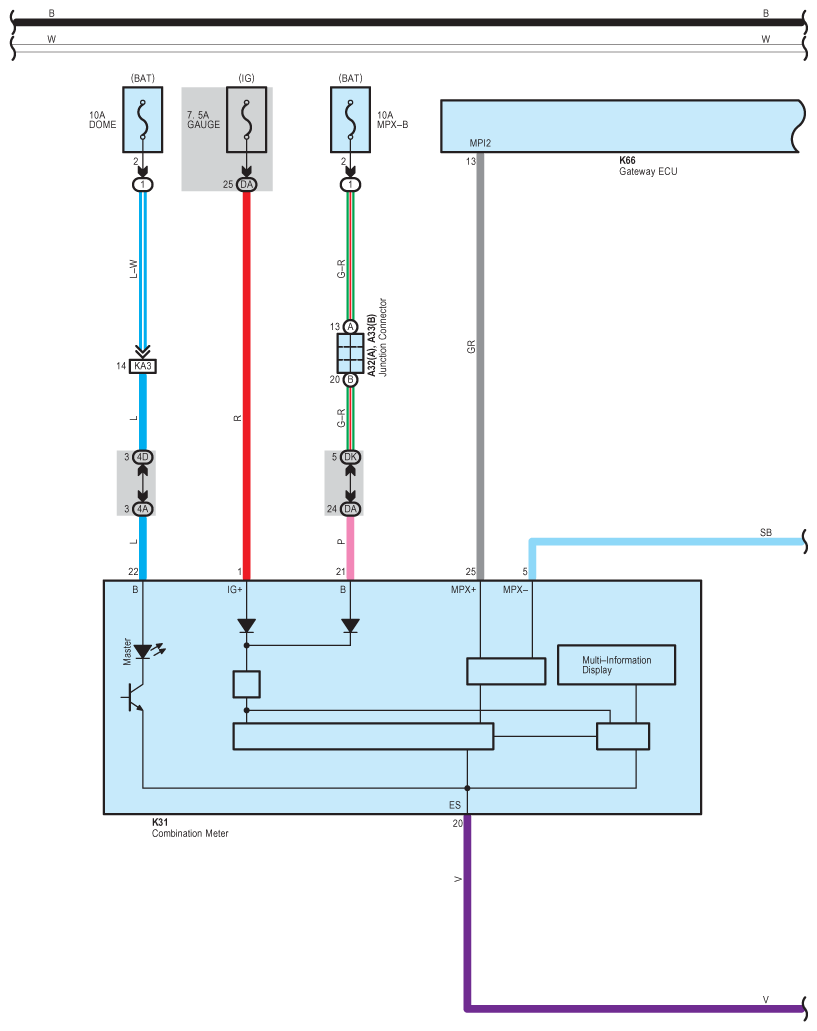

Fig 2: 4WD - Circuit Diagram (2 Of 4)

G07573277

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

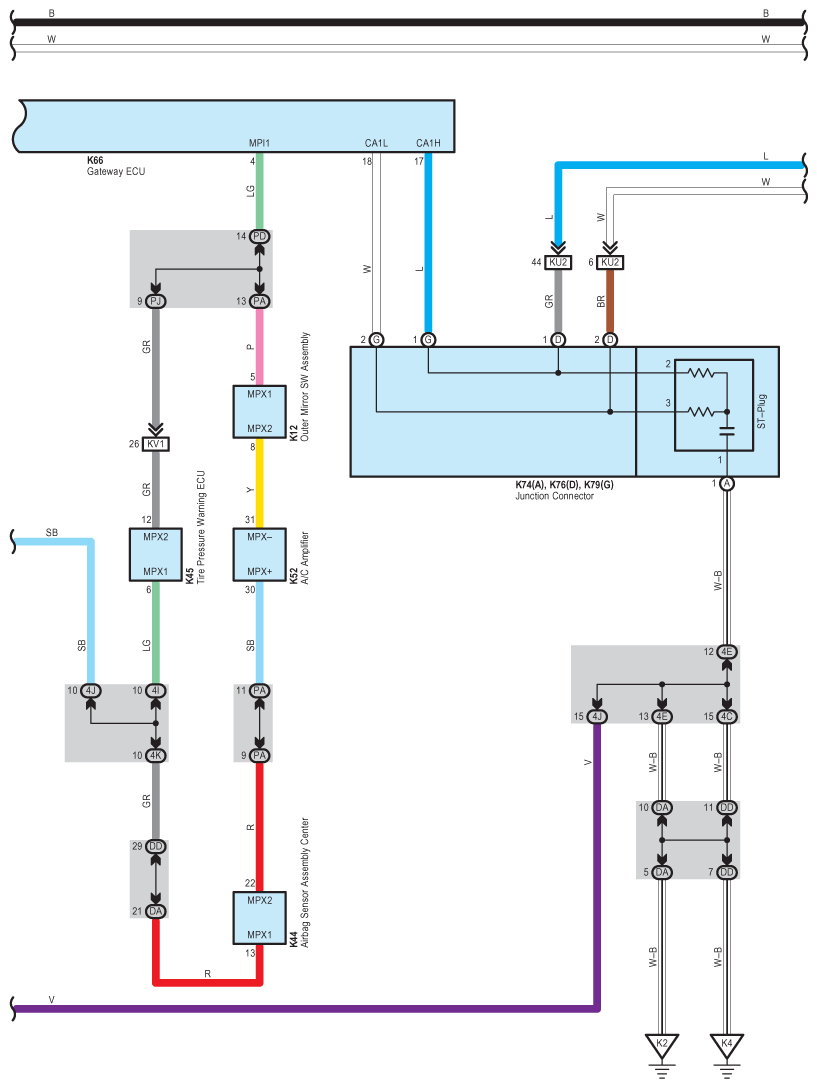

Fig 3: 4WD - Circuit Diagram (3 Of 4)

G07573278

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

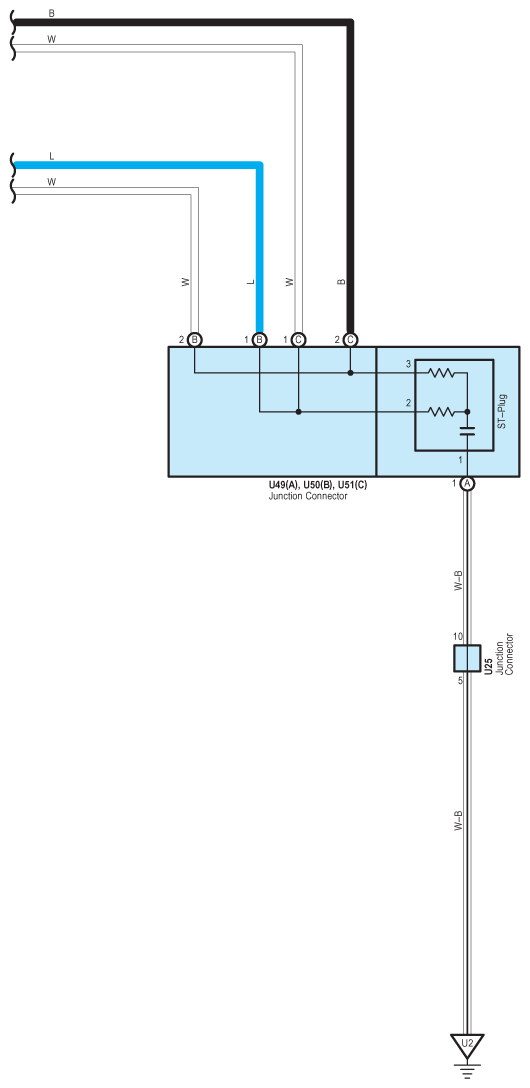

Fig 4: 4WD - Circuit Diagram (4 Of 4)

G07573279

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
