Electric Tension Reducer: Notes

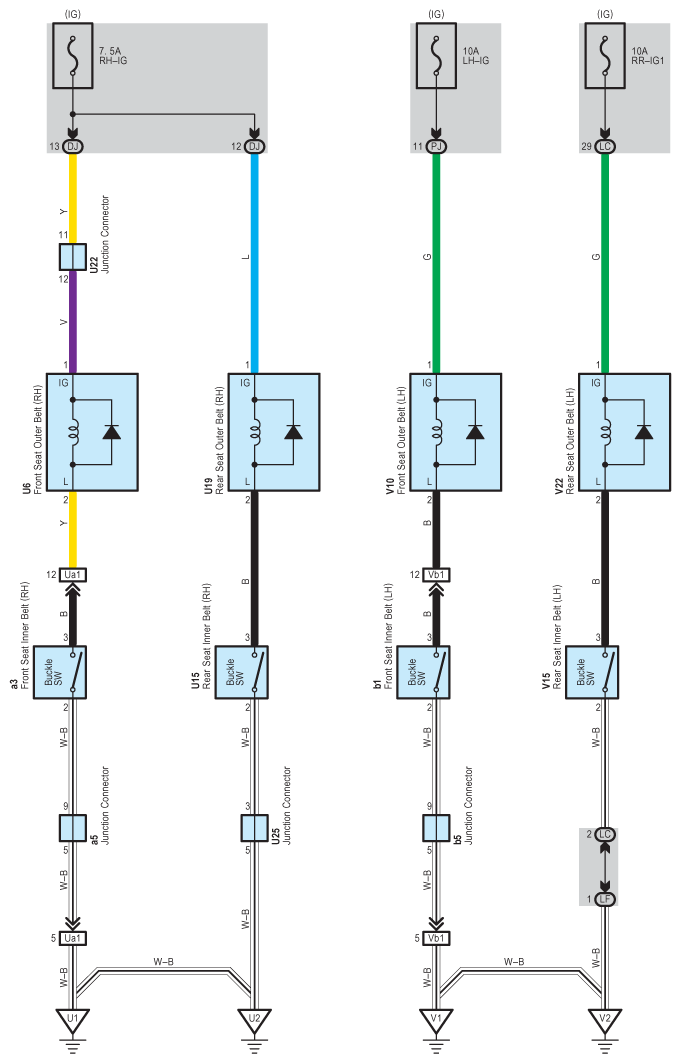

Fig 1: Electric Tension Reducer - Circuit Diagram
G07573354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
