LEXUS ENFORM or Safety Connect: Notes

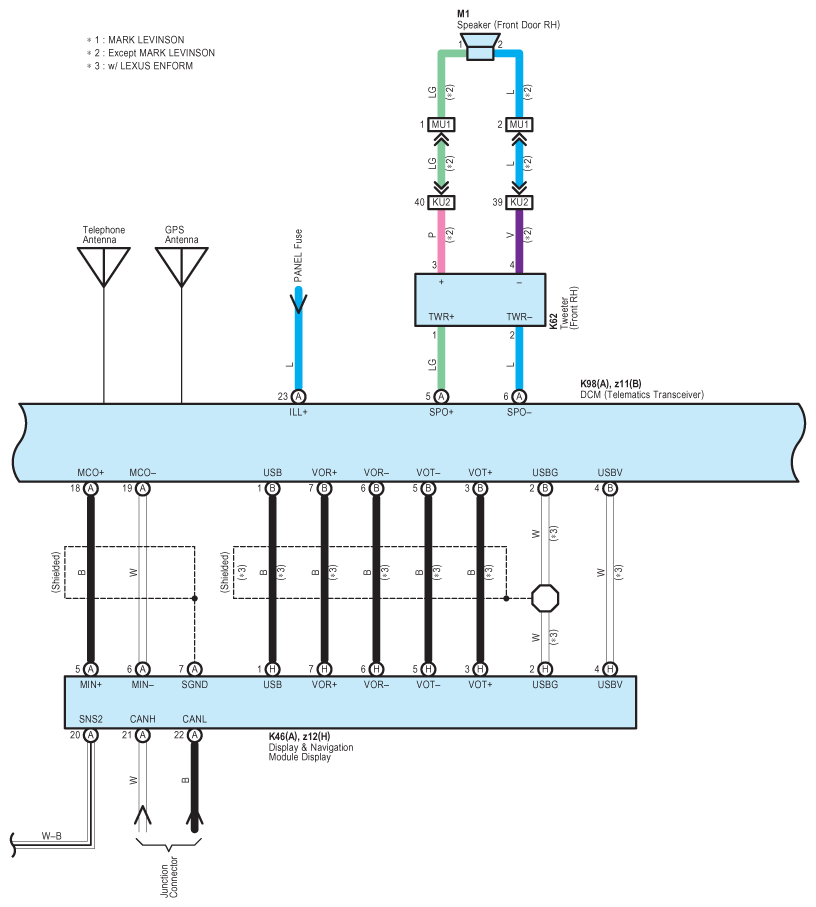

Fig 1: LEXUS ENFORM Or Safety Connect - Circuit Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

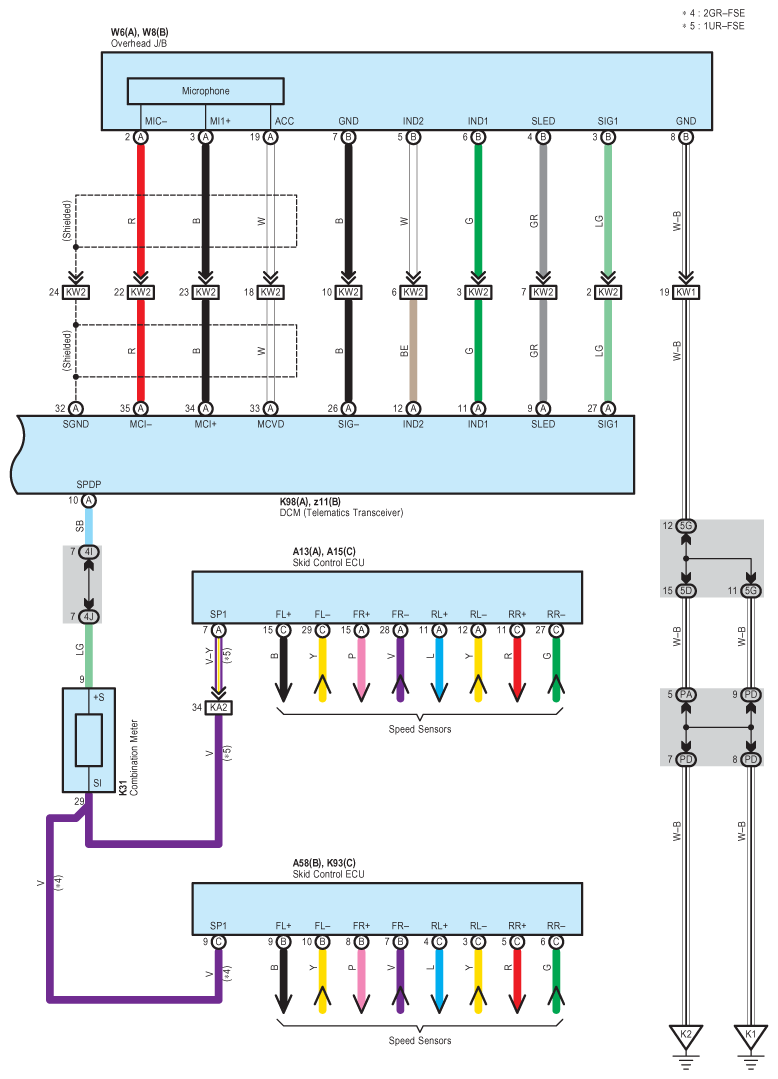

Fig 2: LEXUS ENFORM Or Safety Connect - Circuit Diagram (2 Of 3)

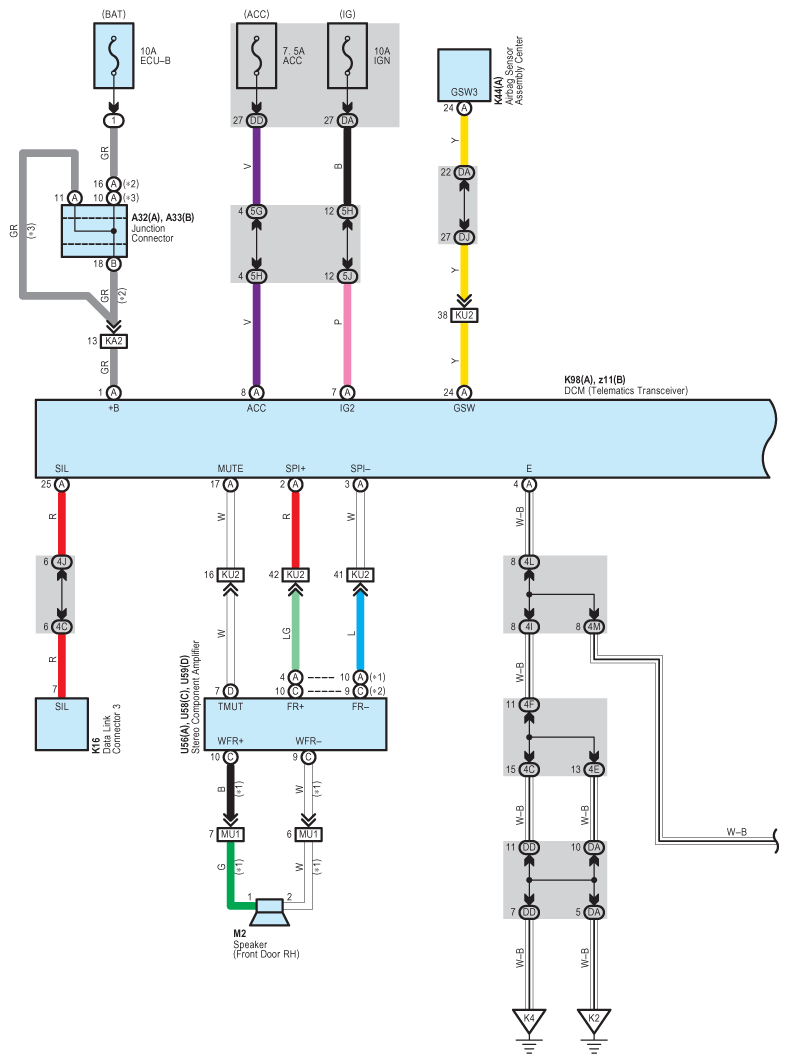

Fig 3: LEXUS ENFORM Or Safety Connect - Circuit Diagram (3 Of 3)
