GS 460
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Shift Lock
›
Notes
Shift Lock: Notes

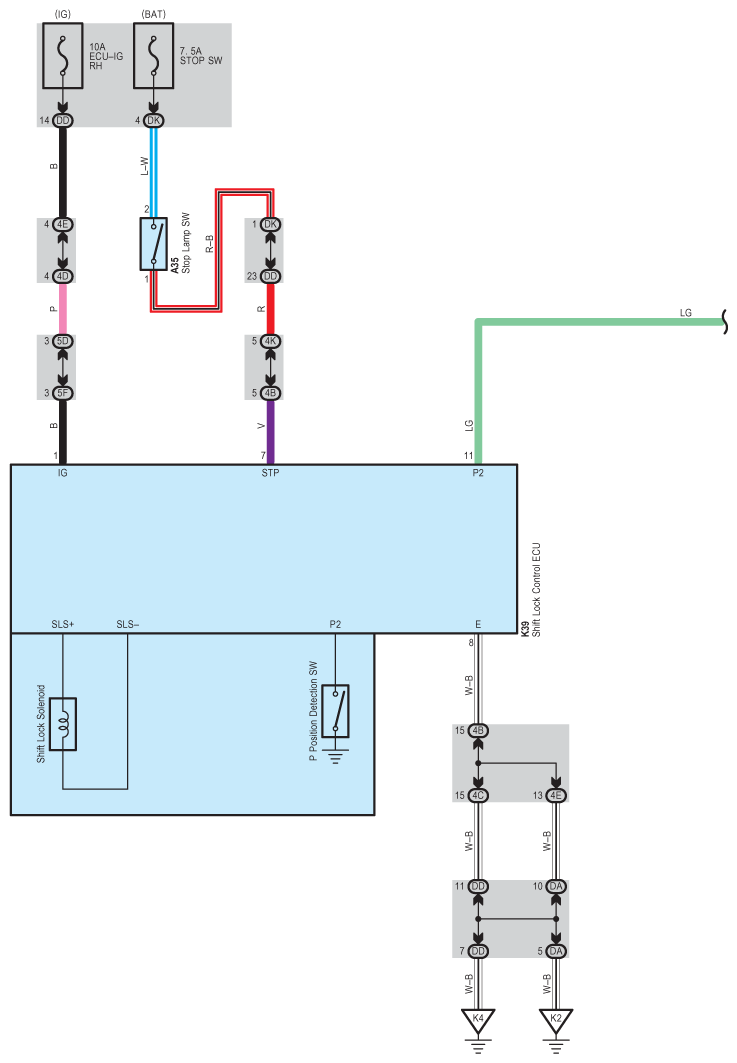

Fig 1: Shift Lock - Circuit Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

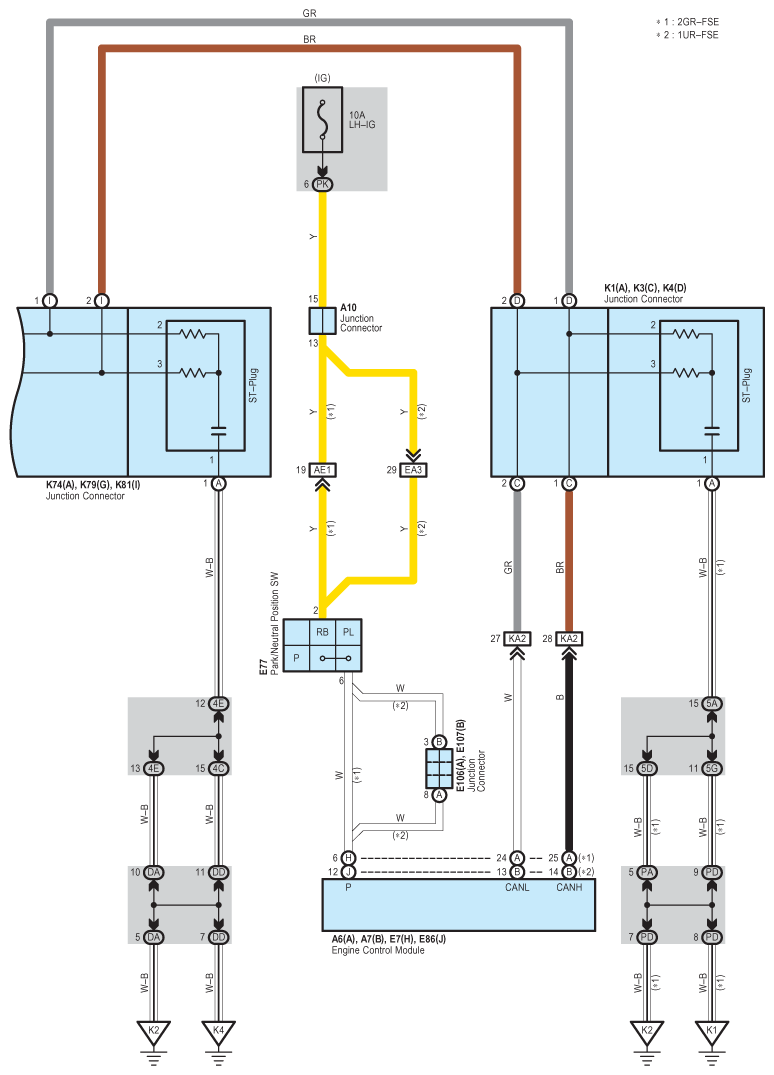

Fig 2: Shift Lock - Circuit Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

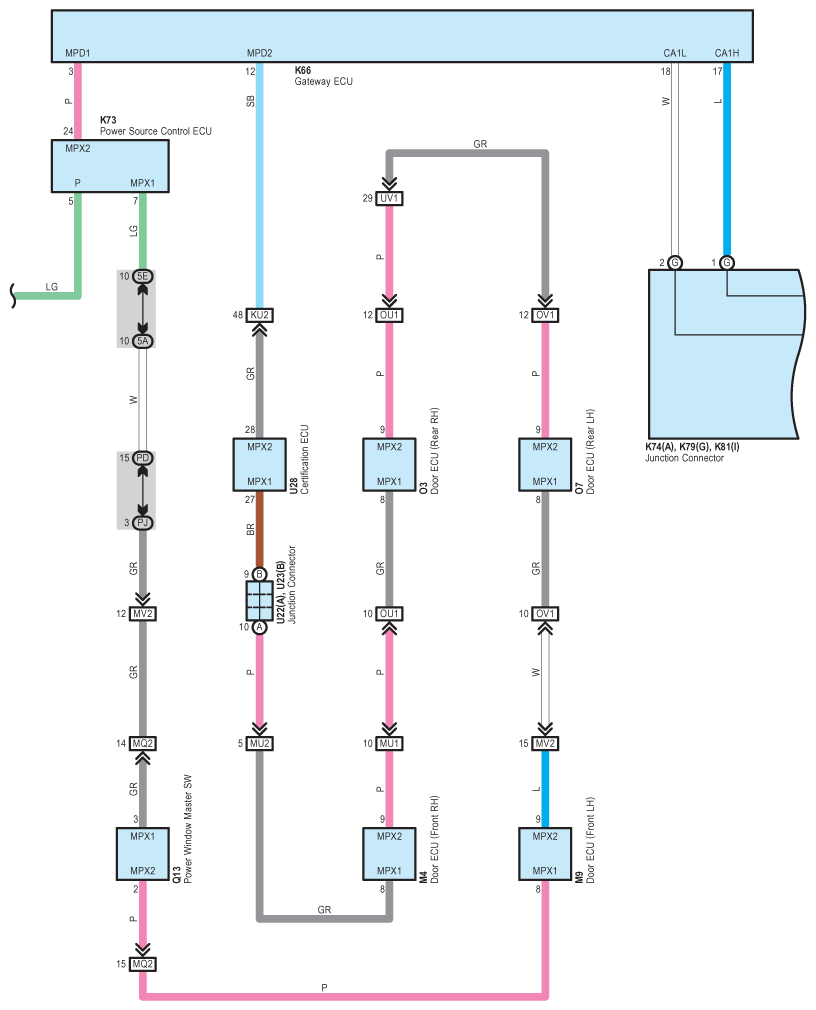

Fig 3: Shift Lock - Circuit Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
