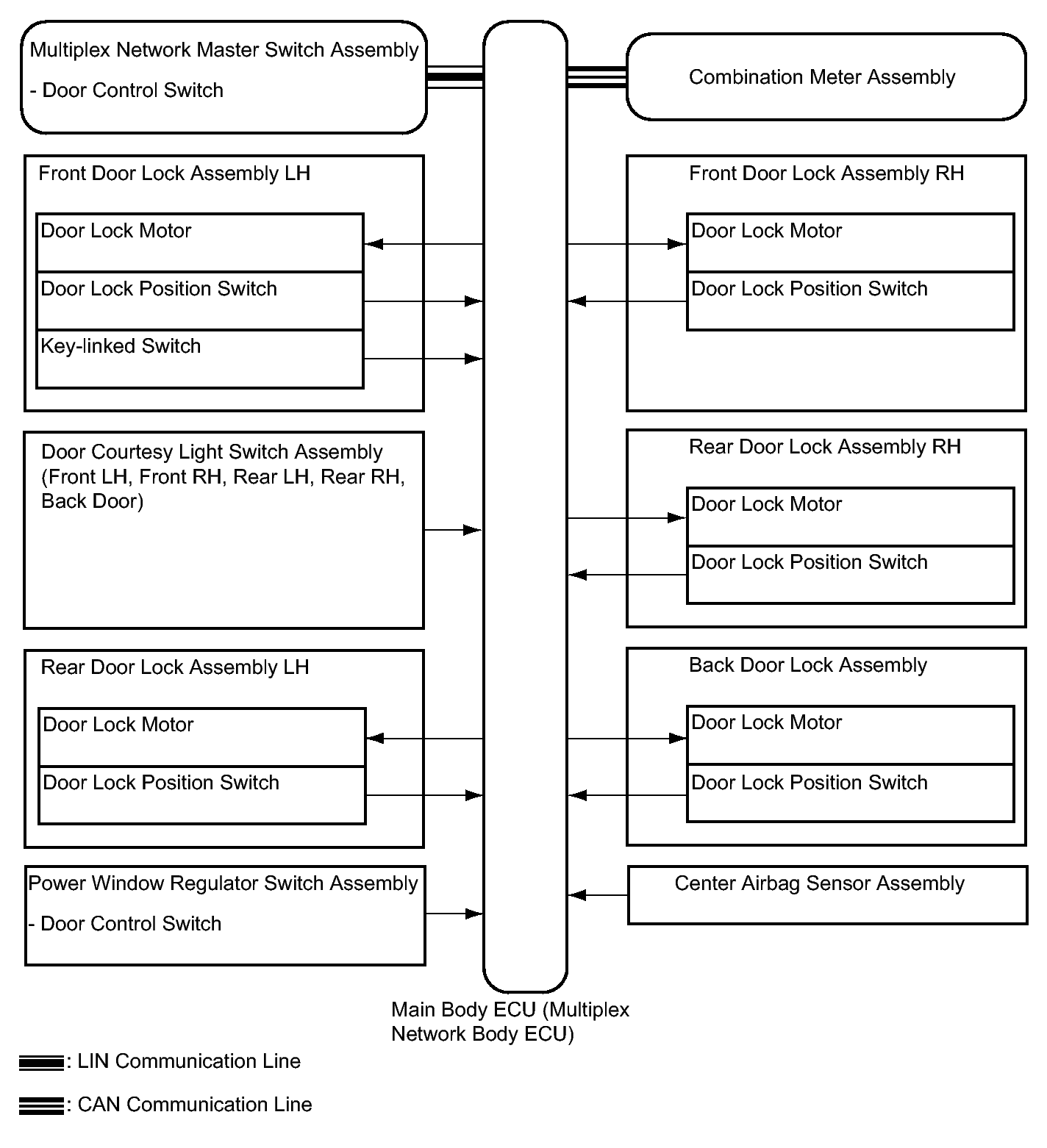

System Diagram
COMMUNICATION TABLE
| Sender | Receiver | Signal | Communication Method |
|---|---|---|---|
| Multiplex network master switch assembly | Main body ECU (Multiplex network body ECU) | Driver side door manual lock switch signal | LIN |
| Combination meter assembly | Main body ECU (Multiplex network body ECU) | Vehicle speed signal | CAN |
