Ground Point: Notes

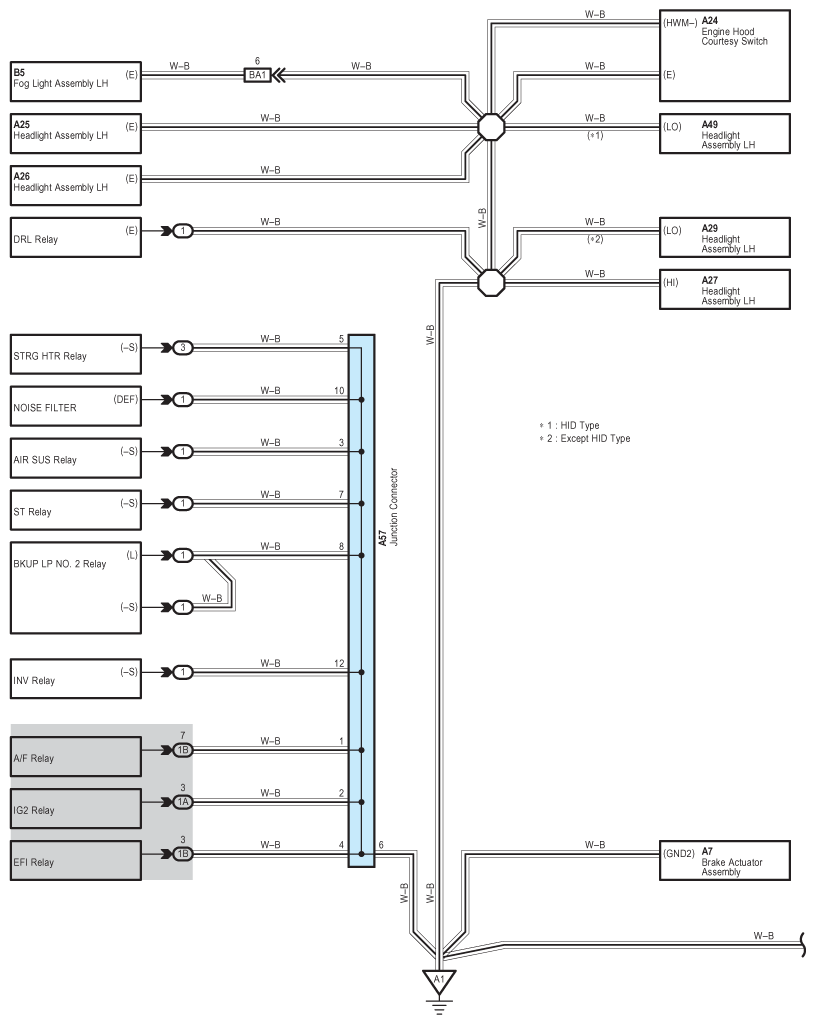

Fig 1: Ground Point - Wiring Diagram (1 Of 16)

G07580864

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

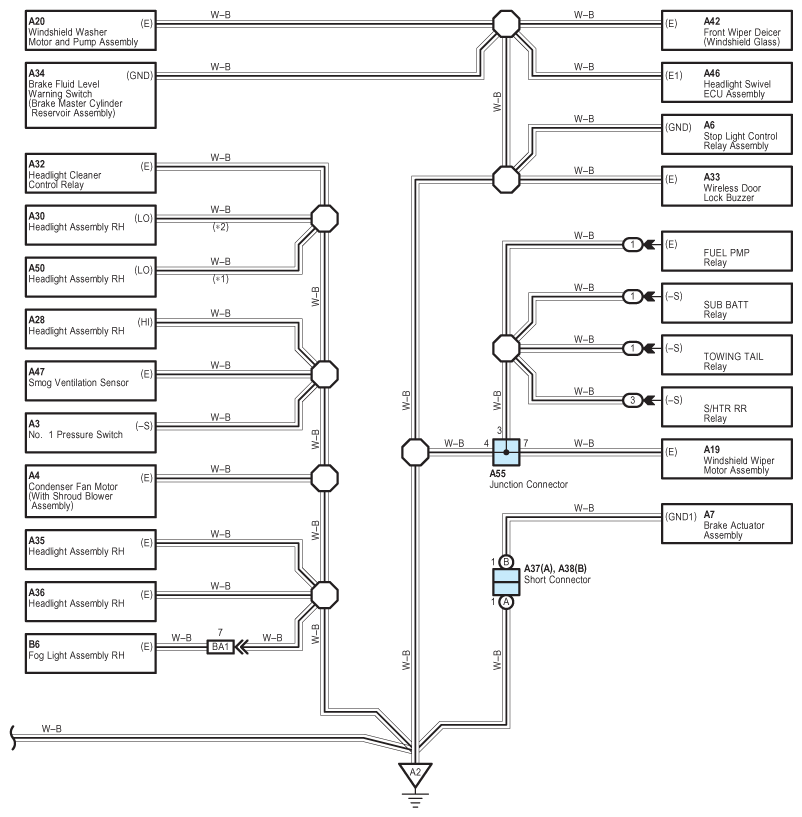

Fig 2: Ground Point - Wiring Diagram (2 Of 16)

G07580865

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

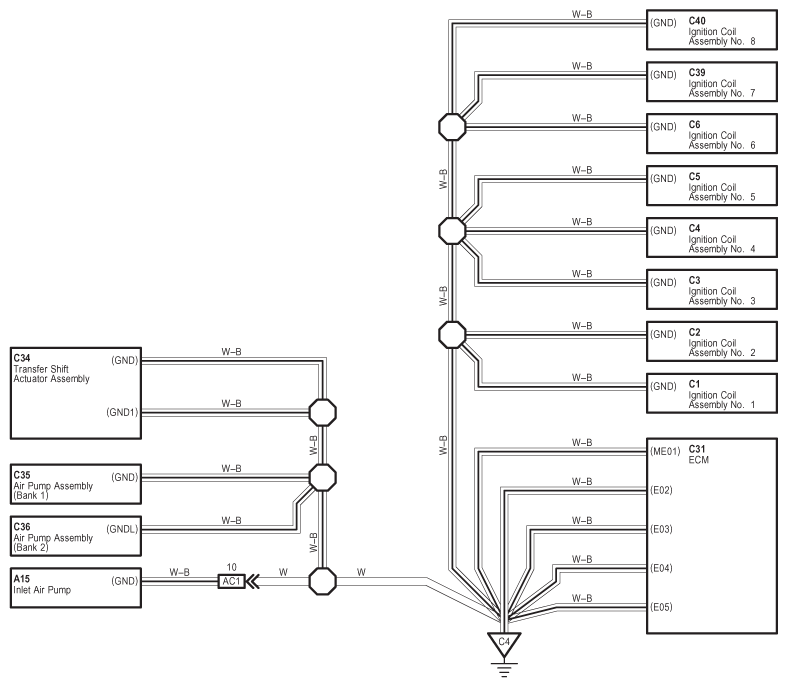

Fig 3: Ground Point - Wiring Diagram (3 Of 16)

G07580866

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

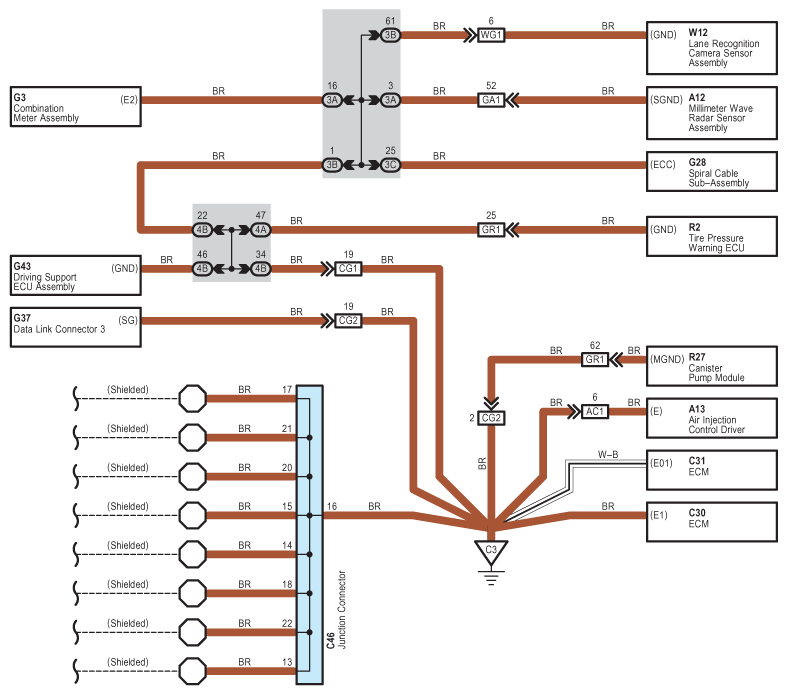

Fig 4: Ground Point - Wiring Diagram (4 Of 16)

G07580867

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

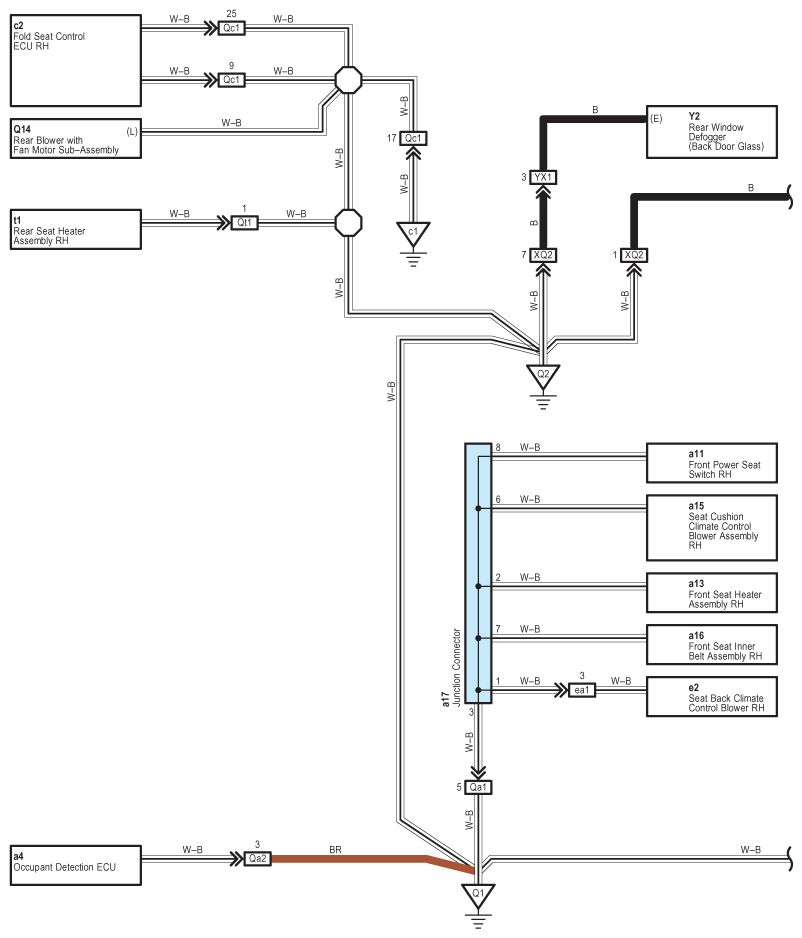

Fig 5: Ground Point - Wiring Diagram (5 Of 16)

G07580868

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

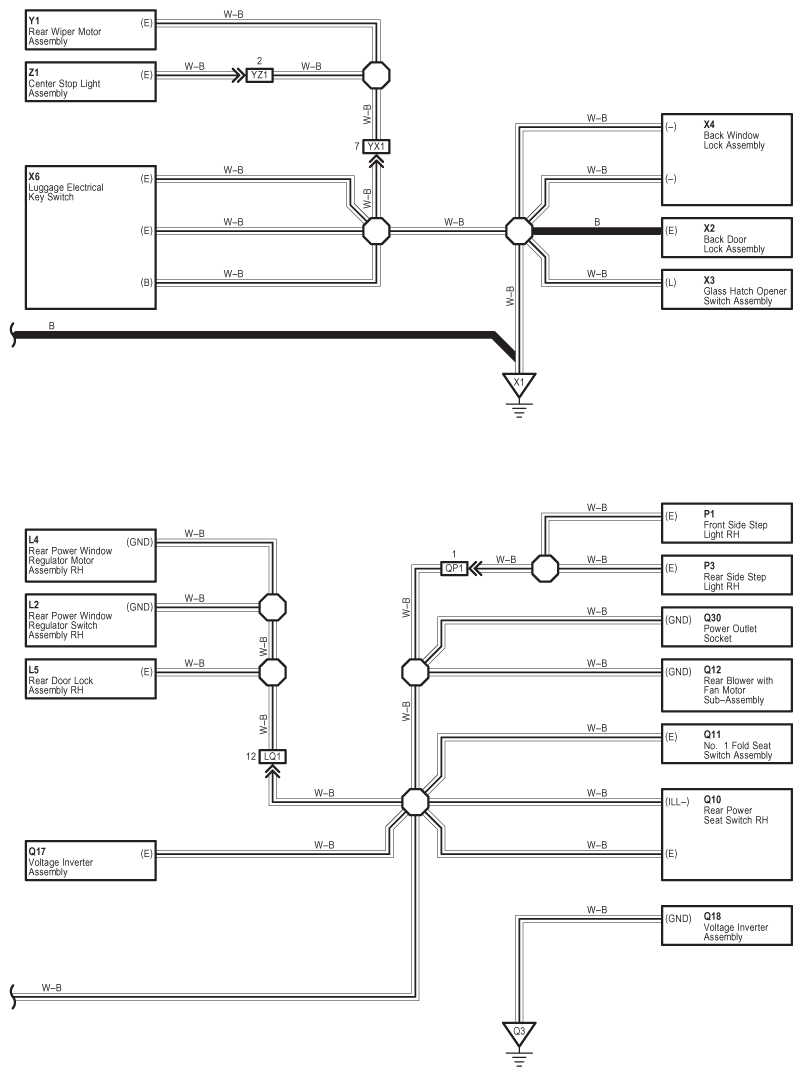

Fig 6: Ground Point - Wiring Diagram (6 Of 16)

G07580869

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Ground Point - Wiring Diagram (7 Of 16)

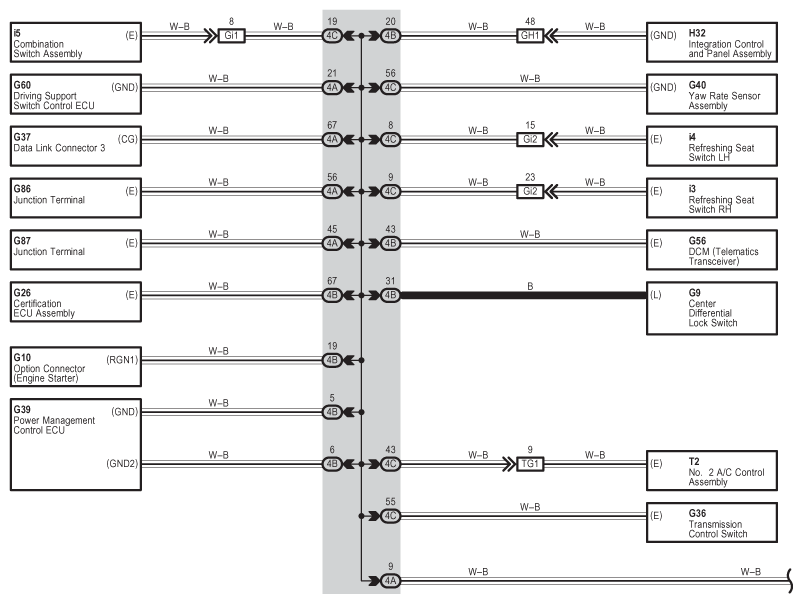

G07580870

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

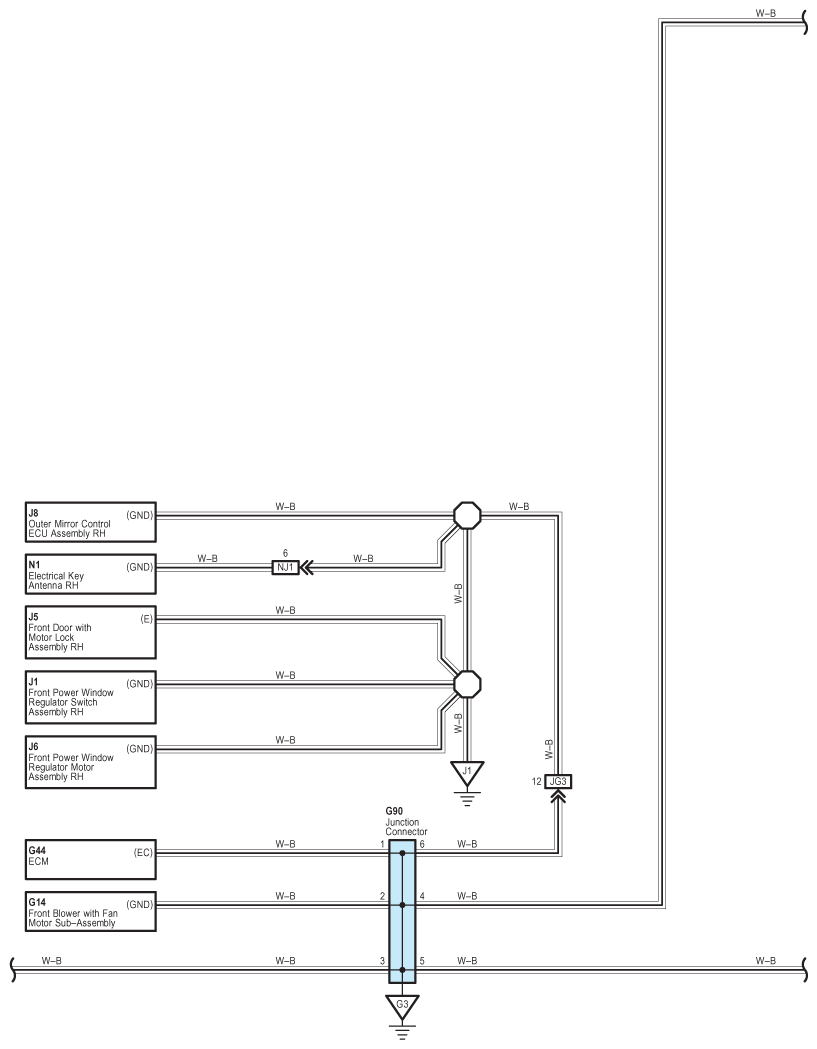

Fig 8: Ground Point - Wiring Diagram (8 Of 16)

G07580871

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

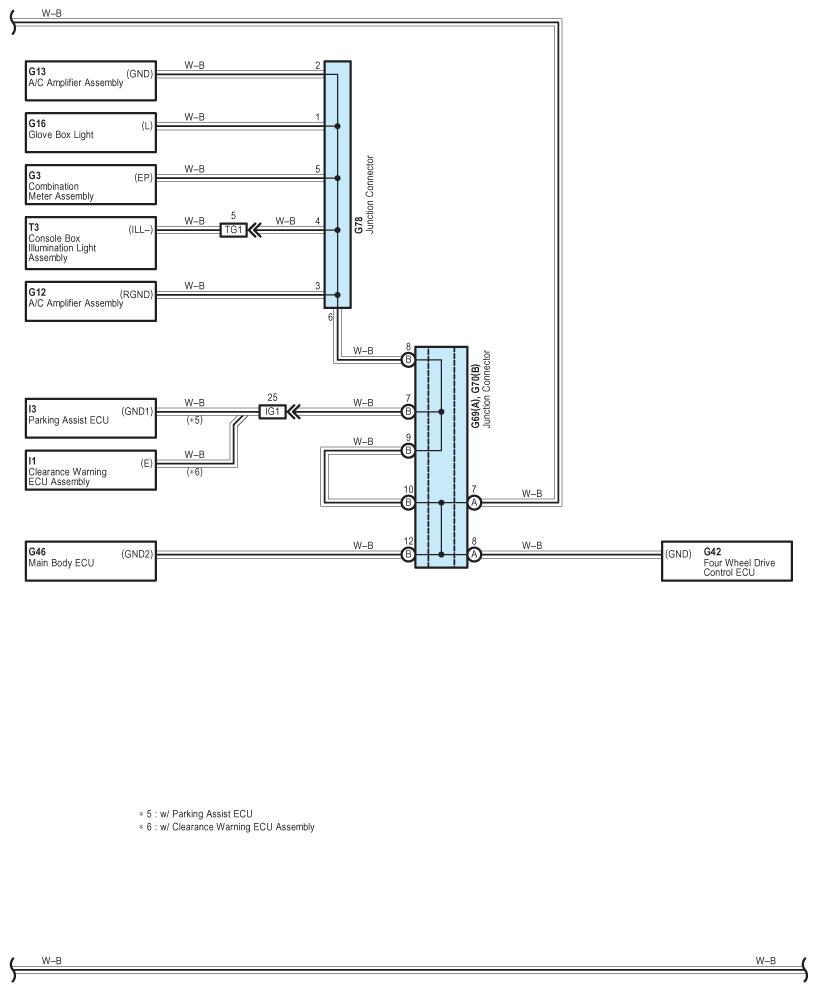

Fig 9: Ground Point - Wiring Diagram (9 Of 16)

G07580872

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

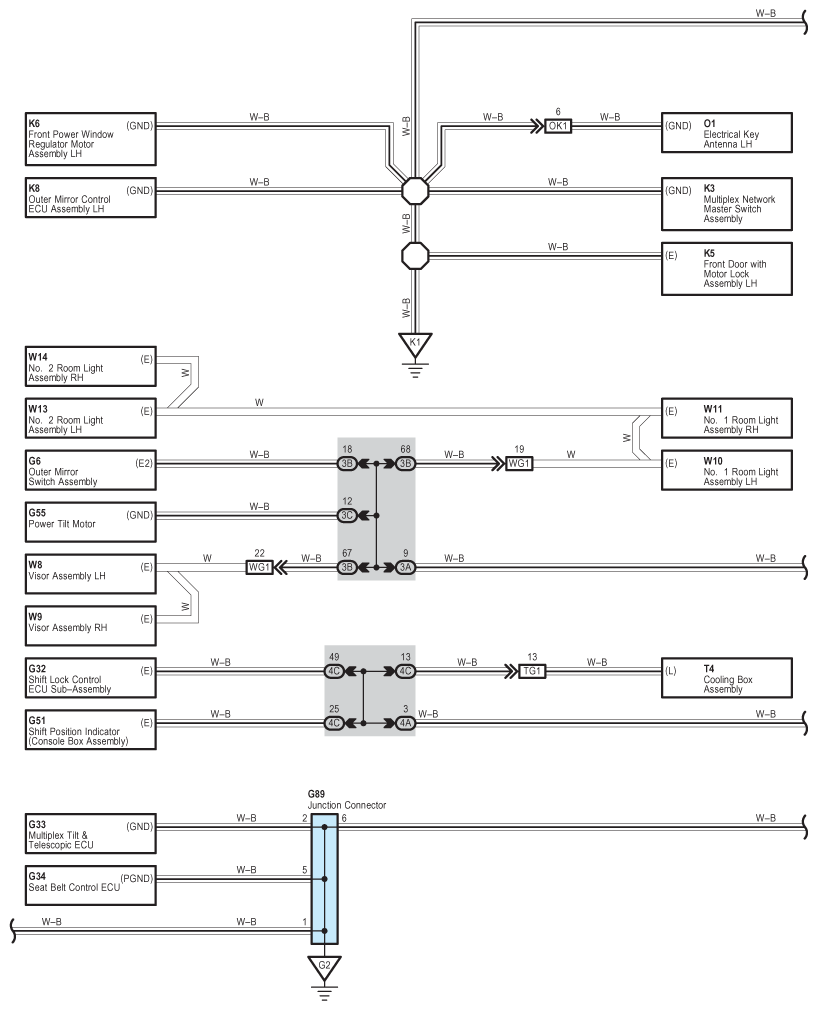

Fig 10: Ground Point - Wiring Diagram (10 Of 16)

G07580873

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

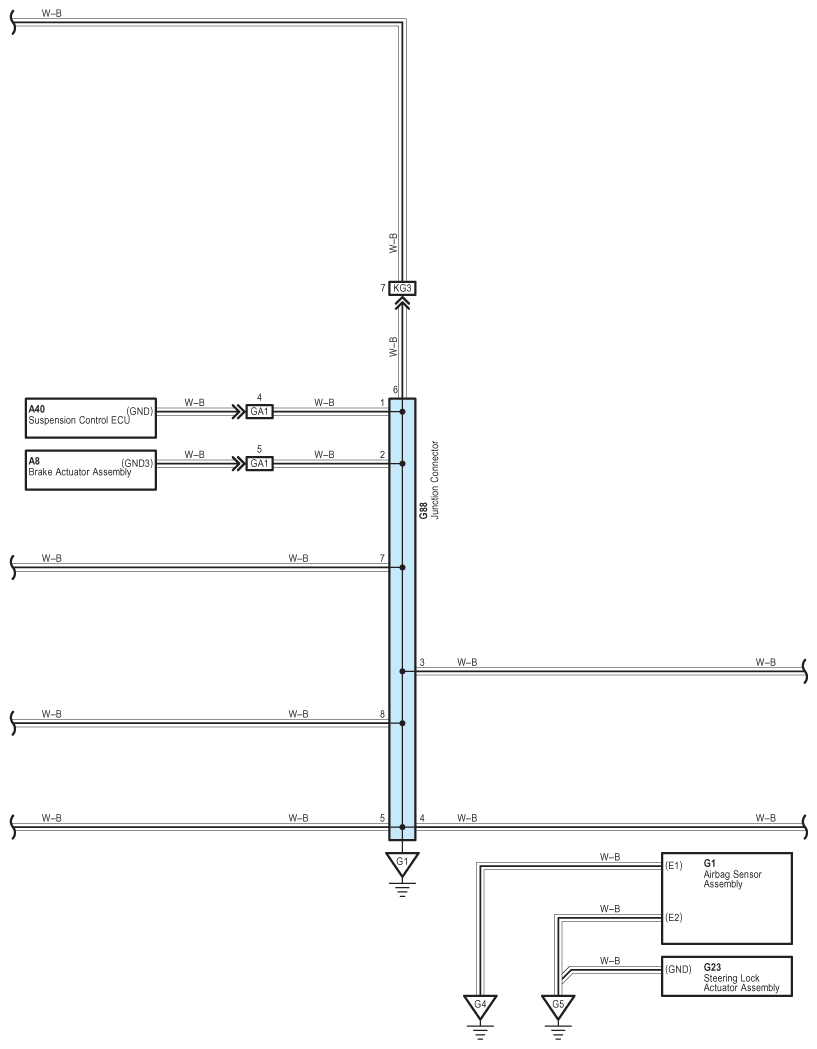

Fig 11: Ground Point - Wiring Diagram (11 Of 16)

G07580874

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

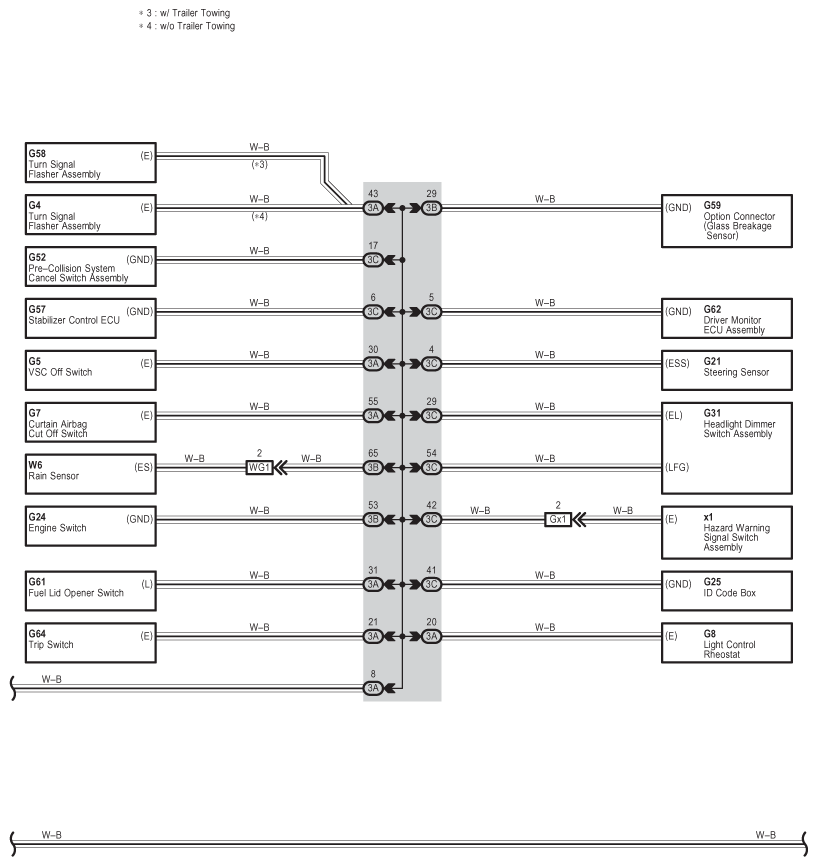

Fig 12: Ground Point - Wiring Diagram (12 Of 16)

G07580875

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

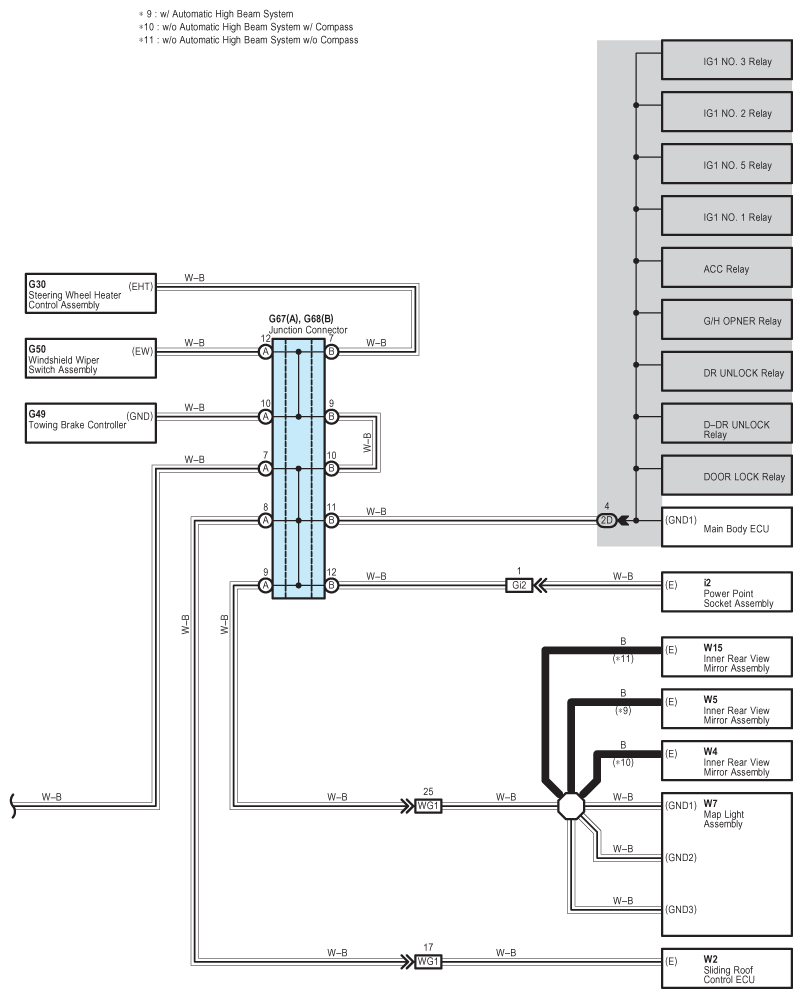

Fig 13: Ground Point - Wiring Diagram (13 Of 16)

G07580876

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

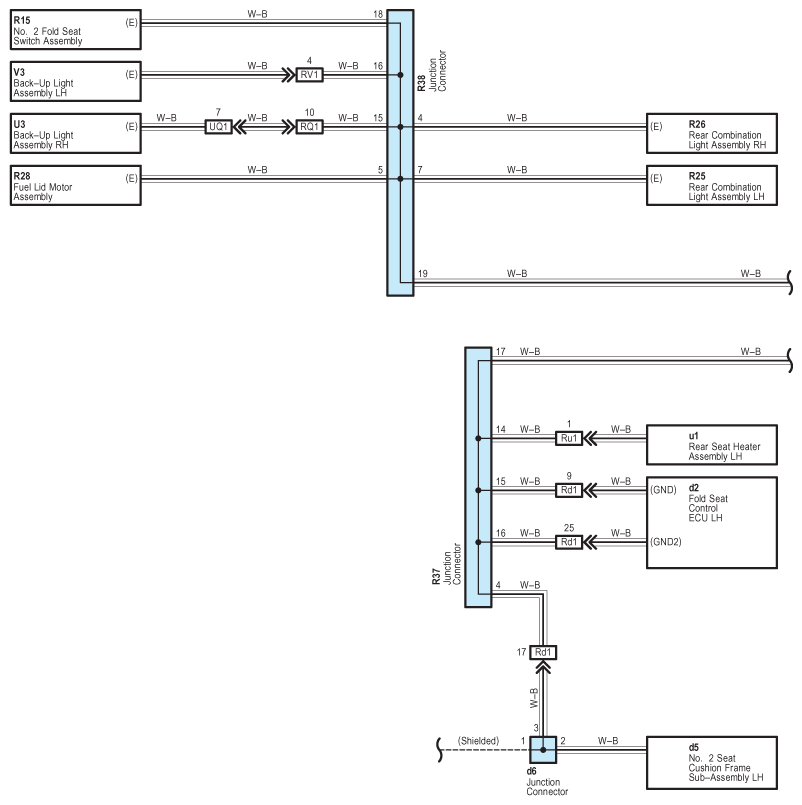

Fig 14: Ground Point - Wiring Diagram (14 Of 16)

G07580877

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

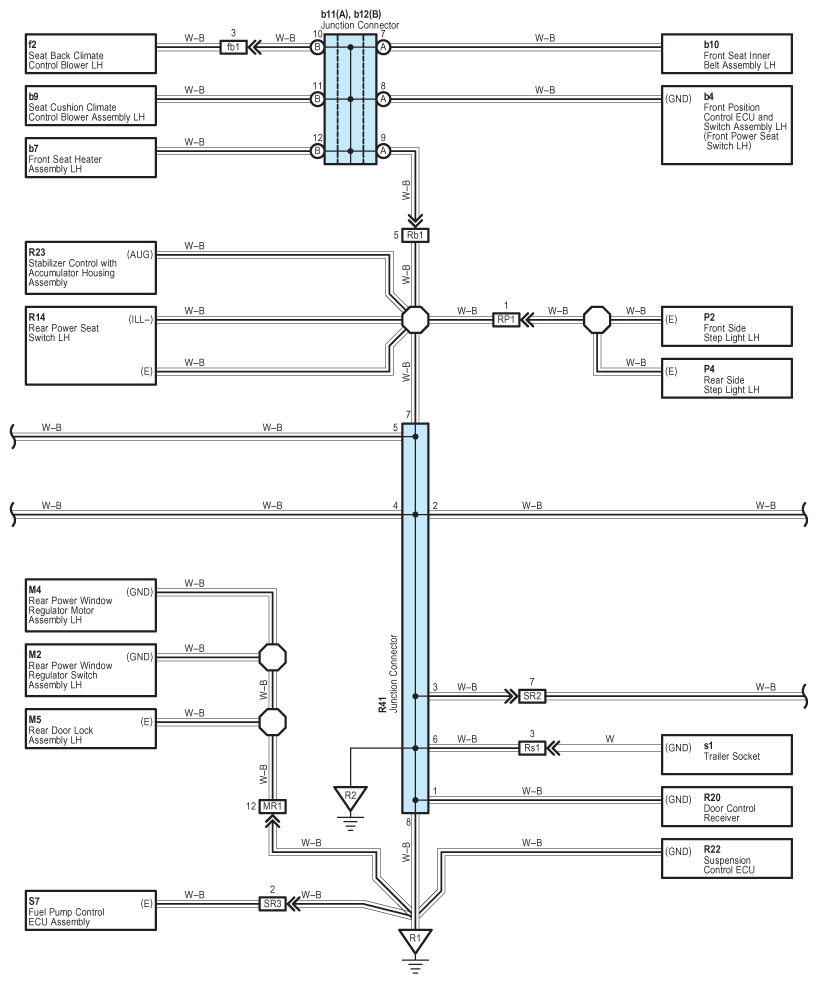

Fig 15: Ground Point - Wiring Diagram (15 Of 16)

G07580878

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

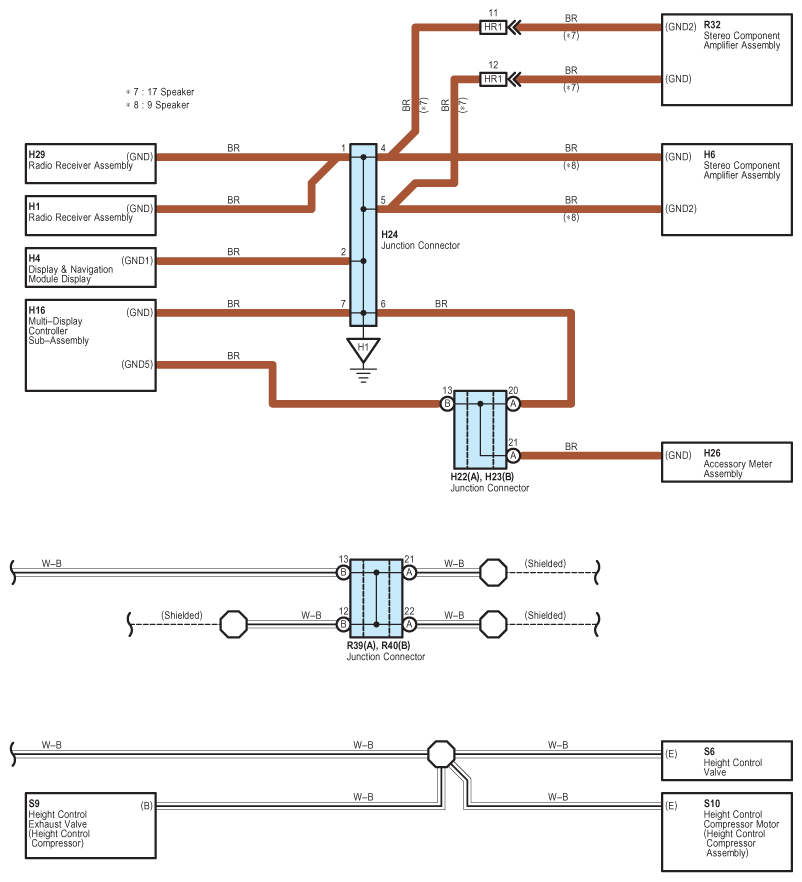

Fig 16: Ground Point - Wiring Diagram (16 Of 16)

G07580879

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
